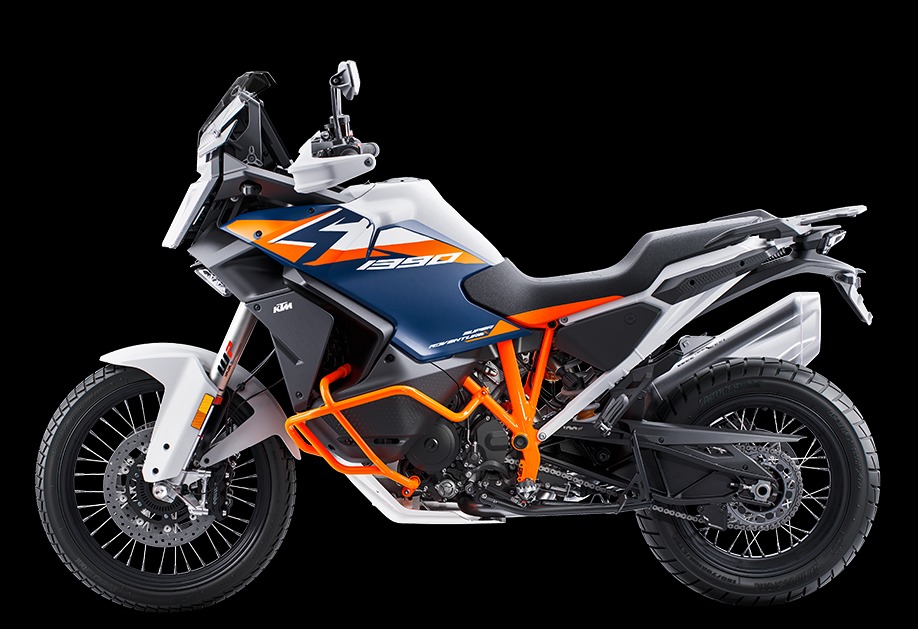

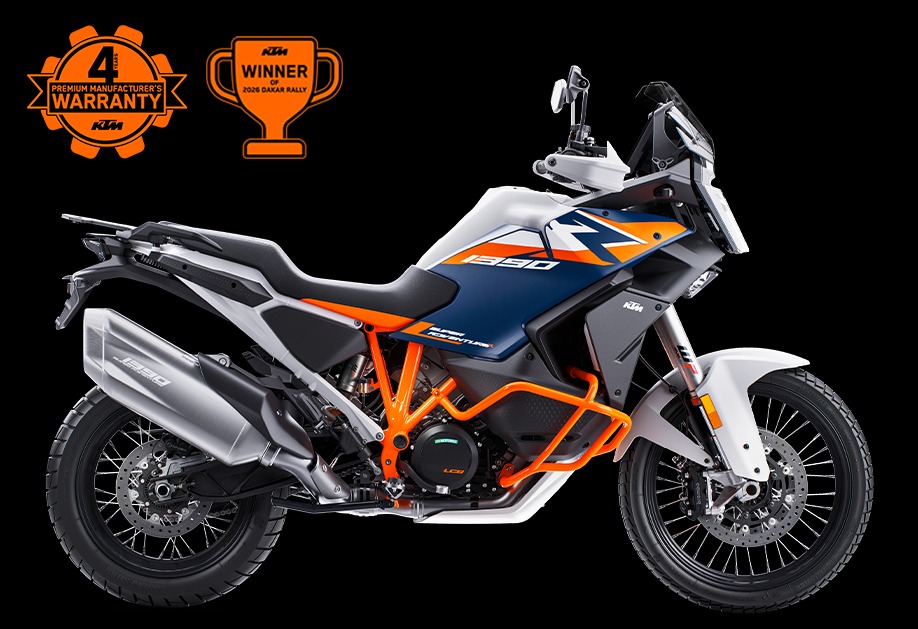

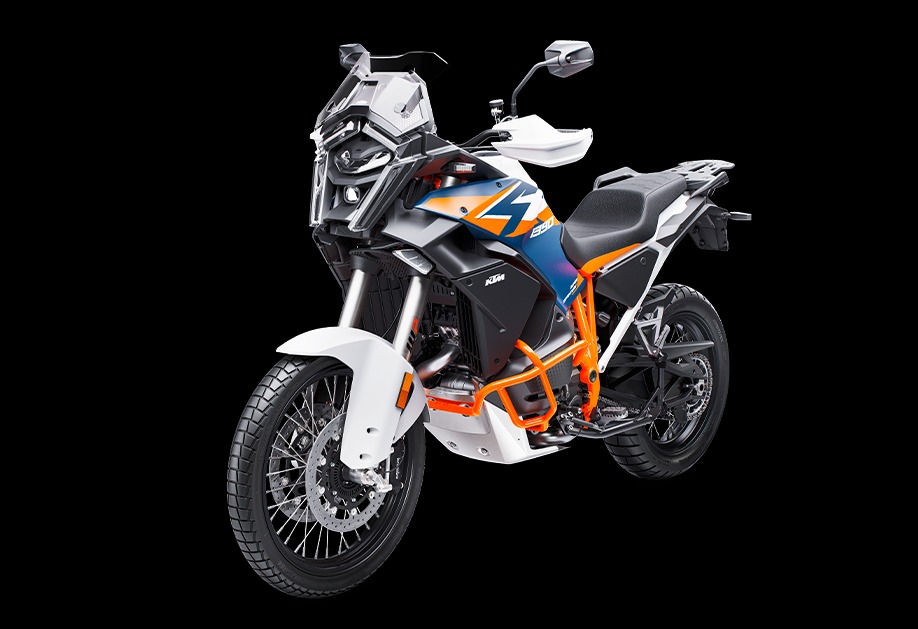

2026 KTM 1390 Super Adventure R
2026 KTM 1390 Super Adventure R for Sale at TeamMoto in QLD, VIC and ACT | Review Specifications, Features & Information
BLAZE NEW TRAILS
Advanced Front Radar
Welcome to the world of advanced Front Radar. Available as an optional extra on the KTM 1390 SUPER ADVENTURE R, Front Radar showcases the latest in technology, allowing you to cover ground quickly and safely when on-route to your ultimate destination. For more information, visit our KTM Tech Guide.
TFT-DISPLAY
Unlike anything you've seen before, this all-new portrait-mount touchscreen 8"" TFT display is a masterclass in intelligent UI design. Featuring an Optically Bonded, anti-glare, anti-fingerprint, and anti-reflex screen, it is a gateway to all the functions and settings within the KTM 1390 SUPER ADVENTURE R. For more information, visit our KTM Tech Guide.
Suspension
The KTM 1390 SUPER ADVENTURE R is fitted with high-performance WP XPLOR suspension, which was co-developed with test rider Quinn Cody at the helm. A WP XPLOR fork with 48 mm inner tubes takes care of business at the front and has been derived from the successful KTM off-road models and features split fork technology. At the rear, is a high-end PDS monoshock, which is fully adjustable in spring preload with an external handwheel, rebound, and compression, including high and low-speed compression damping.
RALLY MODE
As the name suggests, RALLY MODE provides maximum power with slip adjustment. This means riders can choose the level of traction control intervention and the throttle response, with up to 9 levels of slip adjustment. RALLY MODE also allows riders to hoist the front wheel to clear obstacles, while Offroad ABS is activated, allowing the rear to be locked up in tight corners. RALLY MODE is available as an optional extra.
Bodywork
Purposefully designed to feel more compact yet look more muscular, the KTM 1390 SUPER ADVENTURE range boasts a distinctive new look. New front-end bodywork, an LED headlight unit, and tank spoilers all combine to provide important ergonomic functionality and nail that signature KTM Adventure style.
LED Headlight
Turning night to day, an all-new LED headlight unit takes center position on the KTM 1390 SUPER ADVENTURE range. Not only does this provide the SUPER ADVENTURE with a fresh signature stare, but it also illuminates the road ahead with new cornering lights lighting up the bends with a broader illumination.
Engine
| Design | 2-cylinder, 4-stroke, V 75° |
| Displacement | 1350 cm³ |
| Power | 173 PS |
| Torque | 145 Nm |
| Transmission | 6-speed |
| CO2 emissions | 139.5 g/km |
| Cooling | Liquid cooled with water/oil heat exchanger |
| Engine cylinder | Twin cylinder |
| EMS | Keihin EMS with RBW, twin ignition |
| Engine oil | Motorex, SAE 10W-50 |
| Engine stroke | 4-Stroke |
| Silencer material | Stainless steel |
| Silencer type | Silencer |
Chassis
| Front brake disc diameter | 320 mm |
| Rear brake disc diameter | 267 mm |
| Front brake | 2 × Brembo 4-piston, radially mounted caliper, brake disc Ø 320 mm |
| Rear brake | Brembo 2-piston, fixed caliper, brake disc Ø 267 mm |
| Chain | 525 X-Ring |
| Frame design | Chromium-Molybdenum-Steel trellis frame, powder coated |
| Steering head angle | 64.7° |
| Rear subframe design | Aluminium, powder-coated |
| Trail | 112 mm |
| Wheelbase | 1577 mm |
Suspension
| Front suspension | WP XPLOR-USD, Ø 48 mm |
| Rear suspension | WP XPLOR shock absorber with PDS |
| Suspension travel (front) | 240 mm |
| Suspension travel (rear) | 240 mm |
| Front suspension adjustment | Compression, rebound and preload adjustment |
| Rear suspension setting | Compression (high and low speed), rebound and preload adjustment |
Dimensions
| Seat height | 880 mm |
| Wheelbase | 1577 ± 15 mm |
| Tank capacity (approx.) | 23 l |
| Ground clearance | 242 mm |
| Weight (without fuel) | 231 kg |
| Weight fully fueled | 248 kg |
| Wheelbase tolerance | 15 mm |
| Front wheel diameter | 21 " |
| Rear wheel diameter | 18 " |
| Front wheel width | 2.5 " |
| Rear wheel width | 4.25 " |
| Wheels | 2.5 × 21" ; 4.25 × 18" |
| Wheels | Spoked wheels with aluminium rims |
