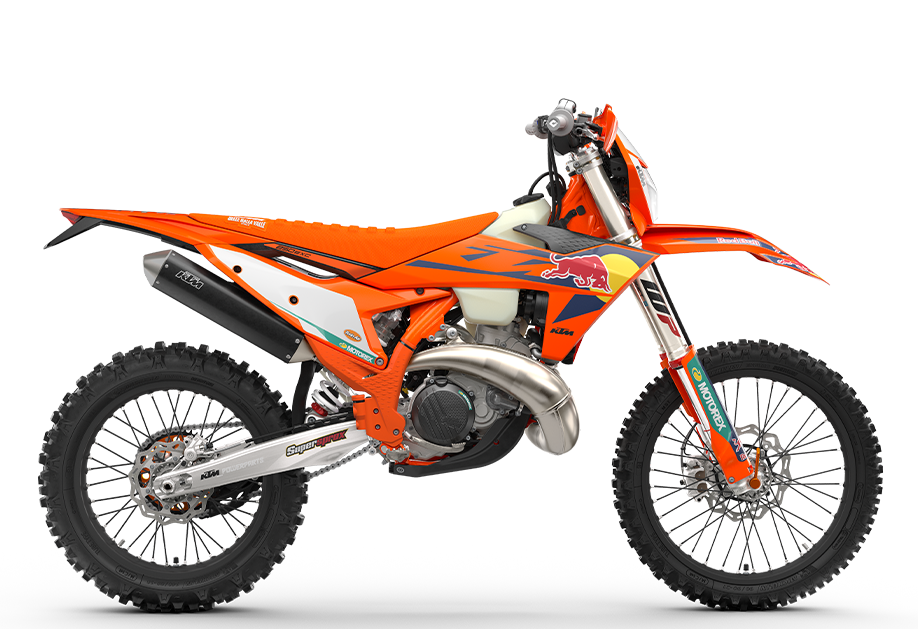

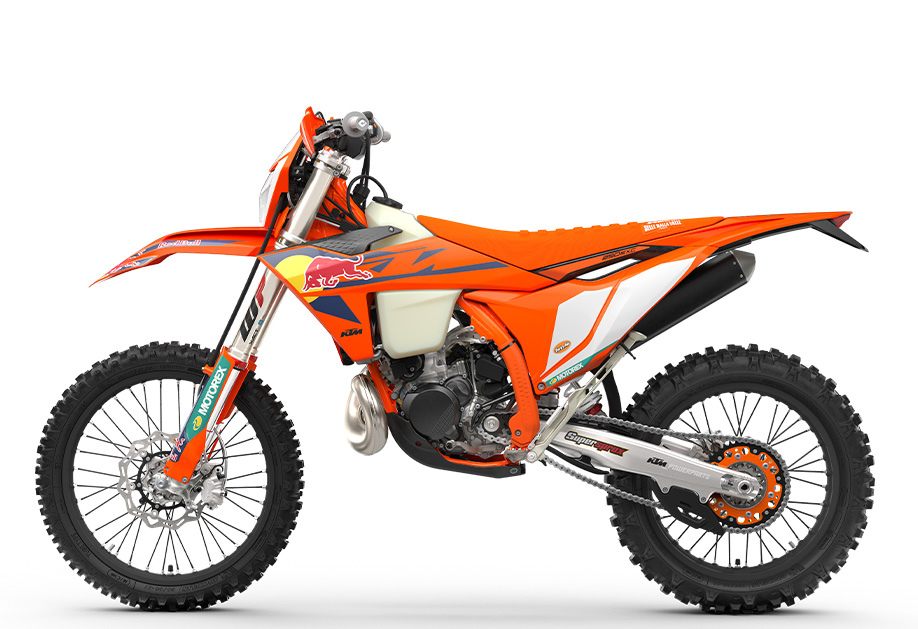

2025 KTM 250 EXC CHAMPION EDITION
2025 KTM 250 EXC CHAMPION EDITION for Sale at TeamMoto in QLD, VIC and ACT | Review Specifications, Features & Information
Switchgear
On the right side of the handlebar, you'll find a new, sleeker start/stop switch, and on the left, a Mapping Select switch will allow riders to choose between Map 1 or Map 2, standard on all KTM EXC CHAMPIONS EDITION models.
Graphics
Graphics Just like it says in the tin, the KTM EXC CHAMPIONS EDITION range takes its inspiration from our KTM Red Bull Factory Racing championship-winning machines. Boasting an unmatched READY TO RACE look - and backed up by a list of top-shelf parts - this is the choice of champions.
Subframe
An ultra-light lightweight subframe takes charge at the rear of the main frame, featuring a 2-part polyamide and reinforced aluminum construction. With the help of computational dynamics, a specific rigidity was engineered into the subframe, to deliver outstanding handling and rider feedback. This compact subframe design also boasts the the ability to bend and flex in the event of a crash, rather than break, with the subframe fully integrating electronic components, without any extra need for brackets, holders, or unnecessary fixtures.
LED Headlight
Lighting the way forward, the 2025 KTM EXC range features an LED headlight unit and light mask. The mask itself features improved triple clamp protection against roost and does away with the rubber mounting straps for improved fitment. Most importantly, the LED lighting unit provides serious illumination, making riding in the dark a completely new experience.
WP XACT Closed-cartidge Fork
A 48 mm WP XACT Closed Cartridge spring fork provides fast and consistent damping, with optimized oil flow. This means these forks ensure unmatched performance at every level. Fork protection rings also protect against dirt intrusion. But, best of all, the fork allows for full adjustment of compression and rebound without the need for any tools.
Battery & Wiring Harness
As with the rest of the 2-stroke KTM EXC range, the KTM 250 EXC CHAMPION EDITION is fitted with a proven and reliable electric start system. Powered by an ultra-lightweight 2 Ah lithium-ion starter battery, it provides a safe, reliable starting time and time again, while the wiring harness has most of the electrical components carefully positioned under the seat for easy accessibility.
Engine
-
Design
1-cylinder, 2-stroke engine
-
Displacement
249 cm³
-
Transmission
6-speed
-
Fuel-mixture generation
Keihin EFI, throttle body 39 mm
-
EMS
Vitesco Technologies EMS
-
Clutch primary drive teeth
72
-
Primary drive
26:72
-
Clutch
Wet, DDS multi-disc clutch, Brembo hydraulics
-
Engine cylinder
Single cylinder
-
Engine stroke
2-Stroke
Chassis
-
Frame design
Central double-cradle-type 25CrMo4 steel
-
Front brake
Disc brake
-
Rear brake
Disc brake
-
Rear subframe design
Aluminum-reinforced polyamide
-
Chain
520, X-Ring
Suspension
-
Front suspension
WP XACT Closed Cartridge Ø 48 mm
-
Rear suspension
WP XPLOR shock absorber with PDS
-
Suspension travel (front)
300 mm
-
Suspension travel (rear)
310 mm
Dimensions
-
Seat height
963 mm
-
Ground clearance
347 mm
-
Tank capacity (approx.)
9 L
-
Weight (without fuel)
104.9 kg
