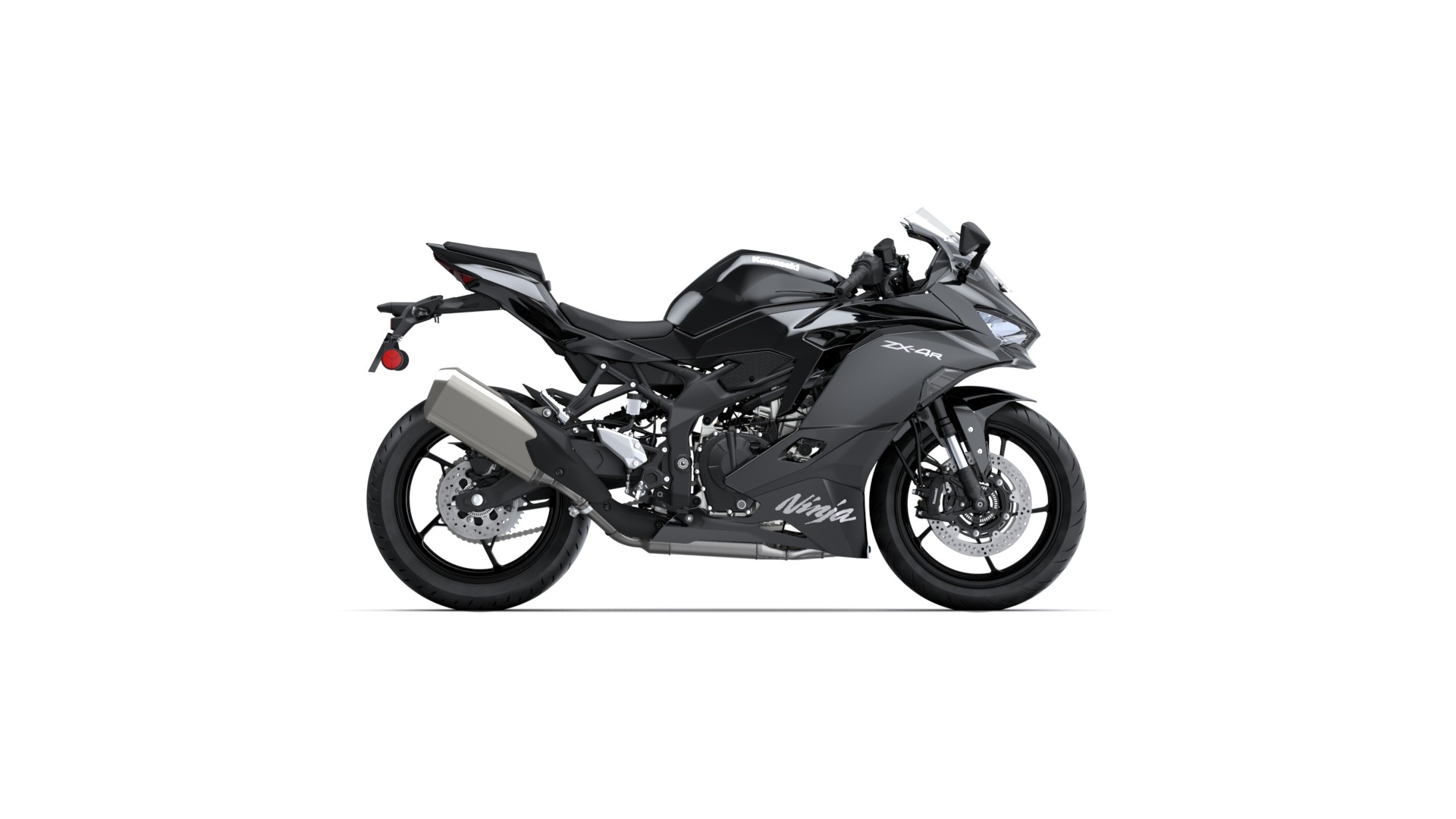

2026 NINJA ZX-4R
Kawasaki 2026 NINJA ZX-4R for Sale at TeamMoto in QLD, VIC and ACT | Specifications and Review Information
Into a category filled with 400cc sport models, Kawasaki introduces a revolutionary supersport model. The Ninja ZX-4R mounts a 399 cc In-Line Four engine with class-leading performance in a compact chassis with proportions similar to smaller-displacement models. On the track or on the street, experiencing the exhilaration of the Ninja ZX-4R’s unprecedented power, intoxicating high-rpm wail, and its sharp, nimble handling will surely awaken the dormant supersport within you.
FEATURING:
- HIGH-REVVING 399 cc IN-LINE FOUR ENGINE
- WORLDSBK-INSPIRED CHASSIS DESIGN
- HIGH-PERFORMANCE SUSPENSION AND BRAKE COMPONENTS
- HIGH-GRADE ELECTRONICS AND FEATURES
- FIERCE NINJA ZX STYLING
All-New In-Line Four Engine
The new 399 cc liquid-cooled DOHC In-Line Four engine pushes technological boundaries to comfortably top the 400cc class. Developed with know-how gained from other Ninja ZX models, the high-performance engine offers class-leading power and a rev-range that extends beyond 15,000 rpm.
High-revving Performance
With a redline beyond 15,000 rpm indicating its screaming potential, this engine features racing-inspired technology also found on the Ninja ZX-10R. The high revs deliver a distinctive, exhilarating engine sound characteristic of a high-performance Kawasaki In-Line Four.
Enhanced Power. Distinctive ZX Look
Complementing the centrally positioned Ram Air intake, the side Ram Air duct, designed with feedback from the Ninja H2, routes air to the air cleaner box and contributes to stellar performance. Its aggressive look and intake sound add to the screaming In-Line Four experience, and visually identify the bike as one of Kawasaki's Ninja ZX models.
World Superbike Inspired Chassis Design
Key chassis dimensions (centre of gravity position, swingarm pivot position, engine axis positions, caster angle, etc) were inspired by Kawasaki's World Superbike Ninja ZX-10RR racer, bringing WorldSBK chassis design thinking to the 400cc class.
Trellis Frame with Optimised Rigidity Balance
Designed using Kawasaki's advanced dynamic rigidity analysis, this trellis frame made from high-tensile steel delivers the required balance of strength and chassis flex to achieve the Ninja ZX-4R's nimble supersport-style handling.
| Maximum Power | 55.0 kW (75 PS) / 14,500 rpm |
| Maximum Power with Ram Air | 56.7 kW (77 PS) / 14,500 rpm |
| Maximum Torque | 37.6 Nm (3.8 kgfm) / 12,500 rpm |
| Engine | 4-stroke In-Line Four |
| Displacement | 399 cc |
| Bore x Stroke | 57.0 x 39.1 mm |
| Compression Ratio | 12.3:1 |
| Valve System | DOHC, 16 valves |
| Fuel System | Fuel injection: Ø34 mm x 4 |
| Ignition | Digital |
| Starting | Electric |
| Cooling | Liquid-cooled |
| Lubrication | Forced lubrication, wet sump |
| Transmission | 6-speed, return |
| Primary Reduction Ratio | 2.029 (69/34) |
| 1st Gear Ratio | 2.929 (41/14) |
| 2nd Gear Ratio | 2.056 (37/18) |
| 3rd Gear Ratio | 1.619 (34/21) |
| 4th Gear Ratio | 1.333 (32/24) |
| 5th Gear Ratio | 1.154 (30/26) |
| 6th Gear Ratio | 1.037 (28/27) |
| Final Reduction Ratio | 3.429 (48/14) |
| Clutch | Wet multi-disc, manual |
| Final Drive | Chain |
| Frame | Trellis, high-tensile steel |
| Front Suspension | Ø37 mm inverted fork (SFF-BP) with top-out springs |
| Rear Suspension | Horizontal Back-link, gas-charged shock with spring preload adjustability |
| Front Wheel Travel | 120 mm |
| Rear Wheel Travel | 112 mm |
| Rake | 23.5° |
| Trail | 97 mm |
| Steering Angle (L/R) | 35° / 35° |
| Front Tyre | 120/70ZR17M/C (58W) |
| Rear Tyre | 160/60ZR17M/C (69W) |
| Front Brake/s | Dual semi-floating Ø290 mm discs |
| Front Caliper/s | Dual radial-mount, monobloc, opposed 4-piston |
| Rear Brake | Ø220 mm disc |
| Rear Caliper | Single-piston |
| Dimensions (LxWxH) | 1,990 x 765 x 1,110 mm |
| Wheelbase | 1,380 mm |
| Road Clearance | 135 mm |
| Seat Height | 800 mm |
| Curb Weight* | 188 kg |
| Estimated Dry Weight** | 174 kg |
| Fuel Capacity | 15 litres |
| Model Code | ZX400PTFNN |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). **Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied)..
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner's Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.
Specifications subject to change.
