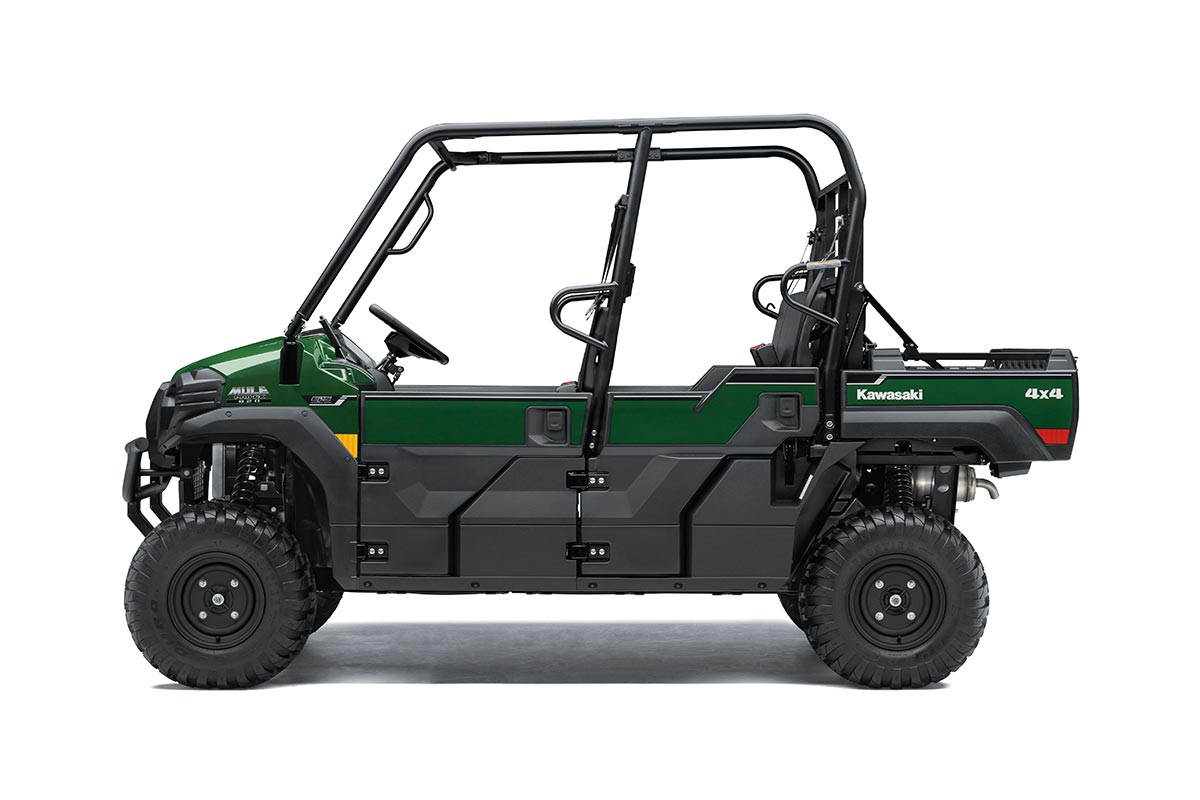

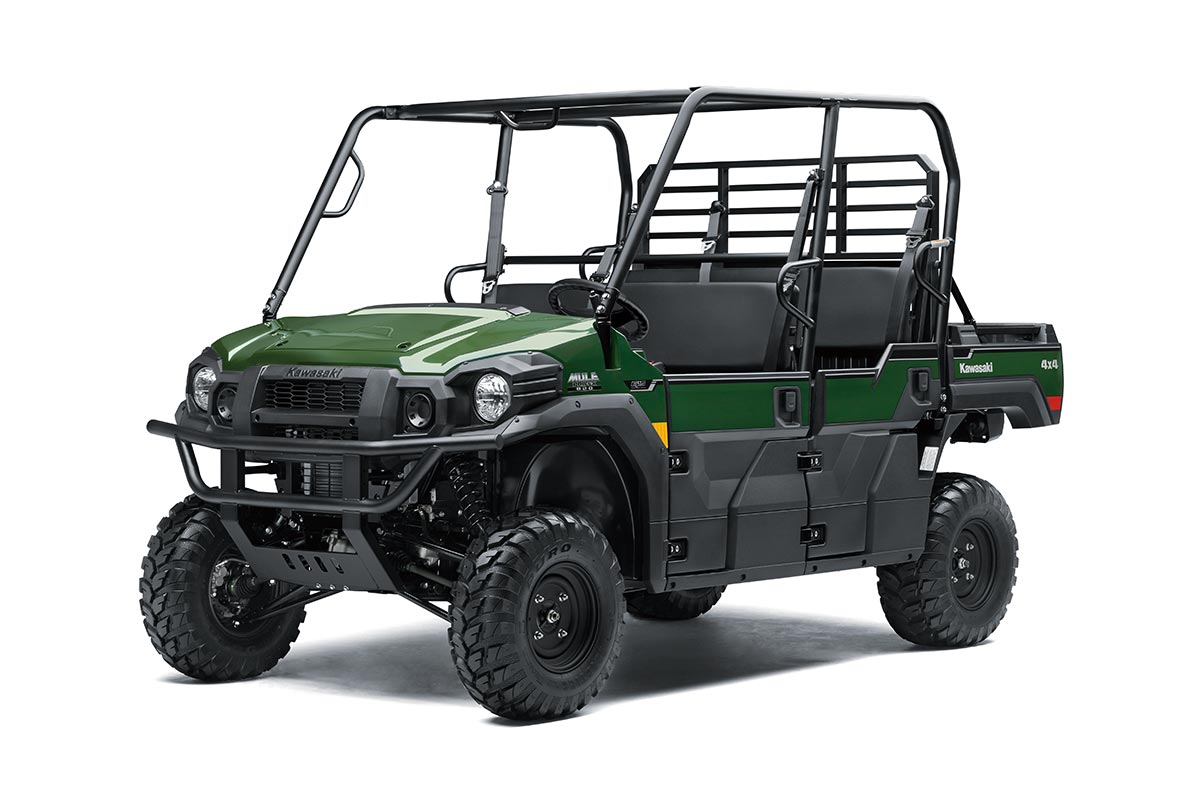

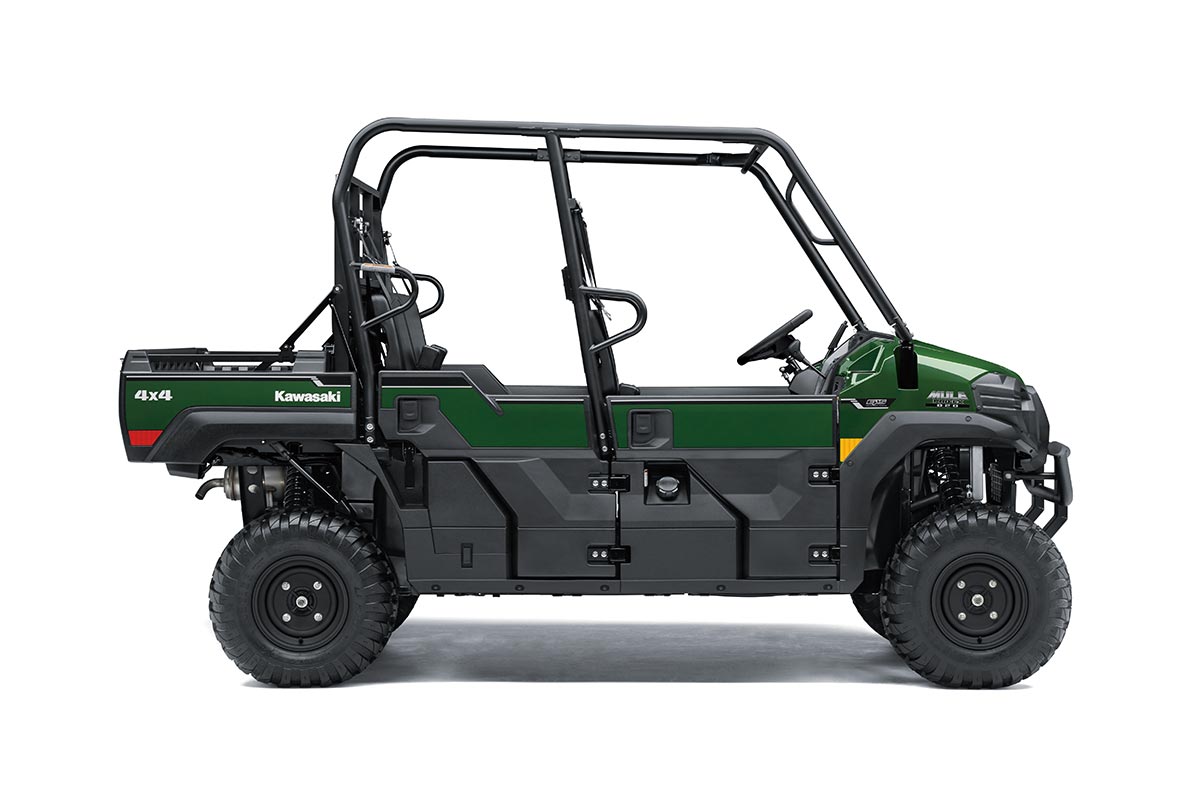

2026 MULE PRO-FXT 820
2026 MULE PRO-FXT 820
3- TO 6-PASSENGER TRANS CAB SYSTEM
The MULE PRO-FXT 820 side x side is a full-size, high-capacity vehicle featuring a 3- to 6-passenger Trans Cab system. Strong enough for work and play, this side x side has an impressive hauling and towing capability, even in six-passenger mode. With the ability to move people and payloads, the MULE PRO-FXT 820 can do it all.
FEATURING:
- 3- to 6-passenger Trans Cab System
- 812 cc, 3-cylinder, 4-stroke engine
- 1-ton (907 kg) towing capacity
- Independent front and rear suspension
Timberline Green
| Maximum Power | 35 kW {48 PS} / 5,500 rpm |
| Maximum Torque | 65 Nm {6.6 kgfm} / 3,500 rpm |
| Engine | 4-stroke In-Line 3-cylinder |
| Displacement | 812 cc |
| Bore x Stroke | 72.0 x 66.5 mm |
| Compression Ratio | 9.5:1 |
| Valve System | DOHC, 4 valves per cylinder |
| Fuel System | Fuel injection: ø34 mm x 1 |
| Ignition | Battery & coil |
| Starting | Electric |
| Cooling | Liquid-cooled |
| Lubrication | Forced lubrication, wet sump |
| Transmission | Dual range (high/low) CVT with reverse |
| Primary Reduction Ratio | 3.33 ~ 0.70 (belt converter) |
| Gear Ratio: Forward (High) | 1.803 (34/33 x 35/20) |
| Gear Ratio: Forward (Low) | 3.580 (45/22 x 35/20) |
| Gear Ratio: Reverse | 2.779 (27/17 x 35/20) |
| Final Reduction Ratio: Front | 6.382 (31/17 x 35/10) |
| Final Reduction Ratio: Rear | 6.245 (31/21 x 55/13) |
| Final Drive | 2WD/4WD, shaft, dual-mode differential |
| Frame | Ladder type, tubular steel |
| Front Suspension | Double wishbone |
| Rear Suspension | Double wishbone |
| Front Wheel Travel | 222 mm |
| Rear Wheel Travel | 217 mm (left), 220 mm (right) |
| Steering | Rack and pinion with Electric Power Steering |
| Rake | 4.4° |
| Steering Angle (L/R) | 40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT) |
| Front Tyres | 26 x 9.00R12 4PR |
| Rear Tyres | 26 x 11.00R12 4PR |
| Front Brakes | Dual ø212 mm discs |
| Front Calipers | Two-piston |
| Rear Brake/s | Dual ø212 mm discs |
| Rear Caliper/s | Single-piston |
| Parking Brake | Dual discs (mechanical) |
| Dimensions (LxWxH) | 3,385 x 1,625 x 1,970 mm |
| Wheelbase | 2,345 mm |
| Road Clearance | 260 mm |
| Seat Height | 880 mm (front), 965 mm (rear) |
| Curb Weight* | 884 kg |
| Estimated Dry Weight** | 844 kg |
| Fuel Capacity | 30 litres |
| Tread Front / Rear | 1,389 mm / 1,321 mm |
| Turning Radius | 4.8 m |
| Cargo Bed Dimensions (LxWxH): 6-Person Mode | 560 x 1,363 x 279 mm |
| Cargo Bed Dimensions (LxWxH): 3-Person Mode | 1,085 x 1,363 x 279 mm |
| Cargo Bed Capacity: 6-Person Mode | 158 kg |
| Cargo Bed Capacity: 3-Person Mode | 453 kg |
| Seating Capacity | 3 or 6 |
| Vehicle Load Capacity | 717 kg |
| Towing Capacity | 907 kg |
| Lighting | 2x halogen headlights |
| Model Code | KAT820BTFNN |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner's Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.
Specifications subject to change.
