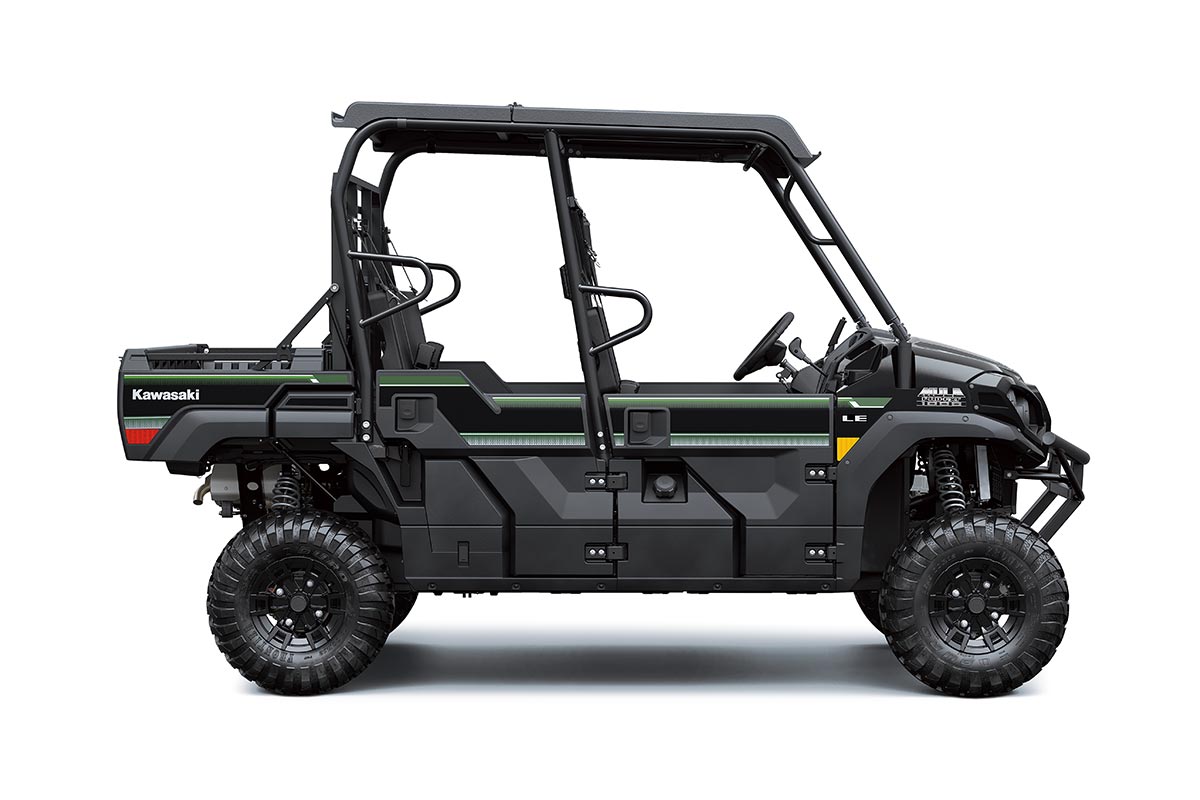

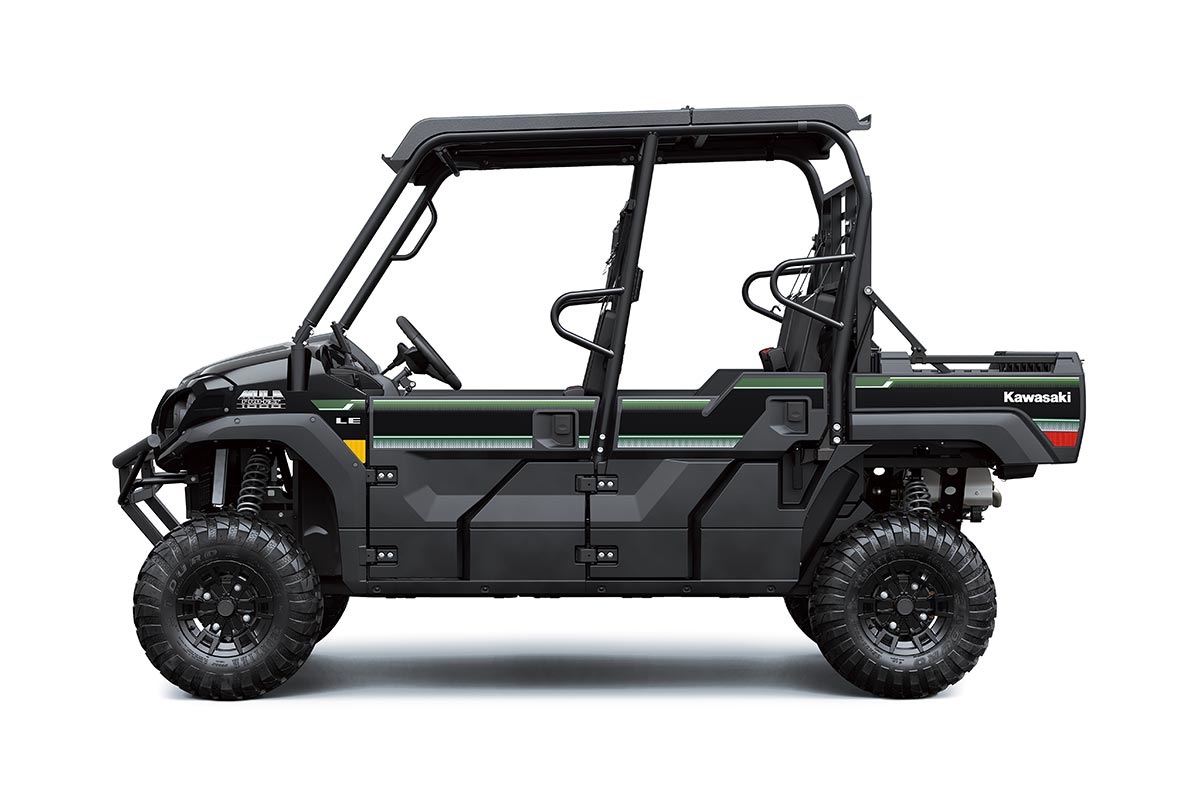

2026 MULE PRO-FXT 1000 LE
Kawasaki 2026 MULE PRO-FXT 1000 LE for Sale at TeamMoto in QLD, VIC and ACT | Specifications and Review Information
3- TO 6-PASSENGER TRANS CAB SYSTEM
The MULE PRO-FXT 1000 models are full-sized, high-capacity side by sides that features our exclusive 3- to 6-passenger Trans Cab system. With a reliable 999 cc Kawasaki built engine, these dependable side by sides are ready to transport heavy loads or transport the entire crew without breaking a sweat. Work harder and smarter with the dependable help of the MULE PRO-FXT 1000.
FEATURING:
- Kawasaki-Built, Liquid-Cooled 999 cc Parallel-Twin Engine
- Massive ground clearance
- Long-travel double-wishbone suspension
- Serious-looking front-end styling
- Improved maintenance (easy access to oil filter, dipstick and air-cleaner filter)
- 3- to 6-passenger Trans Cab System
- Kawasaki strong 3-year limited warranty
Metallic Onyx Black
Simple as 1, 2, 3
To transform from six-person mode to three-person mode: 1. Release the seat latches and lift the cargo wall struts to disengage the cargo wall securing mechanism. 2. Fold the seat bottom out of the way and slide the cargo wall forward. 3. Lower the cargo wall struts and reattached the seat latches to secure the cargo wall.
Kawasaki-Built 999 cc Liquid-Cooled, 4-Stroke Parallel Twin Engine
The compact litre-class engine delivers both high power and high torque, as well as an increased top speed. The mild character, complemented by a CVT (continuously variable transmission), offers driver-friendly throttle response and delivers smooth acceleration and deceleration.
Substantial Cargo Bed and Towing Capacity
Like the models in the MULE PRO Series, the MULE PRO-FXT 1000 offers a 453 kg cargo bed capacity*, and a 907 kg towing capacity.
Optimised Ride Height for Every Load Condition
Kawasaki’s first self-levelling suspension helps keep the vehicle level when carrying a heavy load. When a load compresses the rear suspension, a built-in mechanical pump system automatically pumps up the suspension as the vehicle moves to return the rear of the vehicle to its optimum level. Spreading the weight more evenly benefits both handling and braking performance.
| Maximum Power | 52 kW {71 PS} / 6,500 rpm |
| Maximum Torque | 83 Nm {8.5 kgfm} / 4,500 rpm |
| Engine | 4-stroke Parallel Twin |
| Displacement | 999 cc |
| Bore x Stroke | 92.0 x 75.1 mm |
| Compression Ratio | 10.1:1 |
| Valve System | DOHC, 4 valves per cylinder |
| Fuel System | Fuel injection: ø38 mm x 1 |
| Ignition | Digital |
| Starting | Electric |
| Cooling | Liquid-cooled |
| Lubrication | Forced lubrication, wet sump |
| Transmission | Dual-range (high/low) CVT with reverse |
| Primary Reduction Ratio | 3.28 ~ 0.70 (belt converter) |
| Gear Ratio: Forward (High) | 1.668 (34/33 x 34/21) |
| Gear Ratio: Forward (Low) | 3.312 (45/22 x 34/21) |
| Gear Ratio: Reverse | 2.571 (27/17 x 34/21) |
| Final Reduction Ratio: Front | 6.382 (31/17 x 35/10) |
| Final Reduction Ratio: Rear | 6.245 (31/21 x 55/13) |
| Final Drive | 2WD/4WD, shaft, dual-mode differential |
| Frame | Ladder type, tubular steel |
| Front Suspension | Double wishbone |
| Rear Suspension | Double wishbone |
| Front Wheel Travel | 279 mm |
| Rear Wheel Travel | 256 mm |
| Steering | Rack and pinion with Electric Power Steering |
| Rake | 3.7° |
| Trail | 20 mm |
| Steering Angle (L/R) | 40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT) |
| Front Tyres | 26 x 9.00R12 4PR |
| Rear Tyres | 26 x 11.00R12 4PR |
| Front Brakes | Dual ø212 mm discs |
| Front Calipers | Two-piston |
| Rear Brake/s | Dual ø212 mm discs |
| Rear Caliper/s | Single-piston |
| Parking Brake | Dual discs (mechanical) |
| Dimensions (LxWxH) | 3,450 x 1,625 x 2,055 mm |
| Wheelbase | 2,345 mm |
| Road Clearance | 295/320 mm (standard/max preload) |
| Seat Height | 915 mm (front), 1,000 mm (rear) |
| Curb Weight* | 887 kg |
| Estimated Dry Weight** | 849 kg |
| Fuel Capacity | 30 litres |
| Tread Front / Rear | 1,373 mm / 1,307 mm |
| Turning Radius | 4.8 m |
| Cargo Bed Dimensions (LxWxH): 6-Person Mode | 560 x 1,363 x 279 mm |
| Cargo Bed Dimensions (LxWxH): 3-Person Mode | 1,085 x 1,363 x 279 mm |
| Cargo Bed Capacity: 6-Person Mode | 158 kg |
| Cargo Bed Capacity: 3-Person Mode | 453 kg |
| Seating Capacity | 3 or 6 |
| Vehicle Load Capacity | 714 kg |
| Towing Capacity | 907 kg |
| Lighting | 2x halogen, 2x LED headlights |
| Model Code | KAT1000ATFNN |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner's Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.
Specifications subject to change.
