2026 MULE PRO-FX 1000 HD EDITION
Kawasaki 2026 MULE PRO-FX 1000 HD EDITION for Sale at TeamMoto in QLD, VIC and ACT | Specifications and Review Information
KAWASAKI STRONG
The MULE PRO-FX 1000 HD Edition side x side is a powerful, high-capacity, three-passenger vehicle that’s built to take on the most demanding days. With dependable power and exceptional all-day comfort, this rugged side x side is the perfect companion for work and play. Finish the job with the reliable capability of the MULE PRO-FX 1000 HD Edition.
FEATURING:
- Kawasaki-Built, Liquid-Cooled 999 cc Parallel-Twin Engine
- Massive ground clearance
- Long-travel double-wishbone suspension
- Self-levelling rear suspension
- Cargo bed lift kit
- Serious-looking front-end styling
- Improved maintenance (easy access to oil filter, dipstick and air-cleaner filter)
Firecracker Red
Kawasaki-Built 999 cc Liquid-Cooled, 4-Stroke Parallel Twin Engine
The compact litre-class engine delivers both high power and high torque, as well as an increased top speed. The mild character, complemented by a CVT (continuously variable transmission), offers driver-friendly throttle response and delivers smooth acceleration and deceleration.
Substantial Cargo Bed and Towing Capacity

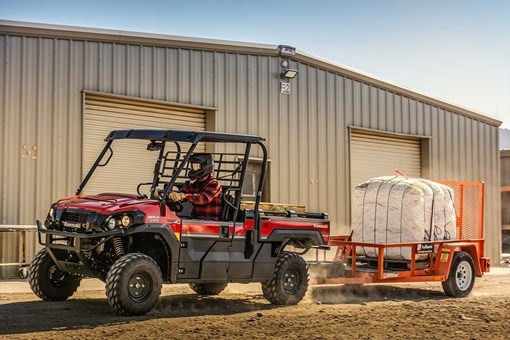

Like the models in the MULE PRO Series, the MULE PRO-FX 1000 HD Edition offers a 453 kg cargo bed capacity, and a 907 kg towing capacity.
Increased Ground Clearance
Ground clearance 300 mm or greater reduces the chances of the MULE PRO-FX 1000 HD Edition scraping its bottom, which translates to greater accessibility and increased ride comfort.
Optimised Ride Height for Every Load Condition
Kawasaki's first self-levelling suspension helps keep the vehicle level when carrying a heavy load. When a load compresses the rear suspension, a built-in mechanical pump system automatically pumps up the suspension as the vehicle moves to return the rear of the vehicle to its optimum level. Spreading the weight more evenly benefits both handling and braking performance.
| Maximum Power | 52 kW {71 PS} / 6,500 rpm |
| Maximum Torque | 83 Nm {8.5 kgfm} / 4,500 rpm |
| Engine | 4-stroke Parallel Twin |
| Displacement | 999 cc |
| Bore x Stroke | 92.0 x 75.1 mm |
| Compression Ratio | 10.1:1 |
| Valve System | DOHC, 4 valves per cylinder |
| Fuel System | Fuel injection: ø38 mm x 1 |
| Ignition | Digital |
| Starting | Electric |
| Cooling | Liquid-cooled |
| Lubrication | Forced lubrication, wet sump |
| Transmission | Dual-range (high/low) CVT with reverse |
| Primary Reduction Ratio | 3.28 ~ 0.70 (belt converter) |
| Gear Ratio: Forward (High) | 1.668 (34/33 x 34/21) |
| Gear Ratio: Forward (Low) | 3.312 (45/22 x 34/21) |
| Gear Ratio: Reverse | 2.571 (27/17 x 34/21) |
| Final Reduction Ratio: Front | 6.382 (31/17 x 35/10) |
| Final Reduction Ratio: Rear | 6.245 (31/21 x 55/13) |
| Final Drive | 2WD/4WD, shaft, dual-mode differential |
| Frame | Ladder type, tubular steel |
| Front Suspension | Double wishbone |
| Rear Suspension | Double wishbone, self-levelling suspension |
| Front Wheel Travel | 279 mm |
| Rear Wheel Travel | 256 mm |
| Steering | Rack and pinion with Electric Power Steering |
| Rake | 3.7° |
| Trail | 20 mm |
| Steering Angle (L/R) | 40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT) |
| Front Tyres | 26 x 9.00R12 4PR |
| Rear Tyres | 26 x 11.00R12 4PR |
| Front Brakes | Dual ø212 mm discs |
| Front Calipers | Two-piston |
| Rear Brake/s | Dual ø212 mm discs |
| Rear Caliper/s | Single-piston |
| Parking Brake | Dual discs (mechanical) |
| Dimensions (LxWxH) | 3,470 x 1,625 x 2,060 mm |
| Wheelbase | 2,345 mm |
| Road Clearance | 300/301 mm (standard/max preload) |
| Seat Height | 920 mm |
| Curb Weight* | 863 kg |
| Estimated Dry Weight** | 825 kg |
| Fuel Capacity | 30 litres |
| Tread Front / Rear | 1,373 mm / 1,307 mm |
| Turning Radius | 4.8 m |
| Cargo Bed Dimensions (LxWxH) | 1,375 x 1,355 x 280 mm |
| Cargo Bed Capacity | 453 kg |
| Seating Capacity | 3 |
| Vehicle Load Capacity | 717 kg |
| Towing Capacity | 907 kg |
| Lighting | 2x halogen, 2x LED headlights |
| Model Code | KAF1000LTFNN |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner's Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.
Specifications subject to change.
