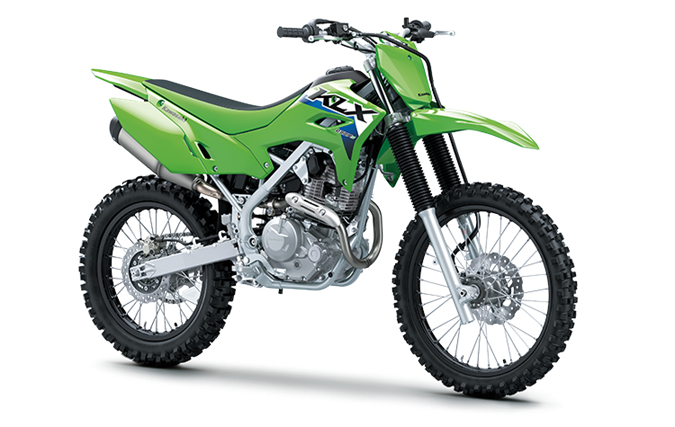

2026 KLX230R S
Kawasaki 2026 KLX230R S for Sale at TeamMoto in QLD, VIC and ACT | Specifications and Review Information
The full-size fun of the KLX230R trail bike means it’s time to Get Out and Play. Take on terrain with nimble handling and plenty of power, while kicking up some serious dirt along the way. Long-travel suspension paired with improved low-speed control gives this bike a sporty feel that stands out among the rest. Finished with styling inspired by the KX lineup, the highly capable, lightweight package of the KLX230R brings a heavy dose of fun to every off-road ride.
FEATURING:
- 233 cc fuel-injected, air-cooled four-stroke Single
- primary balancer for smoother engine character
- compact perimeter frame with lower seat height
- larger capacity fuel tank
- Trail-tuned long-travel suspension
233 cc Fuel-Injected Engine with Improved Low-Mid Range and Balancer
The KLX230R S's updated engine offers more low- to mid-range torque for low-speed control, resulting in a rider-friendly engine character and linear acceleration. This combined with the low-speed feeling makes this play bike even more fun than before.
Lower Seat Height for Greater Approachability
Thanks to its improved rear subframe, the KLX230R S's seat height is 25 mm lower, (875 mm compared to 900 mm on its predecessor), making the machine easier to handle and adding confidence when riding off-road, suiting it well to a wider range of riders.
Compact Perimeter Frame
Designed from the start for dirt-riding use, the high-tensile steel perimeter frame offers the handling stability needed for confident trail riding. For 2025, a newly designed rear subframe makes it possible to maintain the long wheel travel while offering a lower seat height.
Riding Position Fine-Tuned for Control
Handlebar and footpeg placement were also revised, with the handlebar 25 mm farther forward and 13 mm higher, while the footpegs move 9 mm rearward. The new handle position facilitates rider inputs into the bars, with the enhanced controllability contributing to confidence when cornering.
Larger Capacity Fuel Tank
A 7.6 litre fuel tank (compared to the previous model’s 6.6 litres) adds more range and allows longer intervals between refuelling for more fun riding time. The fuel tank also features a key-operated tank cap.
Long-Travel Suspension with Large-Diameter 21"/18" Wheels
Ample wheel travel is available at the at the front and rear thanks to an ideally suited suspension, while large-diameter aluminium wheels, measuring 21" at the front and 18" at the rear efficiently navigate trails a combination that greatly contributes to trail-riding performance.
| Maximum Power | 13.8 kW {19 PS} / 8,000 rpm |
| Maximum Torque | 19.6 Nm {2.0 kgfm} / 6,400 rpm |
| Engine | 4-stroke Single |
| Displacement | 233 cc |
| Bore x Stroke | 67.0 x 66.0 mm |
| Compression Ratio | 9.4:1 |
| Valve System | SOHC, 2 valves |
| Fuel System | Fuel injection: ø32 mm x 1 |
| Ignition | Digital |
| Starting | Electric |
| Cooling | Air-cooled |
| Lubrication | Forced lubrication, wet sump |
| Transmission | 6-speed, return |
| Primary Reduction Ratio | 2.871 (89/31) |
| Gear Ratio: 1st | 3.000 (39/13) |
| Gear Ratio: 2nd | 2.067 (31/15) |
| Gear Ratio: 3rd | 1.556 (28/18) |
| Gear Ratio: 4th | 1.261 (29/23) |
| Gear Ratio: 5th | 1.040 (26/25) |
| Gear Ratio: 6th | 0.852 (23/27) |
| Final Reduction Ratio | 3.538 (46/13) |
| Clutch | Wet multi-disc, manual |
| Final Drive | Chain |
| Frame | Perimeter, high-tensile steel |
| Front Suspension | ø37 mm telescopic fork |
| Rear Suspension | New Uni Trak with adjustable spring preload |
| Front Wheel Travel | 220 mm |
| Rear Wheel Travel | 217 mm |
| Rake | 24.6° |
| Trail | 100 mm |
| Steering Angle (L/R) | 45° / 45° |
| Front Tyre | 80/100-21 51M |
| Rear Tyre | 100/100-18 59M |
| Front Brake/s | ø240 mm petal disc |
| Front Caliper/s | Dual-piston |
| Rear Brake | ø220 mm petal disc |
| Rear Caliper | Single-piston |
| Dimensions (LxWxH) | 2,035 x 845 x 1,185 mm |
| Wheelbase | 1,355 mm |
| Road Clearance | 270 mm |
| Seat Height | 875 mm |
| Curb Weight* | 119 kg |
| Estimated Dry Weight** | 112 kg |
| Fuel Capacity | 7.6 litres |
| Model Code | KLX232PTFNN |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). **Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. Kawasaki Motors Pty Ltd.
Specifications subject to change.
