Z10
THE WAIT IS OVER
$33,490*

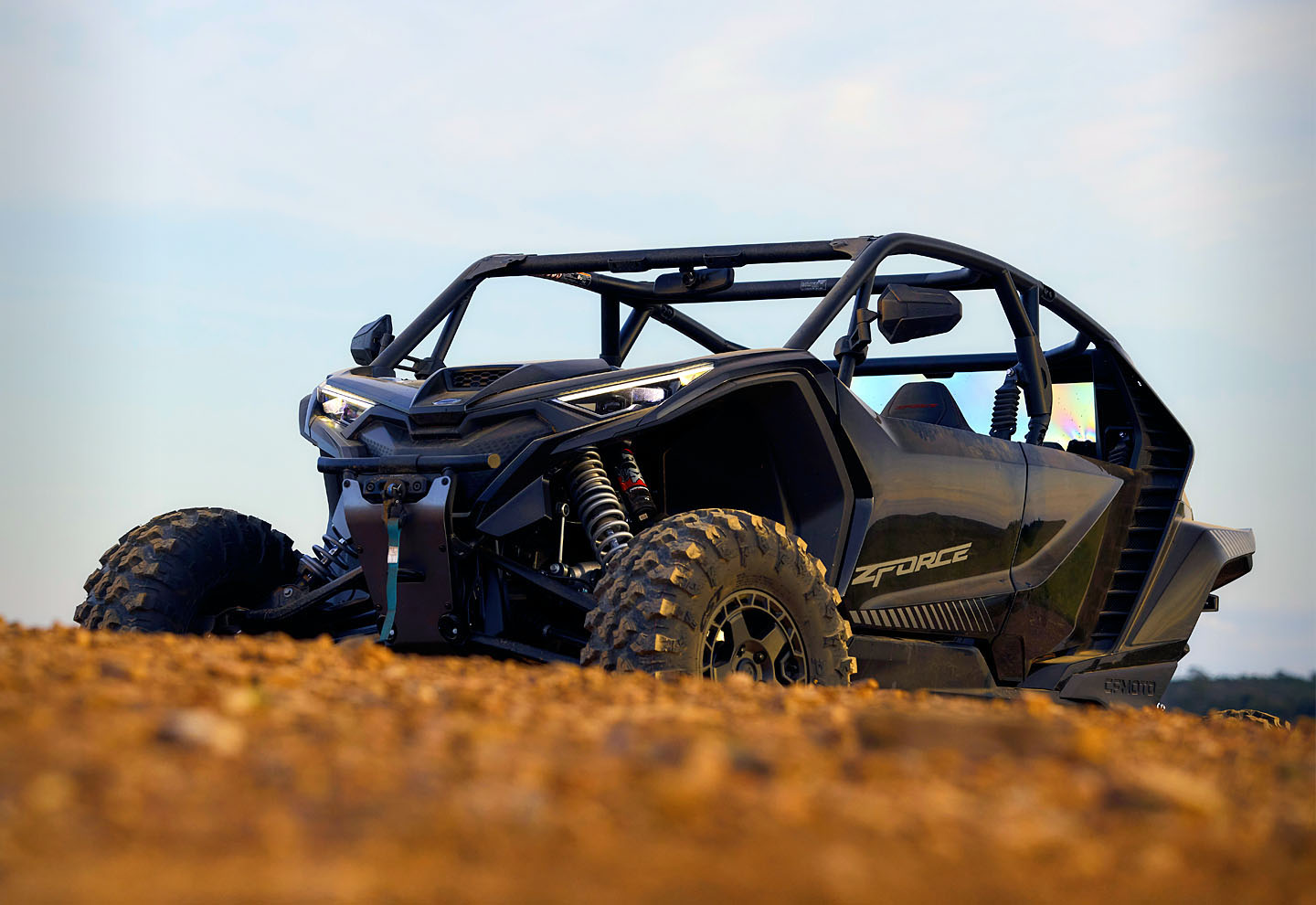

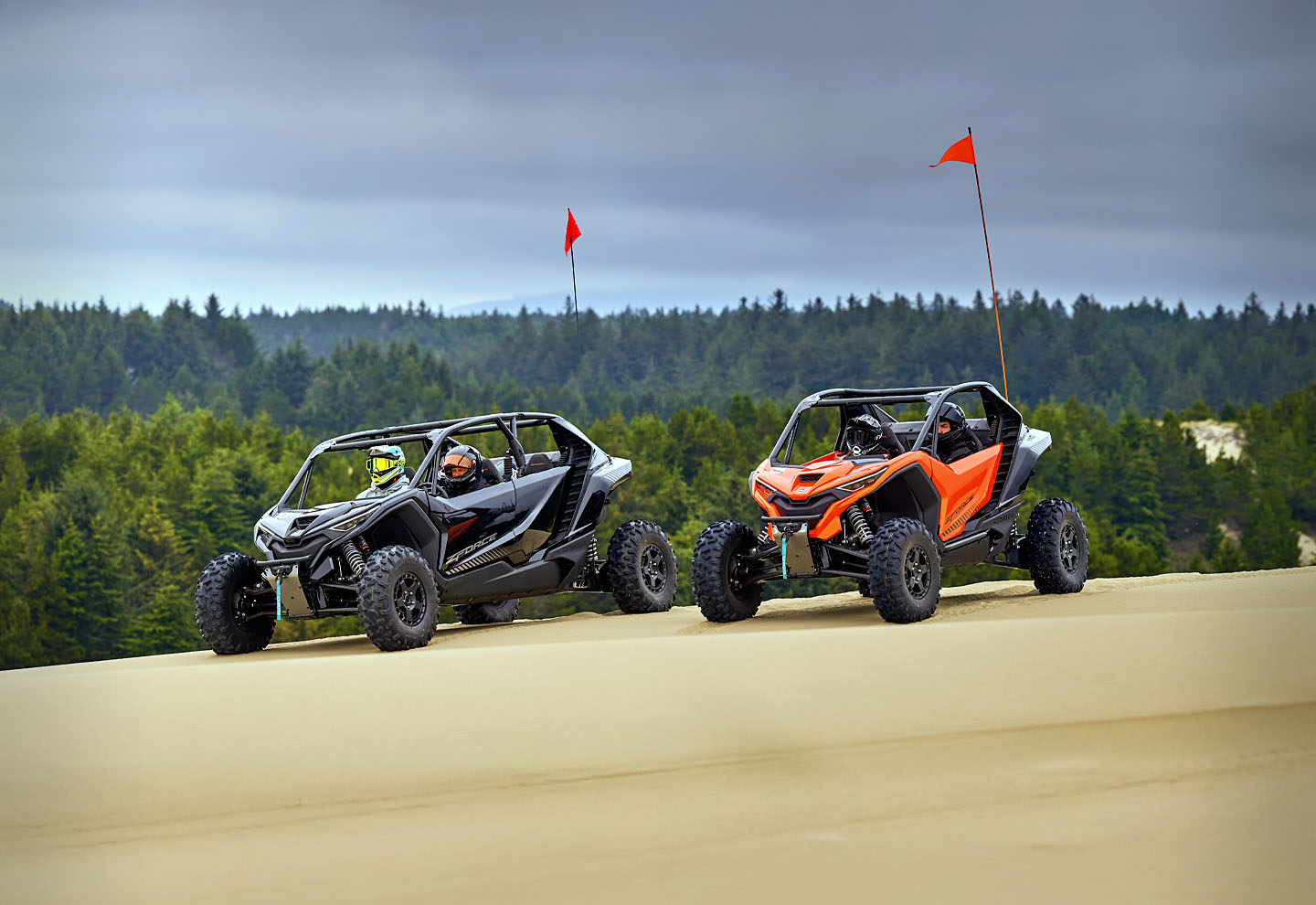

The all-new ZFORCE Z10 and ZFORCE Z10-4 are here – two models that represent the most aggressive, most advanced sports SSVs we’ve ever built. These machines aren’t just vehicles; they’re statements of intent. They’re engineered for customers who believe the tougher the trail, the greater the thrill.
Overseas model shown with optional accessories.
*National ride away price is the recommended retail price inclusive of freight to your local dealer and dealer pre-delivery charges. Excludes Regional WA and King Island dealers. To confirm the recommended ride away price customers should contact their local dealer to confirm the price, as prices may vary, depending on your location. For more details, contact us.
ENGINE & TRANSMISSION
| Engine Type | Turbocharged 3-clyinder, 4-stroke, liquid cooled, DOHC |
| Discplacement | 998cc |
| Maximum Power | 143hp at 7,750rpm |
| Maximum Torque | 136Nm at 7,000rpm |
| Fuel System | Bosch EFI with three power modes, Comfort, Trail or Sport |
| Transmission | OMNiDRIVE CVT (CFMOTO CVT System) |
| Drive | H-L-N-R-Park |
| 4WD | 2WD / 4WD / 4WD Lock |
| Steering | Progressive power steering (EPS) |
CHASSIS
| Suspension Front | High clearance double A-arm independent, 431mm of travel |
| Suspension Rear | Trailing arm independent 508mm of travel |
| Shock Absorber | FOX® QSE shocks with three adjustable suspension modes: Soft, Medium, Firm |
| Brakes | Hydraulic disc brakes |
| Wheels | 14-inch alloy, black |
| Tyres | 30 x 10-inch R14 AT tyres |
SIZE
| Dimensions | 3,276 x 1,626 x 1740mm |
| Wheelbase | 2515mm |
| Ground Clearance | 356mm |
| Dry Weight | 854kg |
LOAD
| Payload Capacity | 295kg |
| Persons | Two |
| Fuel Capacity | 45L |
Other
| Winch | 4500lb |
| Warranty | 12 Months |
| Colour | Lava Orange or Nebula Black |
*Model specifications may change without notice.
