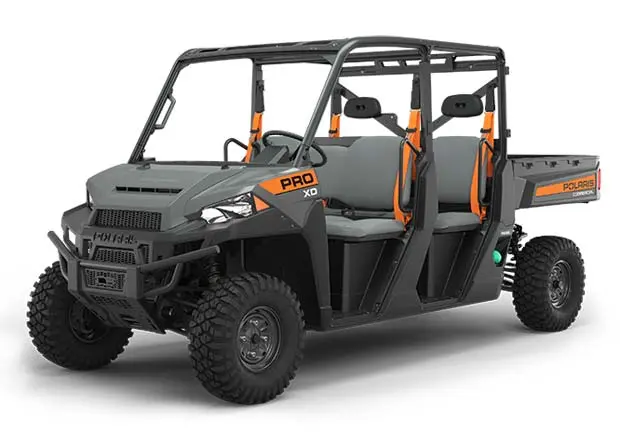

TOW MORE. HAUL MORE. SEATS UP TO FOUR.
The Pro XD Full-Size leads the way for commercial UTVs, without sacrificing safety, durability, or serviceability.
Speed Limited
The PRO XD is delivered with a top speed of 41.8 km/h for jobsite compliance, and can also be limited down to 24 km/h.
Tight Sealing Cab
The PRO XD and cab were engineered together to create the tightest seal possible, keeping harmful dust and weather out.
High-Vis Seatbelts & Decals
Orange seatbelts and vehicle decals improve visibility to the vehicle and surrounding workers.
Standard Factory Accessories
The PRO XD comes standard with a back up alarm and horn on all models, with a mechanical parking brake also standard on diesel models.
Towing and Payload
Industry-leading up to 941kg payload.
Industry-Recommended Power Plants
Experience the power of the Kubota ® 24 HP Diesel engine.
Driveline Components
Heavy-duty drive shaft, CVT boots and wheel bearings increase life expectancy.
Heavy-Duty Seats
Kevlar ®-backed seats help resist punctures and tears.
JOBSITE TYRES
8-ply jobsite tyres designed for longer life on hard-packed surfaces.
Heavy-Duty Poly Bed
Rust-free, dent-free bed with 567kg capacity sized to fit a full size pallet.
Technical Specifications
Cooling
Liquid
Cylinders-Displacement (cc)
898cc
Drive System Type
On-Demand 4x4
Motor
3-Cylinder Kubota ® Diesel
Fuel System/Battery
Mechanical injection
Horsepower
24.5 HP
Transmission / Final Drive
Automatic PVT H/L/N/R/P, Shaft
Front Suspension
22.9 cm
Rear Suspension
22.9 cm
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park in Transmission + Separate Mechanical Parking Brake Standard
Front Tyres
26 x 10-12 Duro ® DI-2042 Power Grip (M/T)
Rear Tyres
26 x 10-12 Duro ® DI-2042 Power Grip (M/T)
Wheels
12 x 6 HD Steel - Gloss Black
Bed Box Dimensions (L x W x H)
110.5 x 137 x 29 cm
Front / Rear Rack or Box Capacity
567 kg
Estimated Dry Weight
856 kg
Fuel Capacity
43.5 L
Ground Clearance
27.9 cm
Hitch Towing Rating
1,134 kg
Hitch Type
Standard 5 cm Receiver
Overall Vehicle Size (L x W x H)
399 x 159 x 191 cm
Payload capacity
941 kg
Person Capacity
4
Wheelbase
297.2 cm
Driver Instrumentation
All Digital Gauge, Speedometer, Odometer, Tachometer, 2 Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, Engine Temperature, Hi-Temp Light, Clock, Clutch Belt Slip Warning, Glow Plug Indicator, Low Oil Pressure Indicator, Seat Belt Indicator, Parking Brake Engaged Alarm
TOW MORE. HAUL MORE. SEATS UP TO FOUR.
The Pro XD Full-Size leads the way for commercial UTVs, without sacrificing safety, durability, or serviceability.
