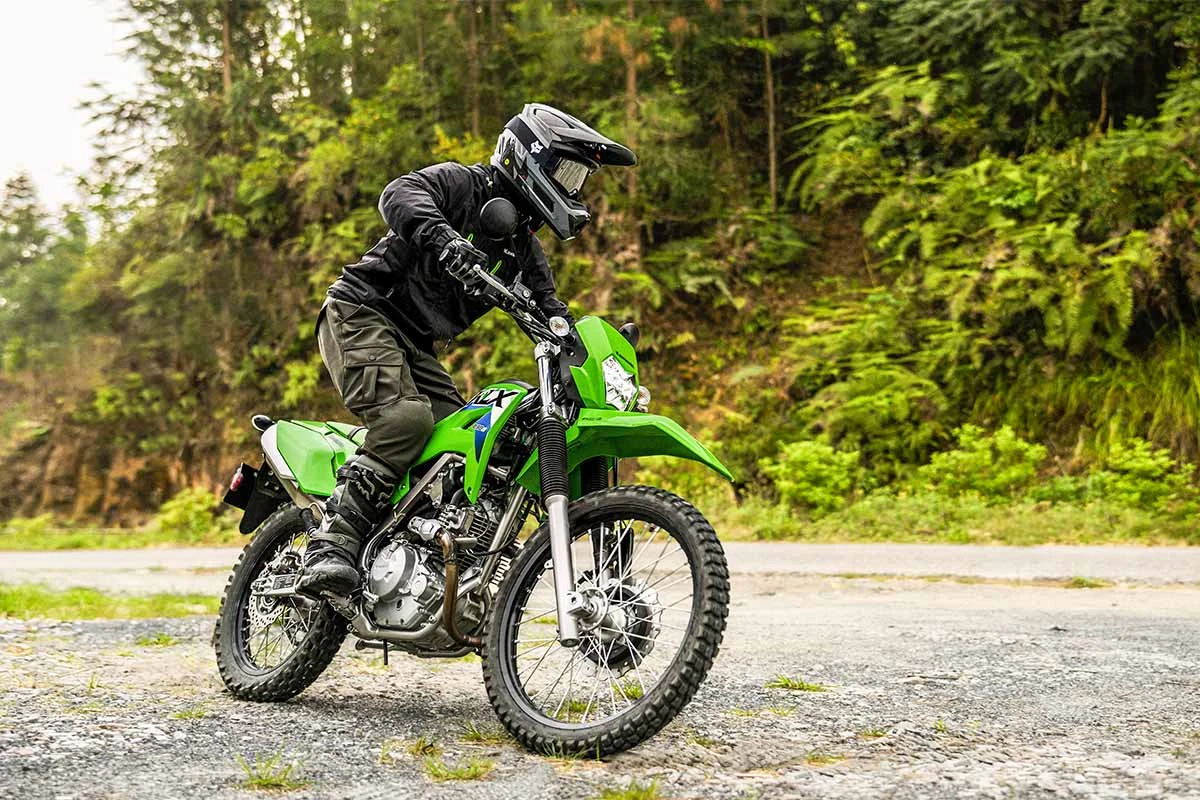

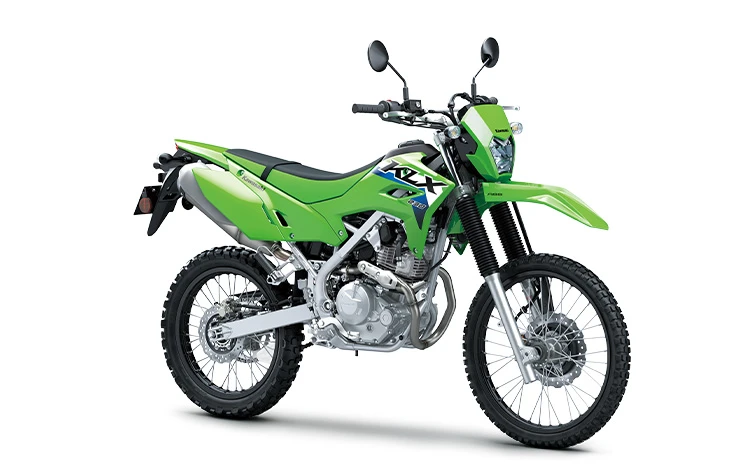

The 2027 Kawasaki KLX230 S is a lightweight dual-sport motorcycle designed for approachable on- and off-road riding, powered by a 233 cc air-cooled, fuel-injected single-cylinder engine that delivers 13.2 kW (18 PS) at 8,000 rpm through a 6-speed gearbox, with this year's update bringing a lighter front end for improved off-road performance plus a new taillight. Built on a perimeter high-tensile steel frame, it pairs a 37 mm telescopic fork (200 mm travel) with an adjustable Uni-Trak rear shock (223 mm travel) for 240 mm of ground clearance, while its lower 845 mm seat height and light 131 kg curb weight make it especially accessible for smaller or less experienced riders compared to the standard KLX230. Rounding out the package are ABS, ERGO-FIT rider ergonomics, and smartphone connectivity through the RIDEOLOGY app.

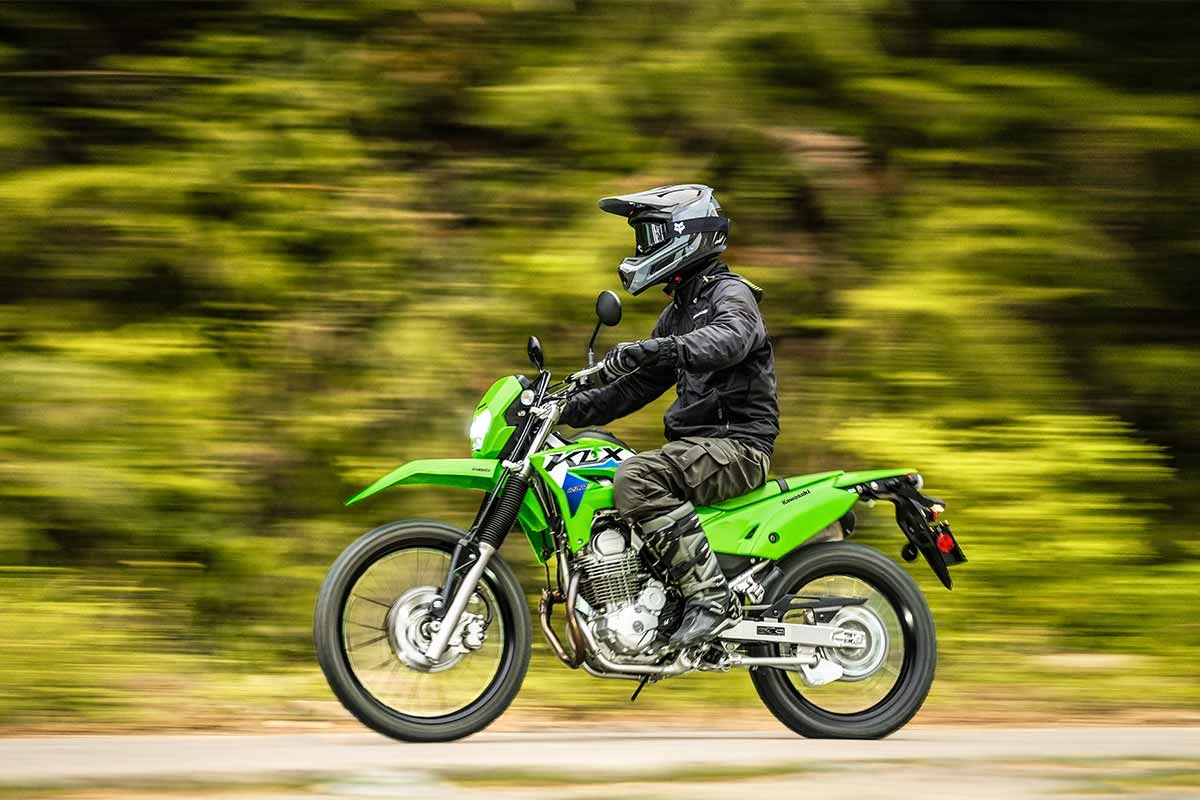

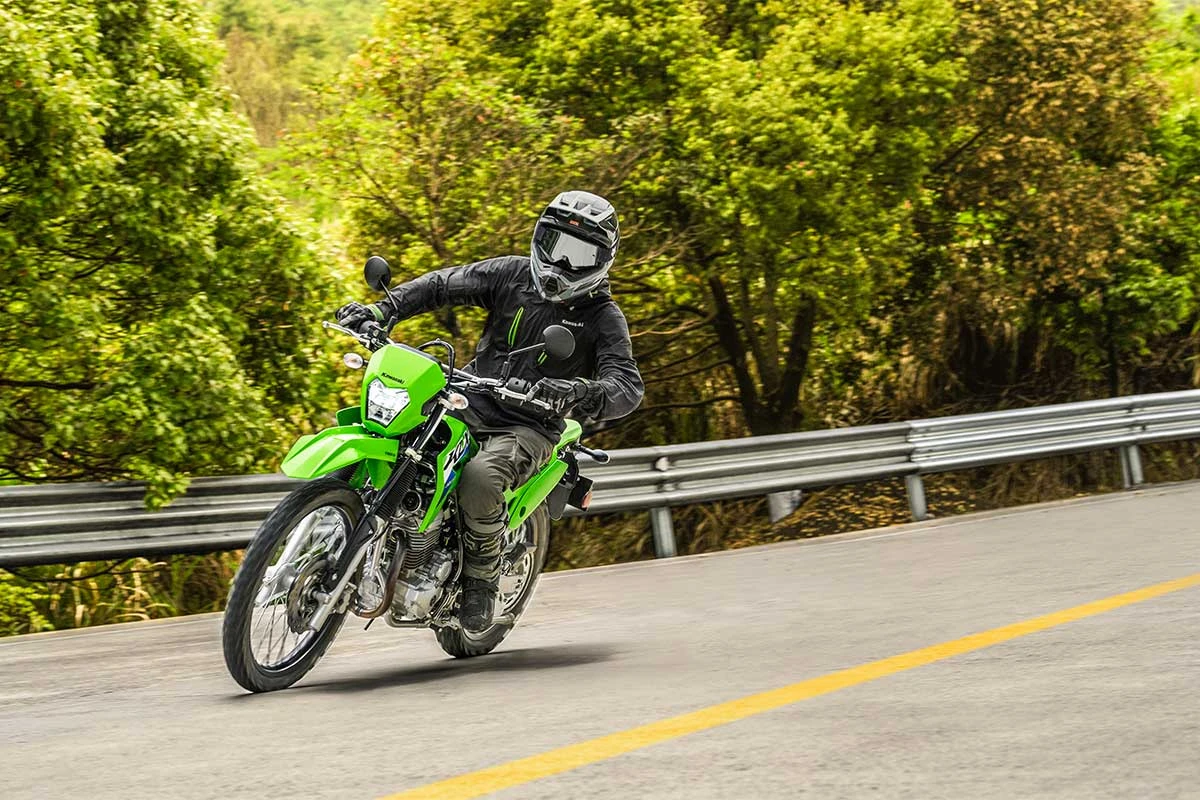

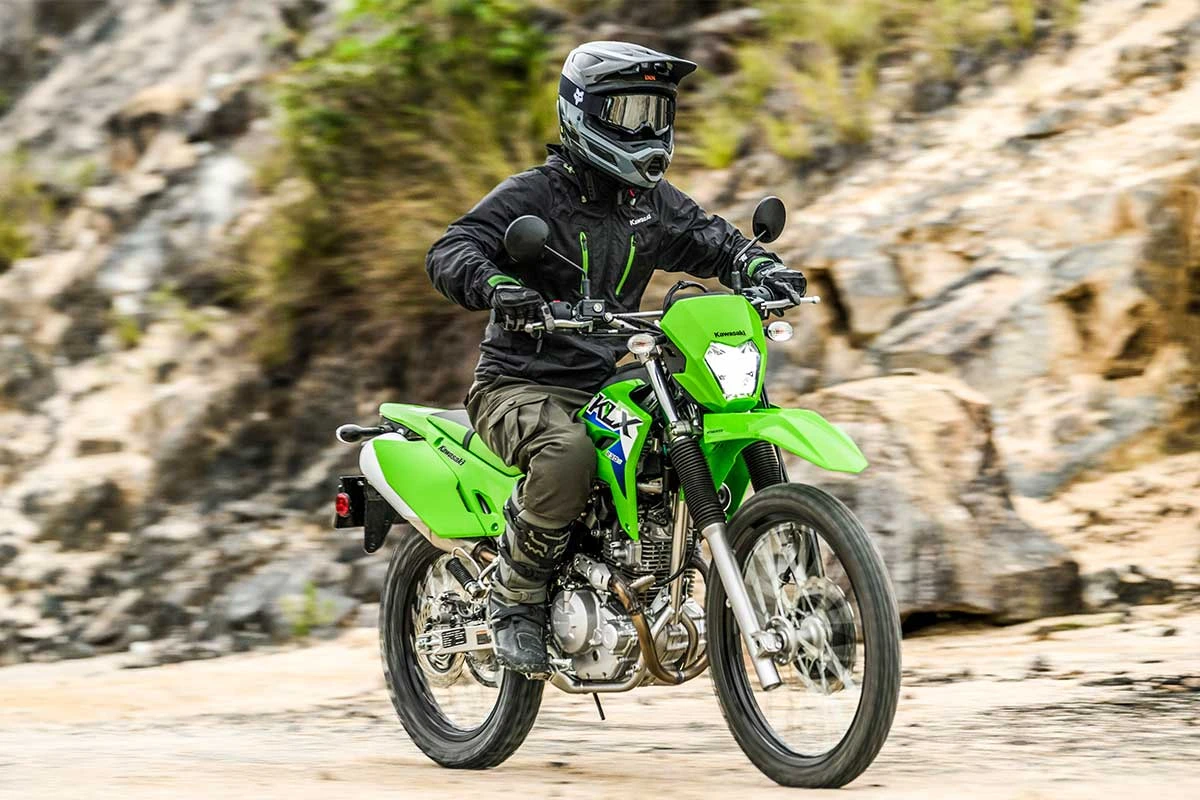

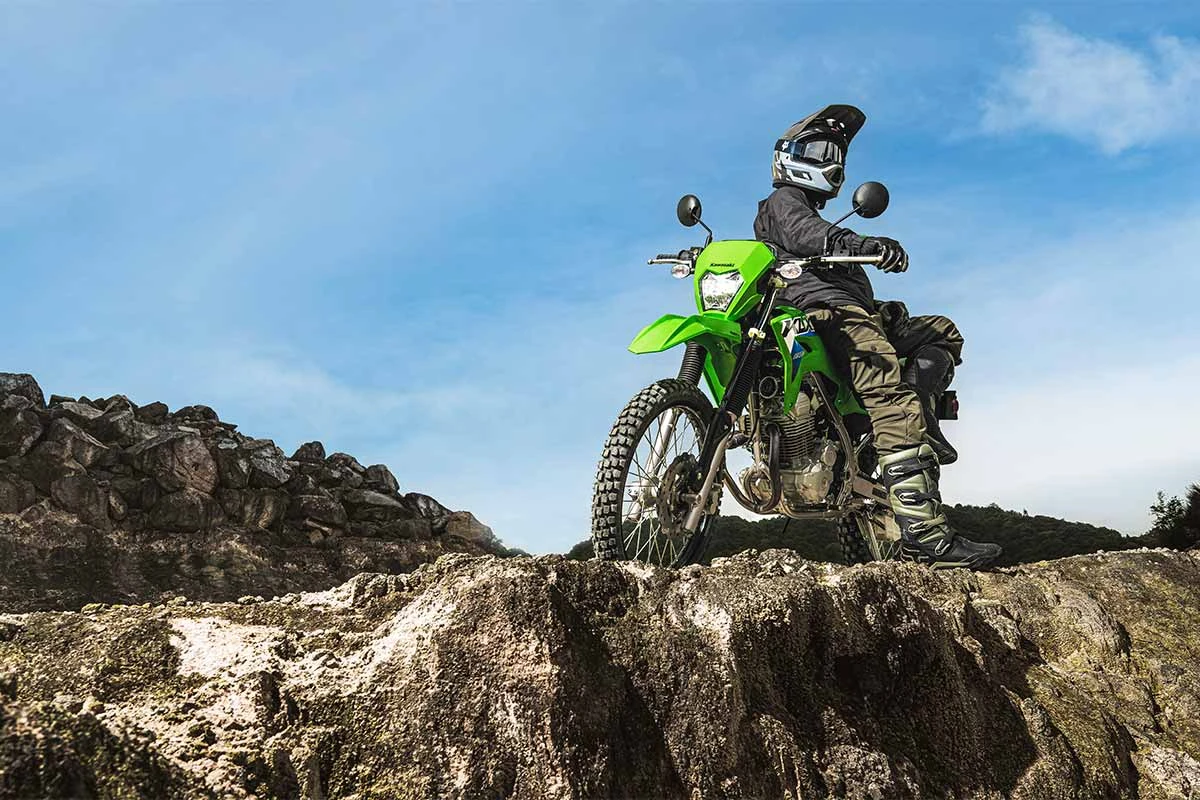

When the road is challenging, the new KLX230 S is ready with long wheel travel, and ample ground clearance. Cancellable front/rear ABS offers the option to cater to rider preference when riding off-road. The great all-around performance of the tried-and-true engine has been augmented for an even more enjoyable and useful dual-purpose machine.
*Actual product may vary from image

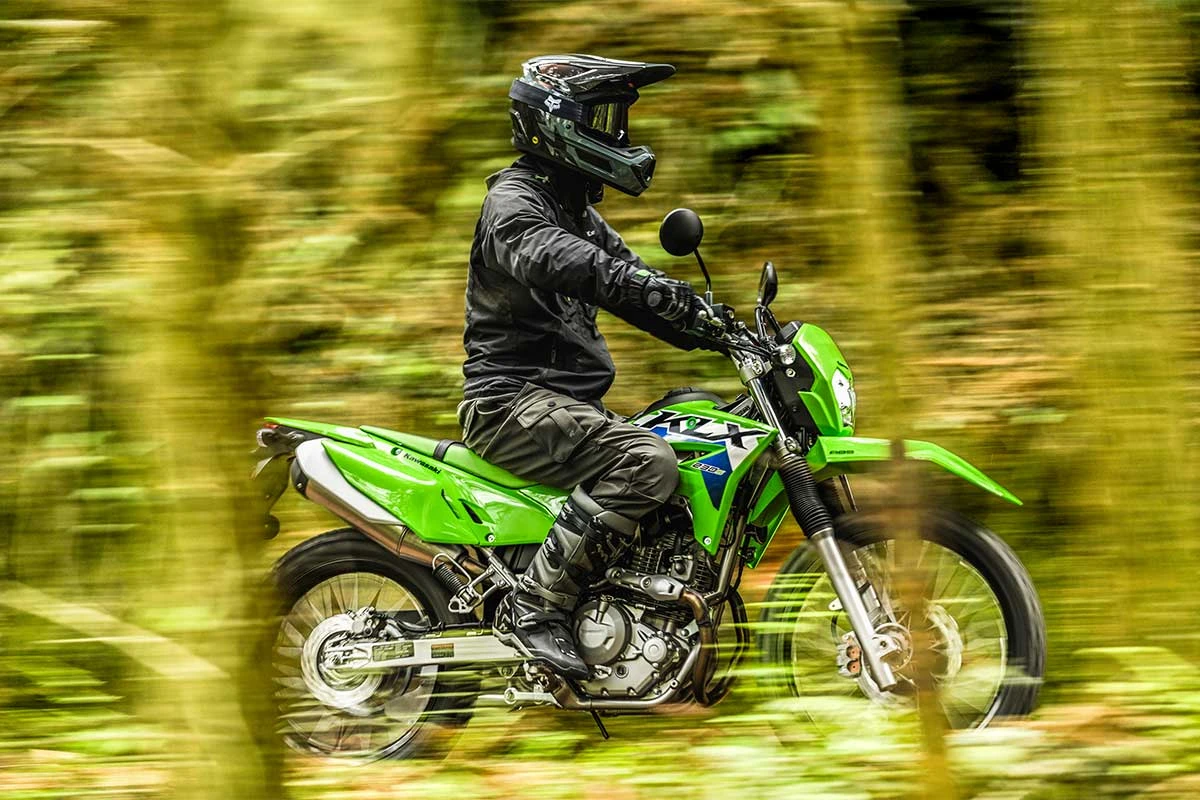

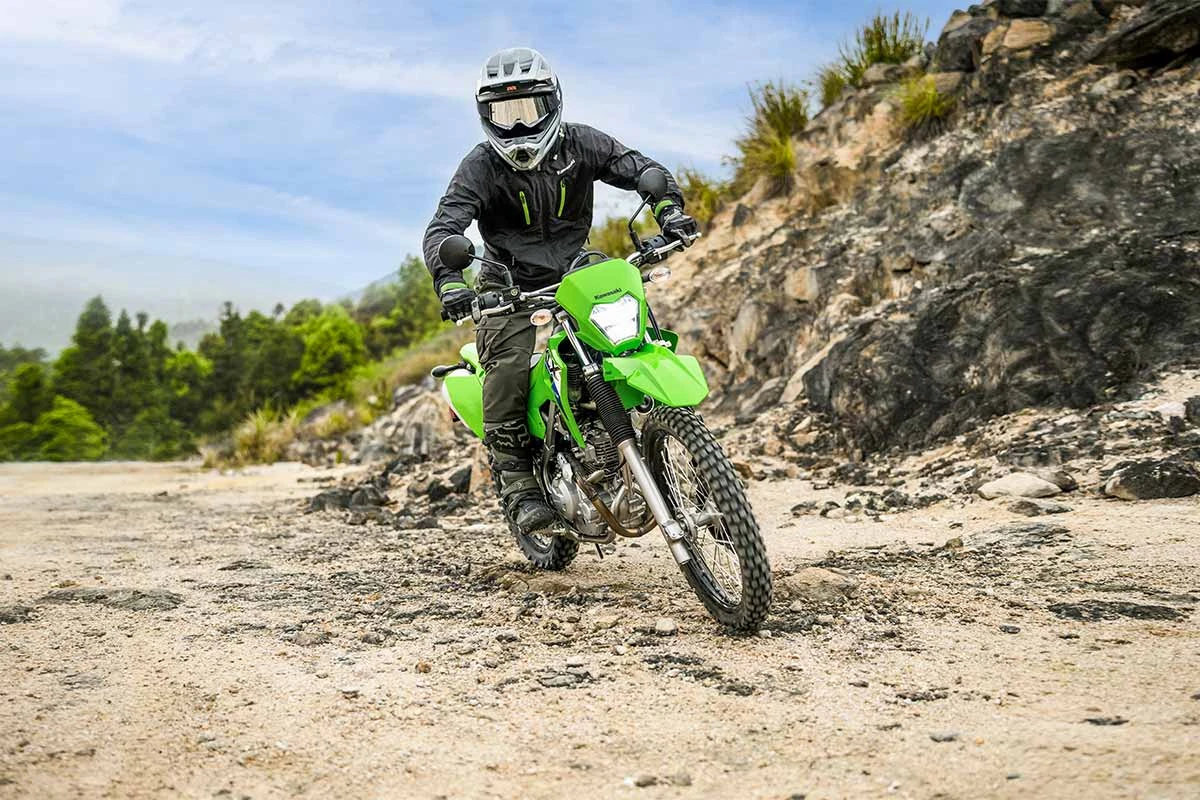

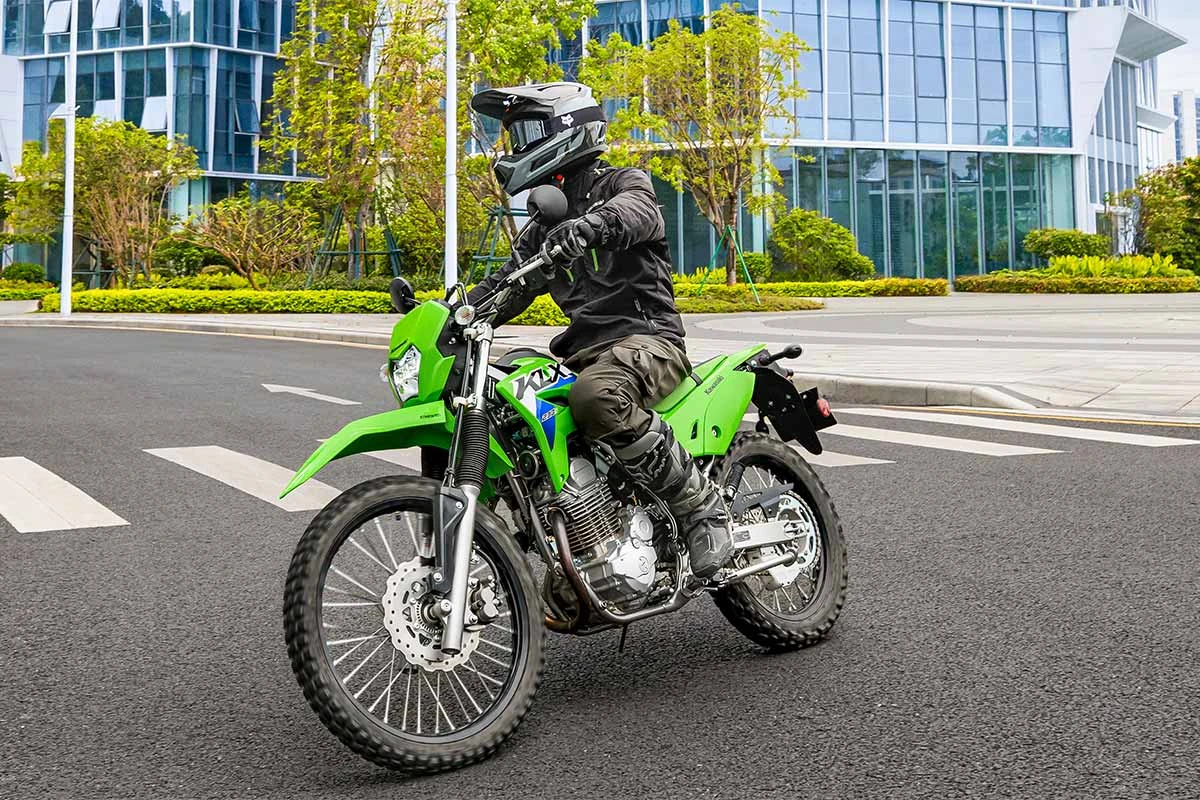

COMPACT, LIGHTWEIGHT, MANOEUVRABLE
Confidence-inspiring for a wide range of riders
Providing a light, manoeuvrable package has been a key consideration since the KLX230 was originally designed. Its simple air-cooled engine and easy handling perimeter frame contribute to a compact package, while the balance between the engine and frame results in performance that can be enjoyed by a wide range of riders.
*Actual product may vary from image

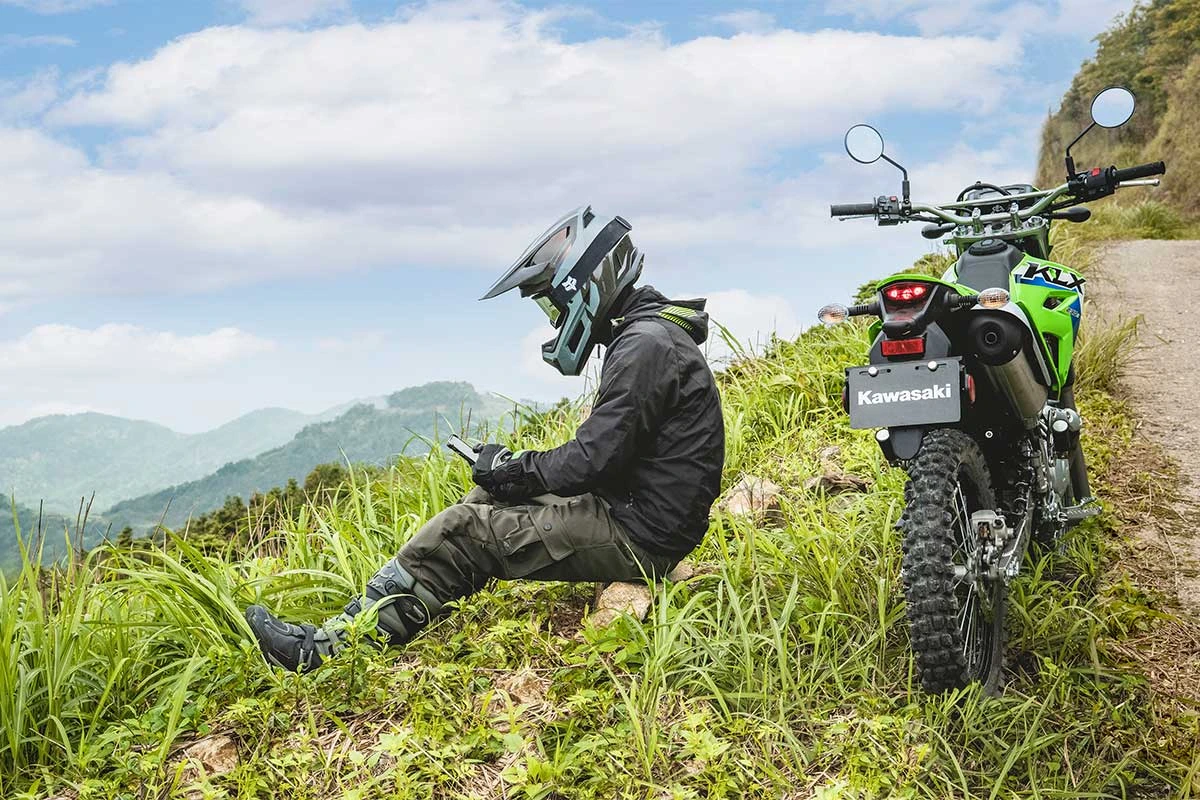

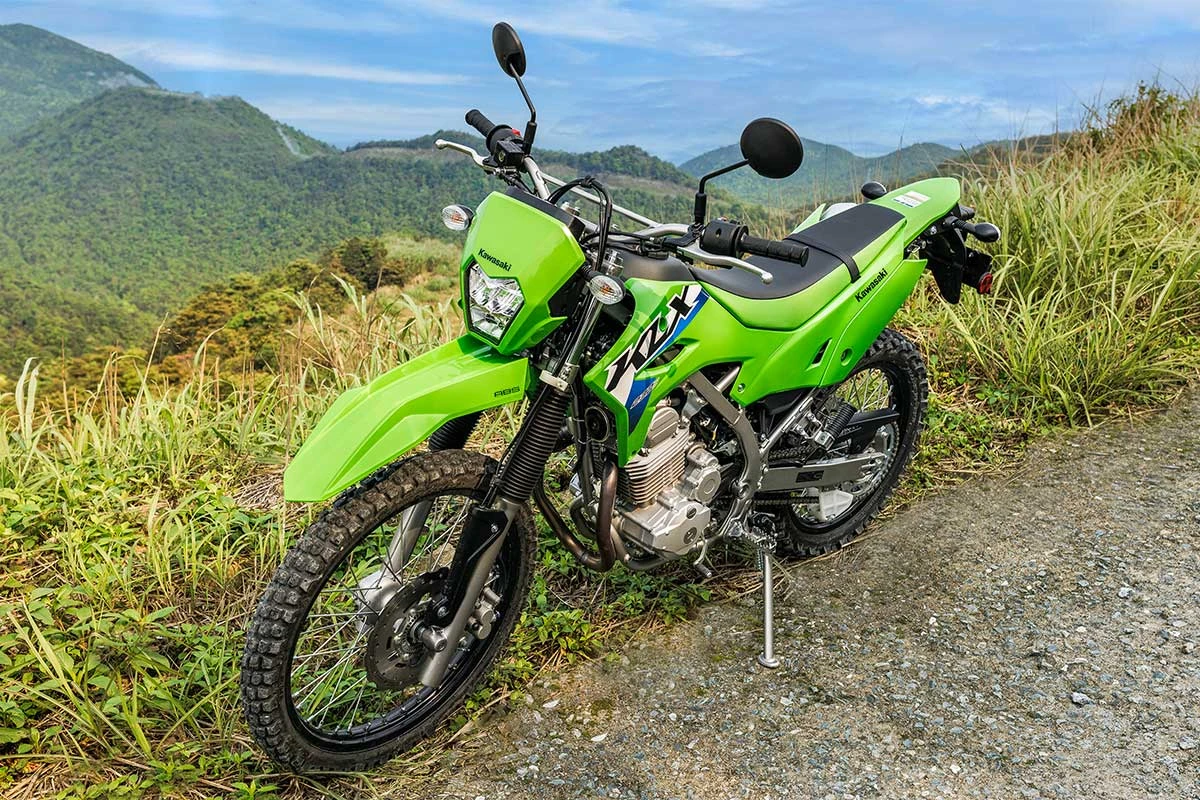

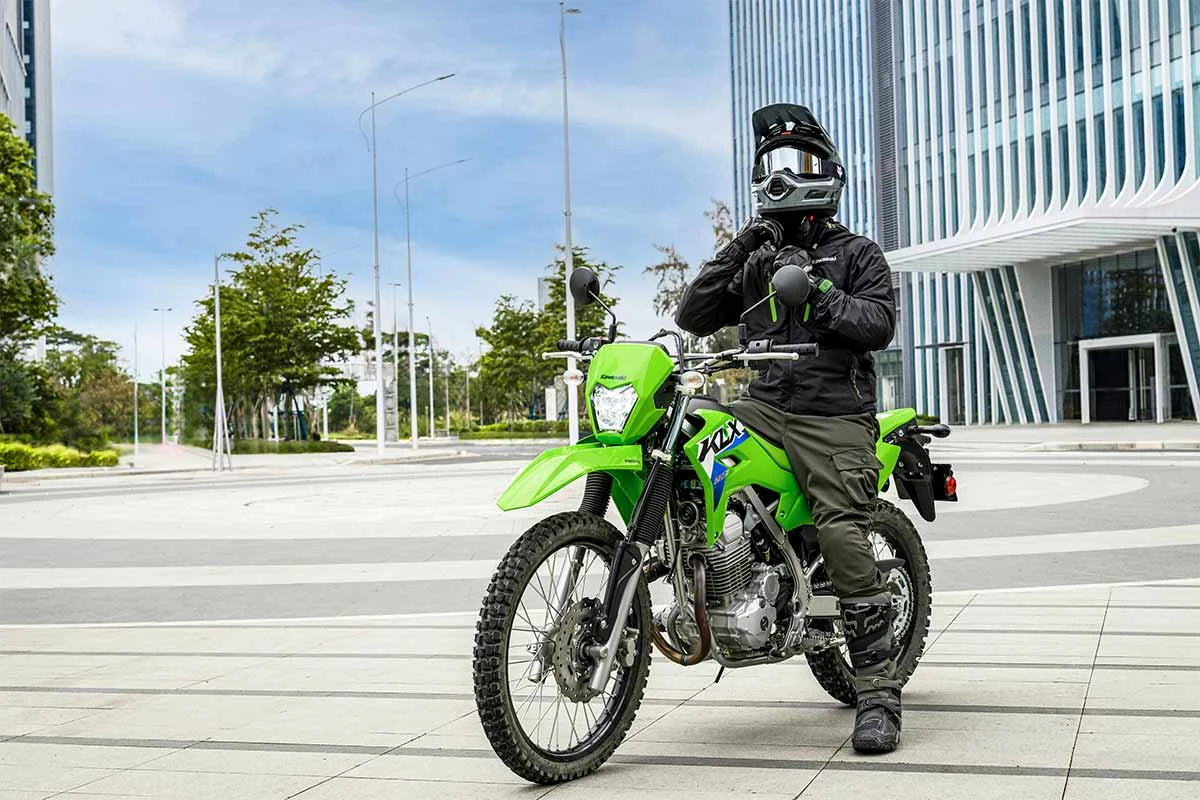

KX-INSPIRED STYLING
Aggressive and Agile
Kawasaki’s KX450 and KX250 models were the inspiration for the KLX230’s smooth-surface bodywork and black wheel rims, all contributing to an offroad-racing inspired look aligned with Kawasaki’s famous KX race machines. Compact LED lighting enhances its slim appearance, while a two-tone seat and black rims add a sophisticated image.
*Actual product may vary from image

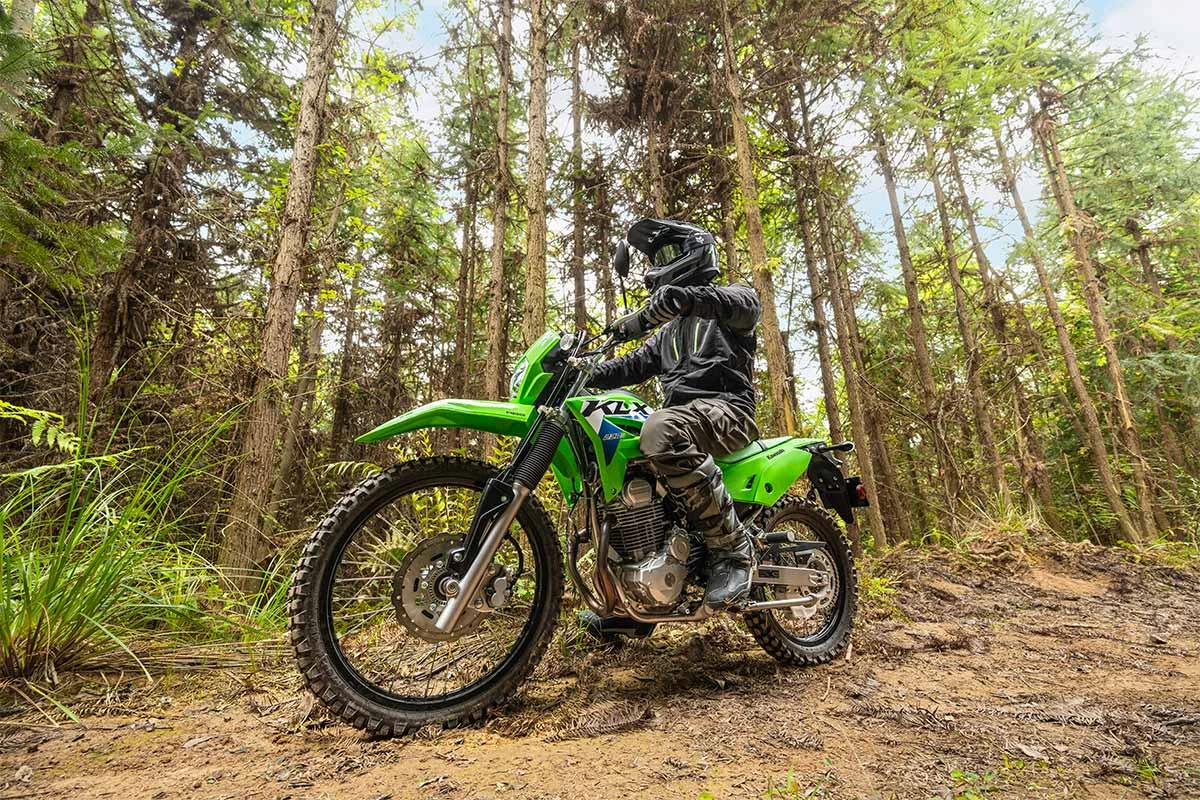

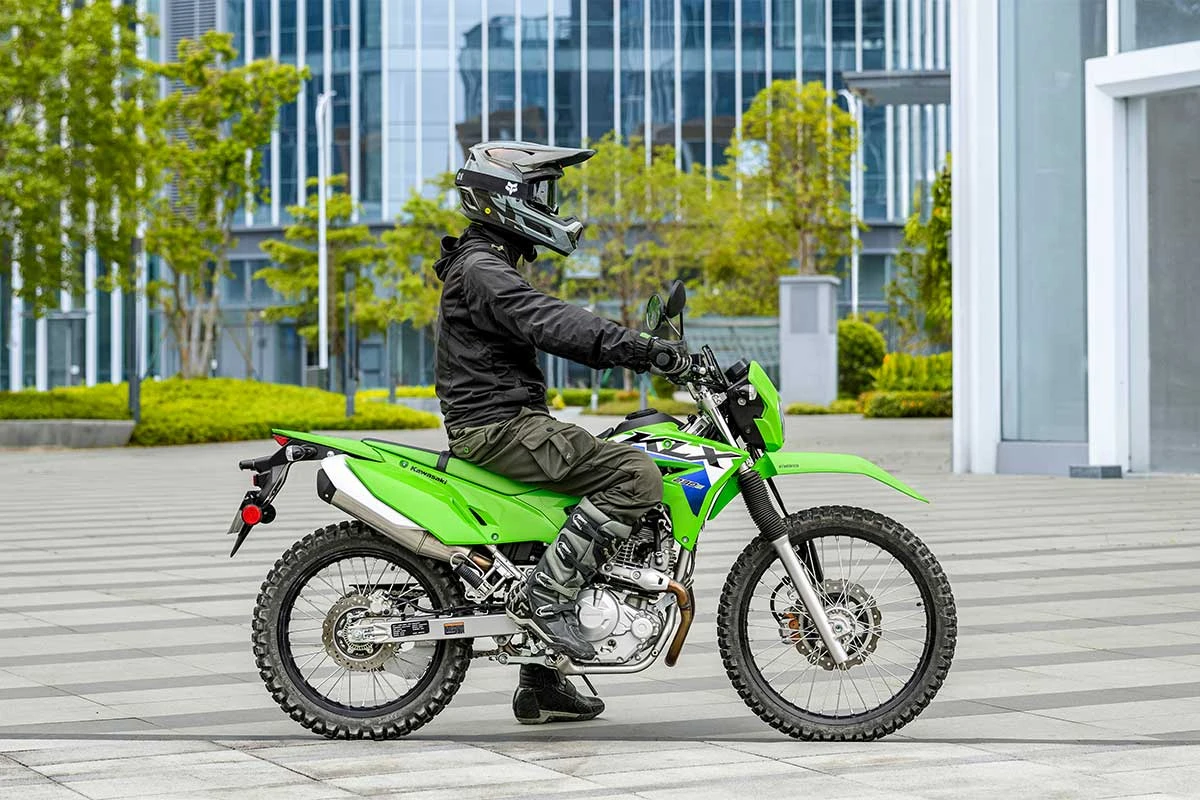

PRACTICAL FEATURES
Versatility for road and trail
All-digital instrumentation is complemented by smartphone connectivity, adding a modern touch. 7.6 litre fuel tank helps riders enjoy hours of trail riding between fill-ups. Standard passenger footpegs allow you to share the fun. And a convenient toolbox is located behind the left side cover.
*Non-current colour shown
Technical Specifications
Maximum Power
13.2 kW {18 PS} / 8,000 rpm
Maximum Torque
18.0 Nm {1.8 kgfm} / 6,400 rpm
Engine
4-stroke Single
Displacement
233 cc
Bore x Stroke
67.0 x 66.0 mm
Compression Ratio
9.4:1
Valve System
SOHC, 2 valves
Fuel System
Fuel injection: ø32 mm x 1
Ignition
Digital
Starting
Electric
Cooling
Air-cooled
Lubrication
Forced lubrication, wet sump
Transmission
6-speed, return
Primary Reduction Ratio
2.871 (89/31)
Gear Ratio 1st
3.000 (39/13)
Gear Ratio 2nd
2.067 (31/15)
Gear Ratio 3rd
1.556 (28/18)
Gear Ratio 4th
1.261 (29/23)
Gear Ratio 5th
1.040 (26/25)
Gear Ratio 6th
0.852 (23/27)
Final Reduction Ratio
3.214 (45/14)
Clutch
Wet multi-disc, manual
Final Drive
Chain
Frame
Perimeter, high-tensile steel
Front Suspension
ø37 mm telescopic fork
Rear Suspension
New Uni-Trak, single shock with adjustable spring preload
The 2027 Kawasaki KLX230 S is a lightweight dual-sport motorcycle designed for approachable on- and off-road riding, powered by a 233 cc air-cooled, fuel-injected single-cylinder engine that delivers 13.2 kW (18 PS) at 8,000 rpm through a 6-speed gearbox, with this year's update bringing a lighter front end for improved off-road performance plus a new taillight. Built on a perimeter high-tensile steel frame, it pairs a 37 mm telescopic fork (200 mm travel) with an adjustable Uni-Trak rear shock (223 mm travel) for 240 mm of ground clearance, while its lower 845 mm seat height and light 131 kg curb weight make it especially accessible for smaller or less experienced riders compared to the standard KLX230. Rounding out the package are ABS, ERGO-FIT rider ergonomics, and smartphone connectivity through the RIDEOLOGY app.
content_description2
Power;Performance;Technology;Details#####Maximum Power|13.2 kW {18 PS} / 8,000 rpm;Maximum Torque|18.0 Nm {1.8 kgfm} / 6,400 rpm;Engine|4-stroke Single;Displacement|233 cc;Bore x Stroke|67.0 x 66.0 mm;Compression Ratio|9.4:1;Valve System|SOHC, 2 valves;Fuel System|Fuel injection: ø32 mm x 1;Ignition|Digital;Starting|Electric;Cooling|Air-cooled;Lubrication|Forced lubrication, wet sump;Transmission|6-speed, return;Primary Reduction Ratio|2.871 (89/31);Gear Ratio 1st|3.000 (39/13);Gear Ratio 2nd|2.067 (31/15);Gear Ratio 3rd|1.556 (28/18);Gear Ratio 4th|1.261 (29/23);Gear Ratio 5th|1.040 (26/25);Gear Ratio 6th|0.852 (23/27);Final Reduction Ratio|3.214 (45/14);Clutch|Wet multi-disc, manual;Final Drive|Chain#####Frame|Perimeter, high-tensile steel;Front Suspension|ø37 mm telescopic fork;Rear Suspension|New Uni-Trak, single shock with adjustable spring preload;Front Wheel Travel|200 mm;Rear Wheel Travel|223 mm;Rake|24.6°;Trail|96 mm;Steering Angle (L/R)|45° / 45°;Front Tyre|2.75-21 45P;Rear Tyre|4.10-18 59P;Front Brake/s|ø265 mm petal disc;Front Caliper/s|Dual-piston;Rear Brake|ø220 mm petal disc;Rear Caliper|Single-piston#####Smartphone Connectivity|Yes;ABS (Anti-lock Brake System)|Yes;ERGO-FIT|Yes#####Dimensions (LxWxH)|2,090 x 845 x 1,140 mm;Wheelbase|1,365 mm;Road Clearance|240 mm;Seat Height|845 mm;Curb Weight*|131 kg;Estimated Dry Weight**|124 kg;Fuel Capacity|7.6 litres;Model Code|KLX233BVFNN
