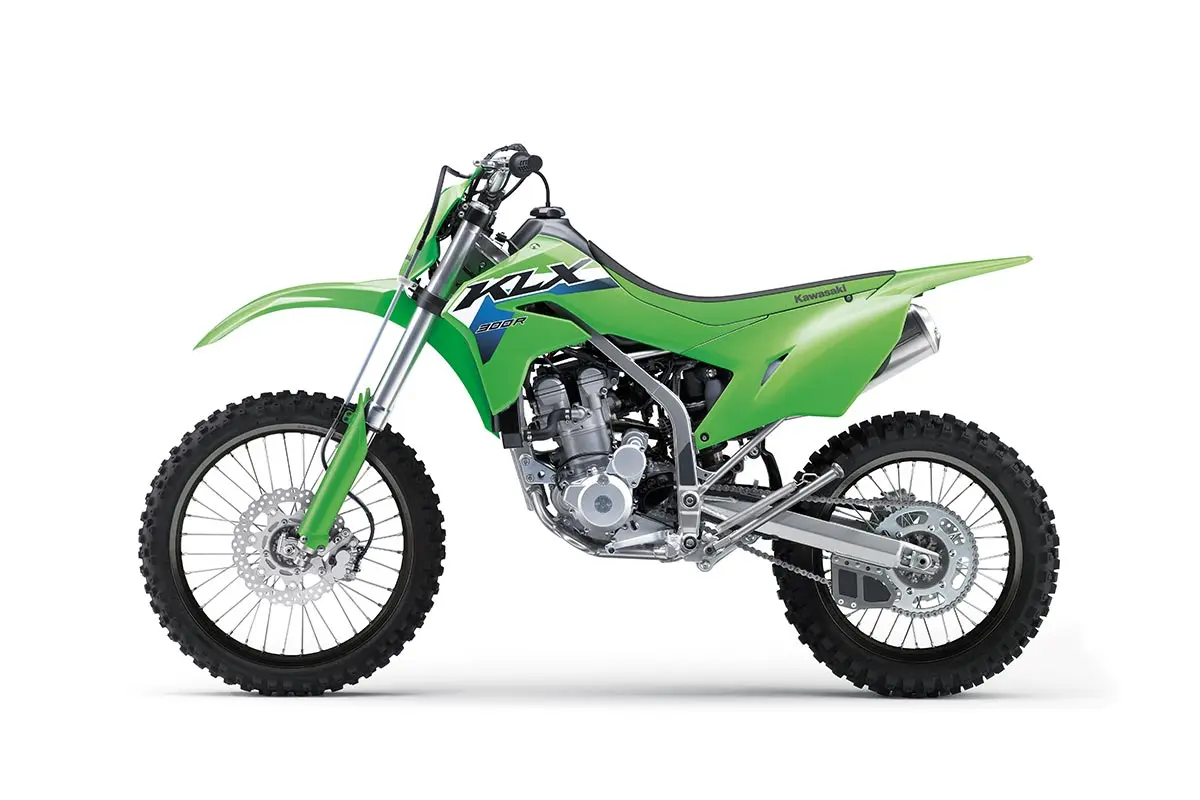

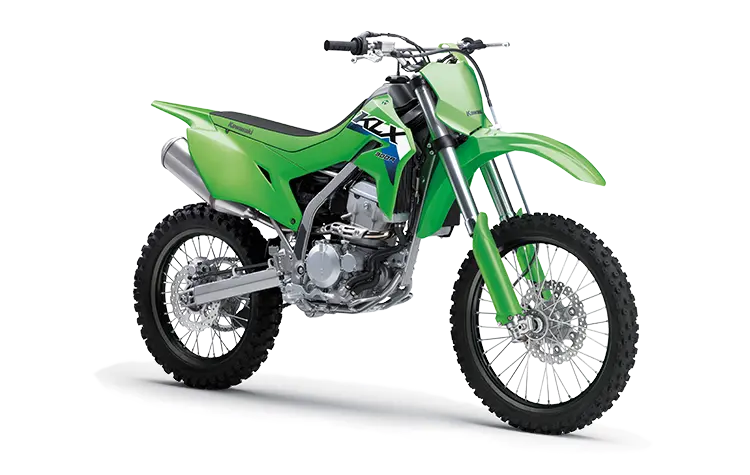

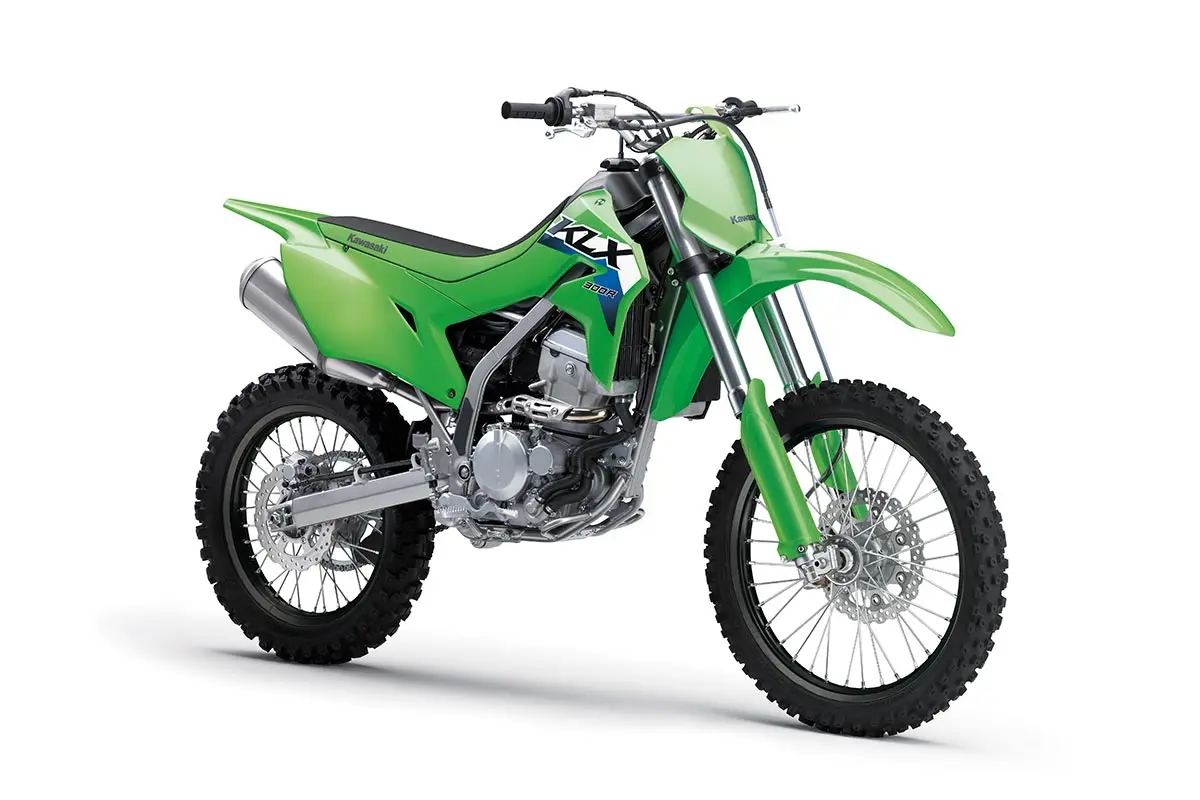

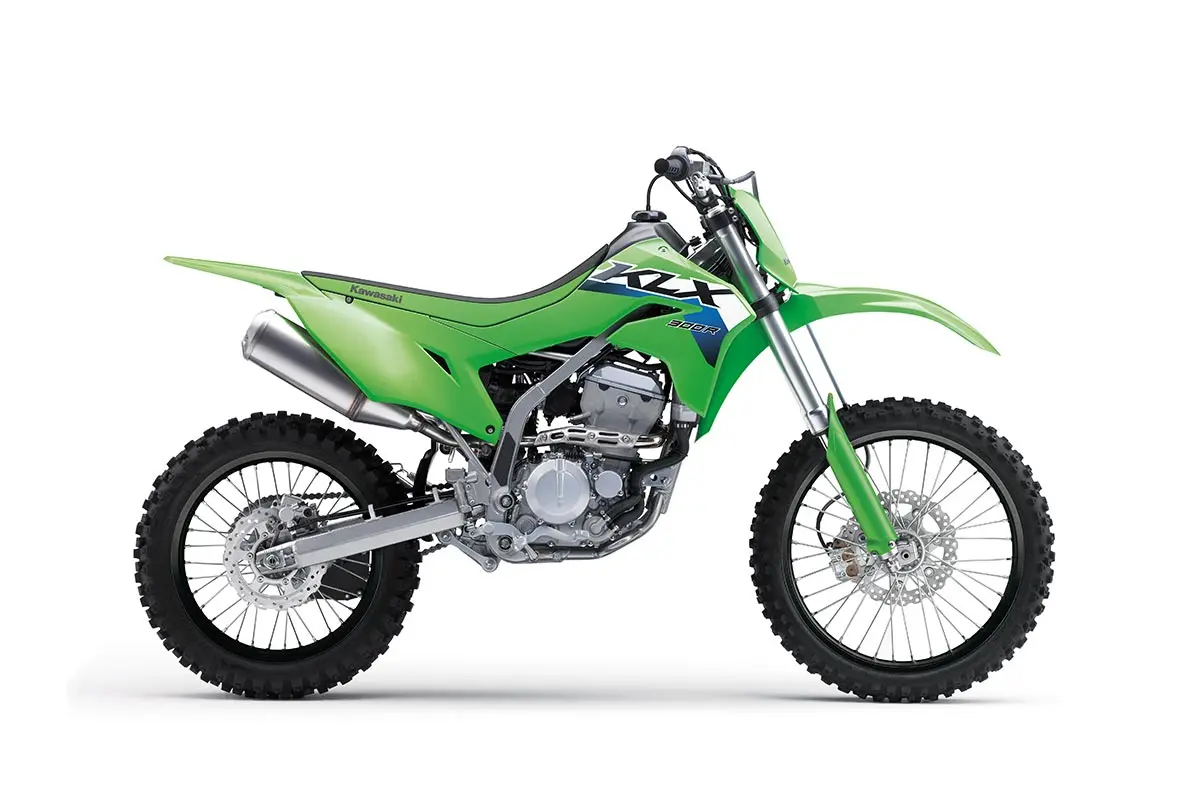

The KLX300R is the ultimate high-performance trail bike for off-road thrills, bridging the world between a weekend play bike and a full race bike. As the leader of the KLX lineup, the KLX300R combines the best of both engine and chassis performance to create the ultimate lightweight, fun off-road machine.
FEATURING:
292 cc liquid-cooled, fuel-injected, four-stroke DOHC Single
Lightweight perimeter frame
Trail-tuned long-travel suspension
ADDITIONAL VEHICLE FEATURES:
Recreational trail bike with high level of capability
Powerful petal-disc brakes front and rear
ERGO-FIT adjustability with 4-way handlebar positions
Full-size wheels
Hassle-free electric start
KX-inspired styling and ergonomics
128 kg curb weight* (120 kg estimated dry weight**)
Serious off-road fun starts with the fuel-injected 292 cc liquid-cooled four-stroke Single, delivering crisp response, quick-revving power and strong low-end torque. The KLX300R is built tough with an engine designed to withstand the rigours of hard trail riding.
NIMBLE CHASSIS
Lightweight Platform
A lightweight perimeter frame offers optimised rigidity for stability at speed while the short wheelbase facilitates agile handling. High ground clearance allows riders to more easily clear technical terrain features, resulting in confident trail riding.
TRAIL-TUNED SUSPENSION
Ride Any Trail
The KLX300R is built for serious play and is equipped with long-travel suspension to confidently handle the rigors of aggressive off-road riding.
WHEELS & BRAKES
Confident Control
Full-size wheels and powerful disc brakes make the KLX300R ready for tough off-road terrain.
Technical Specifications
Maximum Power
21.4 kW {29 PS} / 8,000 rpm
Maximum Torque
26.3 Nm {2.7 kgfm} / 7,000 rpm
Engine
4-stroke Single
Displacement
292 cc
Bore x Stroke
78.0 x 61.2 mm
Compression Ratio
11.1:1
Valve System
DOHC, 4 valves
Fuel System
Fuel injection: ø34 mm x 1
Ignition
Digital
Starting
Electric
Cooling
Liquid-cooled
Lubrication
Forced lubrication, wet sump
Transmission
6-speed, return
Primary Reduction Ratio
2.800 (84/30)
Gear Ratio 1st
3.000 (30/10)
Gear Ratio 2nd
2.000 (30/15)
Gear Ratio 3rd
1.500 (27/18)
Gear Ratio 4th
1.250 (25/20)
Gear Ratio 5th
1.050 (21/20)
Gear Ratio 6th
0.952 (20/21)
Final Reduction Ratio
3.571 (50/14)
Clutch
Wet multi-disc, manual
Final Drive
Chain
Frame
Perimeter, high tensile steel
Front Suspension
ø43 mm inverted fork with adjustable compression damping
Rear Suspension
Uni Trak, gas-charged shock with piggyback reservoir, adjustable compression and rebound damping, and adjustable spring preload
The KLX300R is the ultimate high-performance trail bike for off-road thrills, bridging the world between a weekend play bike and a full race bike. As the leader of the KLX lineup, the KLX300R combines the best of both engine and chassis performance to create the ultimate lightweight, fun off-road machine.
FEATURING:
292 cc liquid-cooled, fuel-injected, four-stroke DOHC Single
Lightweight perimeter frame
Trail-tuned long-travel suspension
ADDITIONAL VEHICLE FEATURES:
Recreational trail bike with high level of capability
Powerful petal-disc brakes front and rear
ERGO-FIT adjustability with 4-way handlebar positions
Full-size wheels
Hassle-free electric start
KX-inspired styling and ergonomics
128 kg curb weight* (120 kg estimated dry weight**)
content_description2
Power;Performance;Technology;Details#####Maximum Power|21.4 kW {29 PS} / 8,000 rpm;Maximum Torque|26.3 Nm {2.7 kgfm} / 7,000 rpm;Engine|4-stroke Single;Displacement|292 cc;Bore x Stroke|78.0 x 61.2 mm;Compression Ratio|11.1:1;Valve System|DOHC, 4 valves;Fuel System|Fuel injection: ø34 mm x 1;Ignition|Digital;Starting|Electric;Cooling|Liquid-cooled;Lubrication|Forced lubrication, wet sump;Transmission|6-speed, return;Primary Reduction Ratio|2.800 (84/30);Gear Ratio 1st|3.000 (30/10);Gear Ratio 2nd|2.000 (30/15);Gear Ratio 3rd|1.500 (27/18);Gear Ratio 4th|1.250 (25/20);Gear Ratio 5th|1.050 (21/20);Gear Ratio 6th|0.952 (20/21);Final Reduction Ratio|3.571 (50/14);Clutch|Wet multi-disc, manual;Final Drive|Chain#####Frame|Perimeter, high tensile steel;Front Suspension|ø43 mm inverted fork with adjustable compression damping;Rear Suspension|Uni Trak, gas-charged shock with piggyback reservoir, adjustable compression and rebound damping, and adjustable spring preload;Front Wheel Travel|285 mm;Rear Wheel Travel|285 mm;Rake|26.9°;Trail|109 mm;Steering Angle (L/R)|45° / 45°;Front Tyre|80/100-21 51M;Rear Tyre|100/100-18 59M;Front Brake/s|Semi-floating ø270 mm petal disc;Front Caliper/s|Dual-piston;Rear Brake|ø240 mm petal disc;Rear Caliper|Single-piston#####ERGO-FIT|Yes#####Dimensions (LxWxH)|2,120 x 825 x1,245 mm;Wheelbase|1,435 mm;Road Clearance|300 mm;Seat Height|900 mm;Curb Weight*|128 kg;Estimated Dry Weight**|120 kg;Fuel Capacity|7.9 litres;Model Code|KLX300CTFNN
