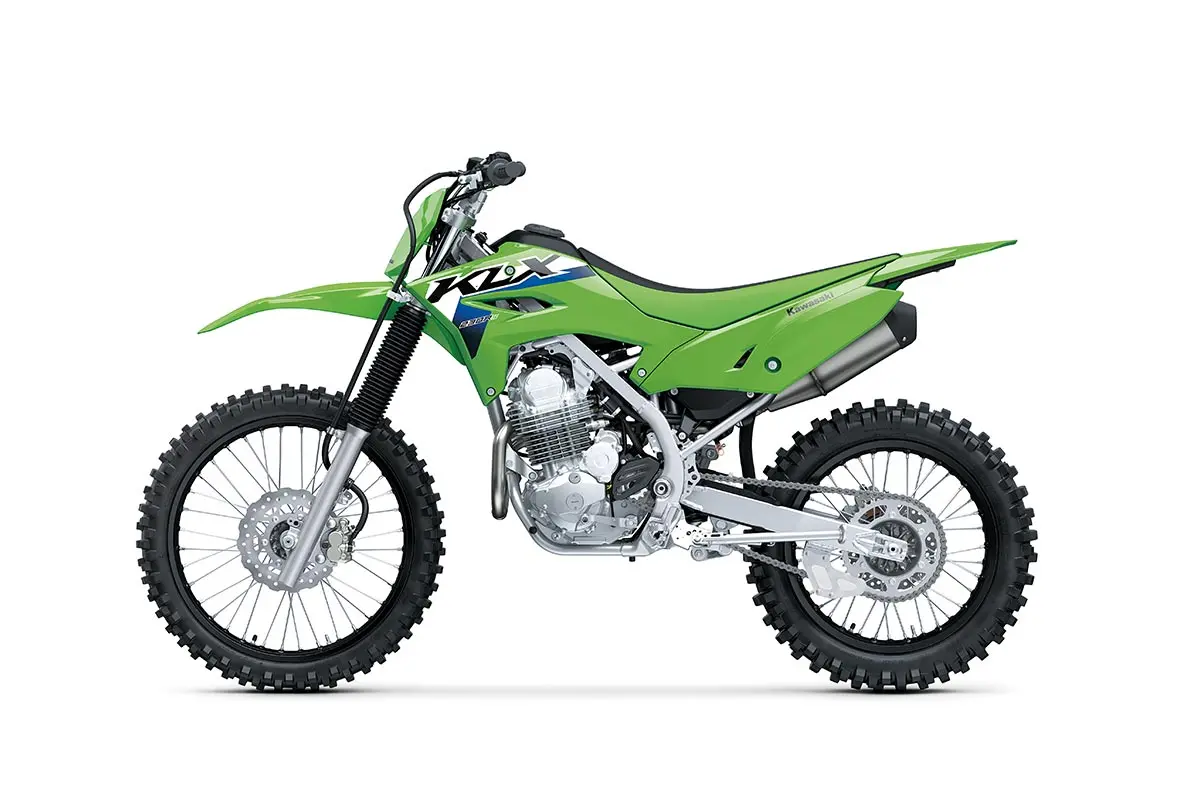

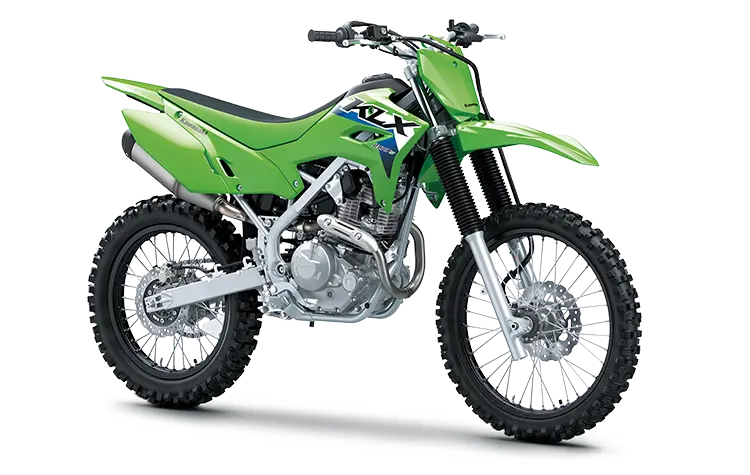

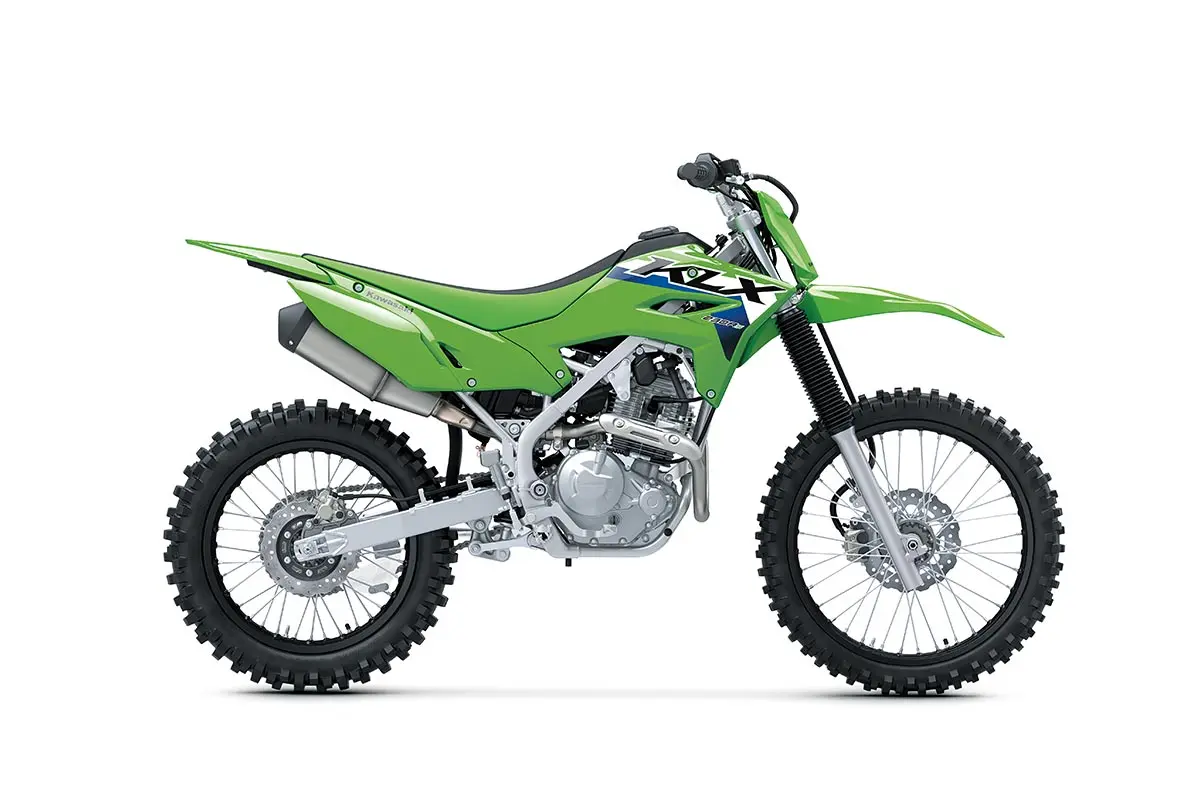

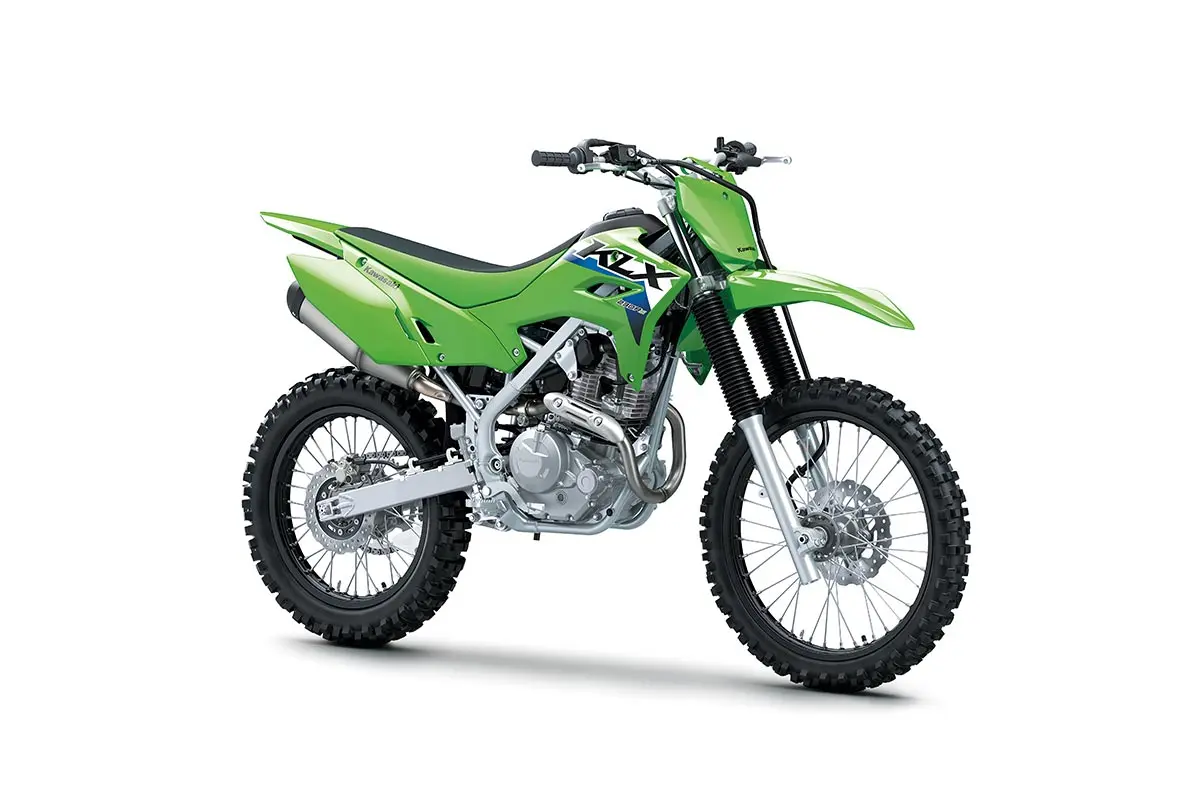

The full-size fun of the KLX230R trail bike means it’s time to Get Out and Play. Take on terrain with nimble handling and plenty of power, while kicking up some serious dirt along the way. Long-travel suspension paired with improved low-speed control gives this bike a sporty feel that stands out among the rest. Finished with styling inspired by the KX lineup, the highly capable, lightweight package of the KLX230R brings a heavy dose of fun to every off-road ride.
FEATURING:
233 cc fuel-injected, air-cooled four-stroke Single
primary balancer for smoother engine character
compact perimeter frame with lower seat height
larger capacity fuel tank
Trail-tuned long-travel suspension
ADDITIONAL VEHICLE FEATURES:
Convenient electric start
Keyed ignition and fuel tank cap
KX-inspired styling with smooth-design bodywork
Lower seat height than KLX230R (875 mm vs 905 mm)
Rear shock with stepless preload adjustability
Full-size wheels with rim locks
Instrumentation featuring low-fuel and FI warning lamps
119 kg curb weight* (112 kg estimated dry weight**)
When the road is challenging, the new KLX230R S is ready with long wheel travel and ample ground clearance. The great performance of the tried-and-true engine has been augmented with a balancer for an even more enjoyable and useful off-road machine, and a larger fuel tank means more time on the trail between fill-ups.
COMPACT, LIGHTWEIGHT, MANOEUVRABLE
Off-Road Enjoyment for a Wide Range of Riders
Providing a light, manoeuvrable package has been a key consideration since the KLX230R was originally designed. Its simple air-cooled engine and easy handling perimeter frame contribute to a compact package, while the balance between the engine and frame results in performance that can be enjoyed by a wide range of riders.
The full-size fun of the KLX230R trail bike means it’s time to Get Out and Play. Take on terrain with nimble handling and plenty of power, while kicking up some serious dirt along the way. Long-travel suspension paired with improved low-speed control gives this bike a sporty feel that stands out among the rest. Finished with styling inspired by the KX lineup, the highly capable, lightweight package of the KLX230R brings a heavy dose of fun to every off-road ride.
FEATURING:
233 cc fuel-injected, air-cooled four-stroke Single
primary balancer for smoother engine character
compact perimeter frame with lower seat height
larger capacity fuel tank
Trail-tuned long-travel suspension
ADDITIONAL VEHICLE FEATURES:
Convenient electric start
Keyed ignition and fuel tank cap
KX-inspired styling with smooth-design bodywork
Lower seat height than KLX230R (875 mm vs 905 mm)
Rear shock with stepless preload adjustability
Full-size wheels with rim locks
Instrumentation featuring low-fuel and FI warning lamps
119 kg curb weight* (112 kg estimated dry weight**)
content_description2
Power;Performance;Technology;Details#####Maximum Power|13.8 kW {19 PS} / 8,000 rpm;Maximum Torque|19.6 Nm {2.0 kgfm} / 6,400 rpm;Engine|4-stroke Single;Displacement|233 cc;Bore x Stroke|67.0 x 66.0 mm;Compression Ratio|9.4:1;Valve System|SOHC, 2 valves;Fuel System|Fuel injection: ø32 mm x 1;Ignition|Digital;Starting|Electric;Cooling|Air-cooled;Lubrication|Forced lubrication, wet sump;Transmission|6-speed, return;Primary Reduction Ratio|2.871 (89/31);Gear Ratio 1st|3.000 (39/13);Gear Ratio 2nd|2.067 (31/15);Gear Ratio 3rd|1.556 (28/18);Gear Ratio 4th|1.261 (29/23);Gear Ratio 5th|1.040 (26/25);Gear Ratio 6th|0.852 (23/27);Final Reduction Ratio|3.538 (46/13);Clutch|Wet multi-disc, manual;Final Drive|Chain#####Frame|Perimeter, high-tensile steel;Front Suspension|ø37 mm telescopic fork;Rear Suspension|New Uni Trak with adjustable spring preload;Front Wheel Travel|220 mm;Rear Wheel Travel|217 mm;Rake|24.6°;Trail|100 mm;Steering Angle (L/R)|45° / 45°;Front Tyre|80/100-21 51M;Rear Tyre|100/100-18 59M;Front Brake/s|ø240 mm petal disc;Front Caliper/s|Dual-piston;Rear Brake|ø220 mm petal disc;Rear Caliper|Single-piston#####ERGO-FIT|Yes#####Dimensions (LxWxH)|2,035 x 845 x 1,185 mm;Wheelbase|1,355 mm;Road Clearance|270 mm;Seat Height|875 mm;Curb Weight*|119 kg;Estimated Dry Weight**|112 kg;Fuel Capacity|7.6 litres;Model Code|KLX232PTFNN
