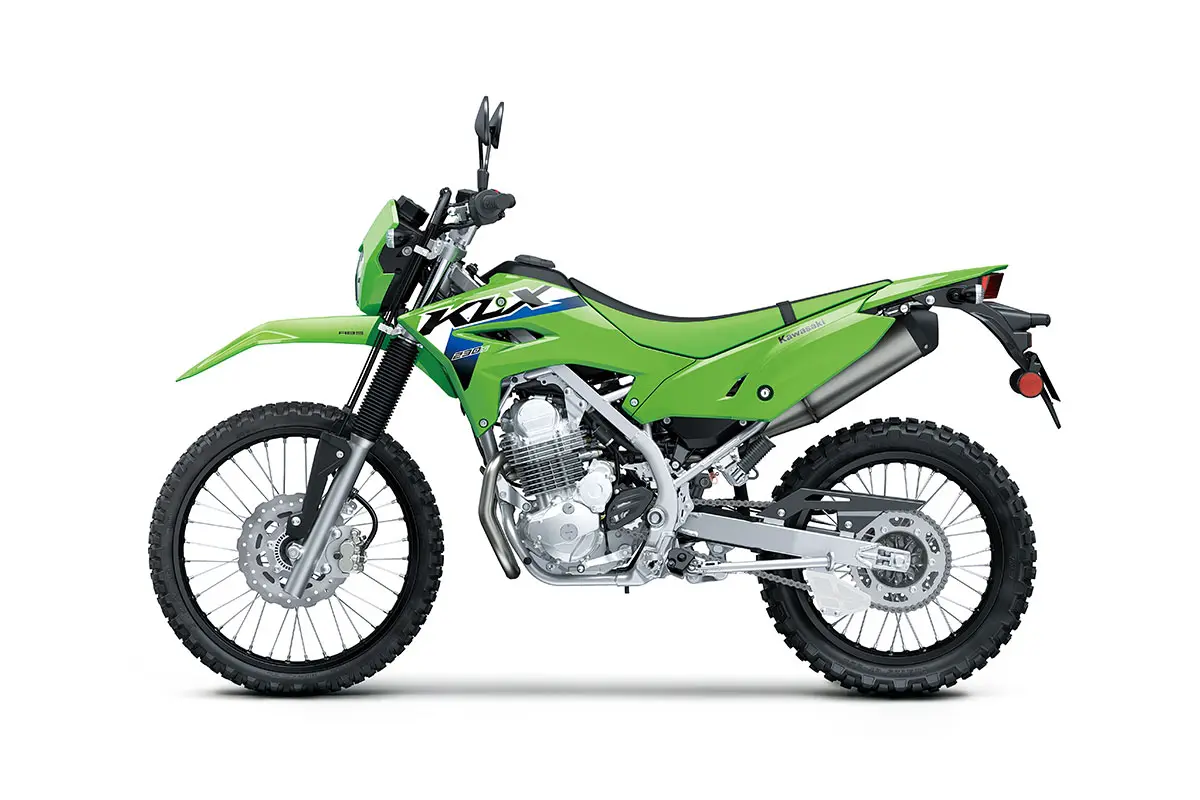

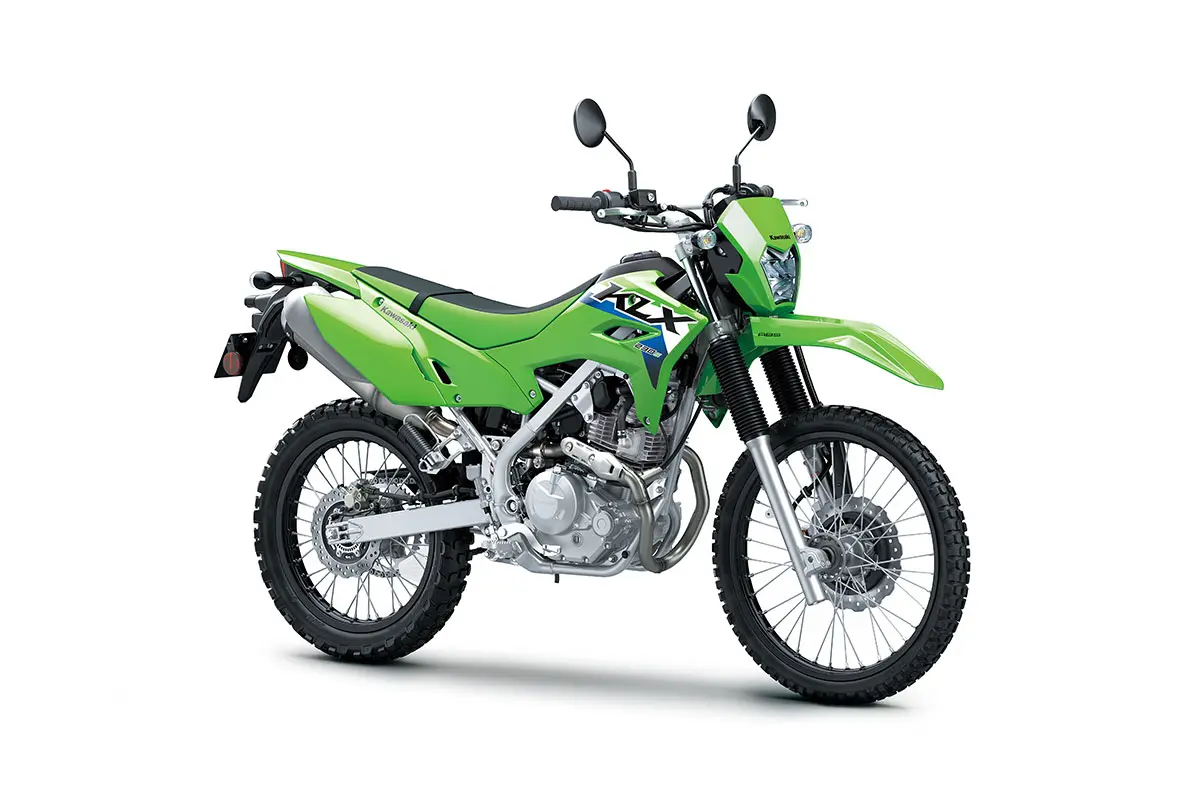

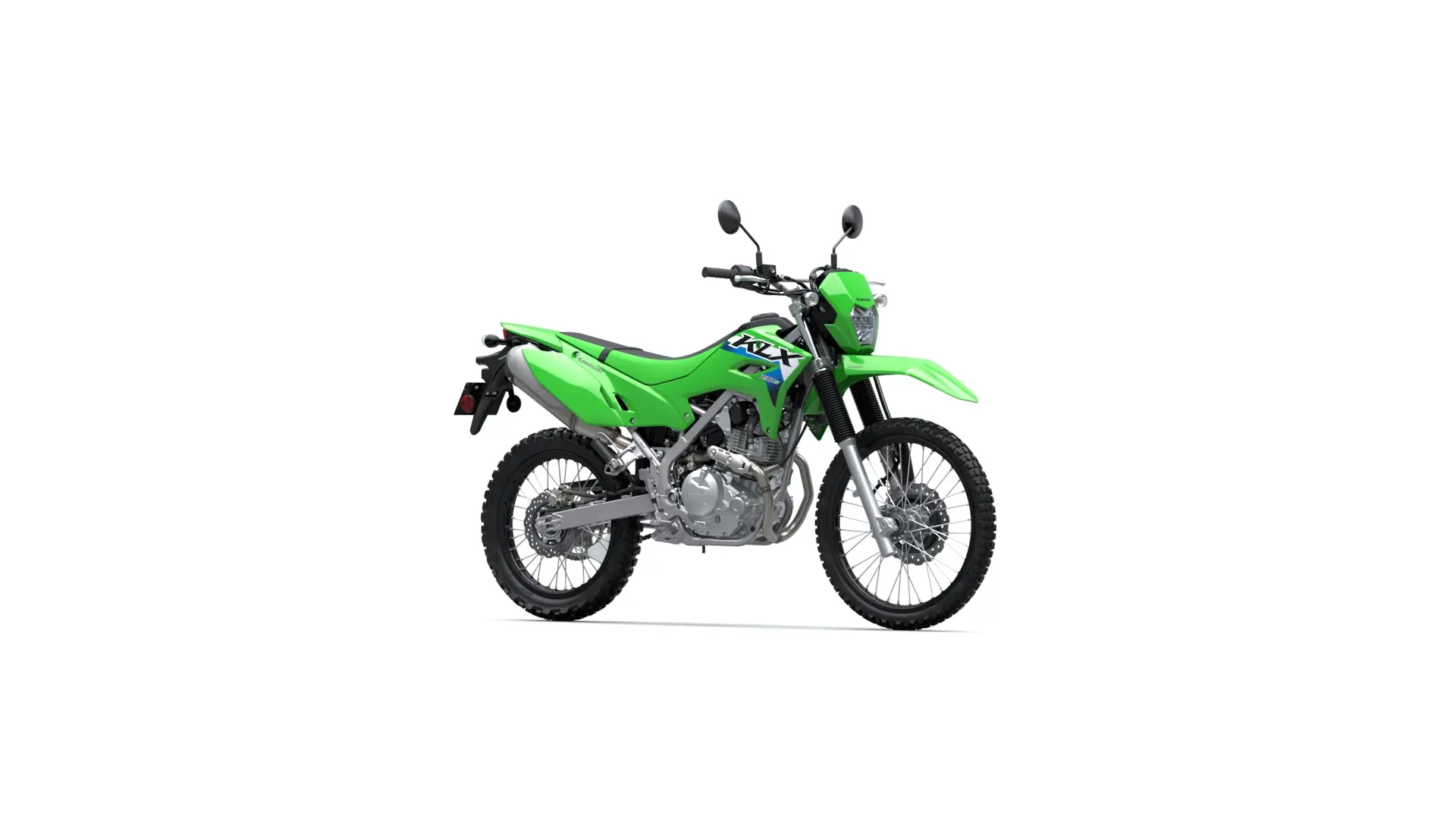

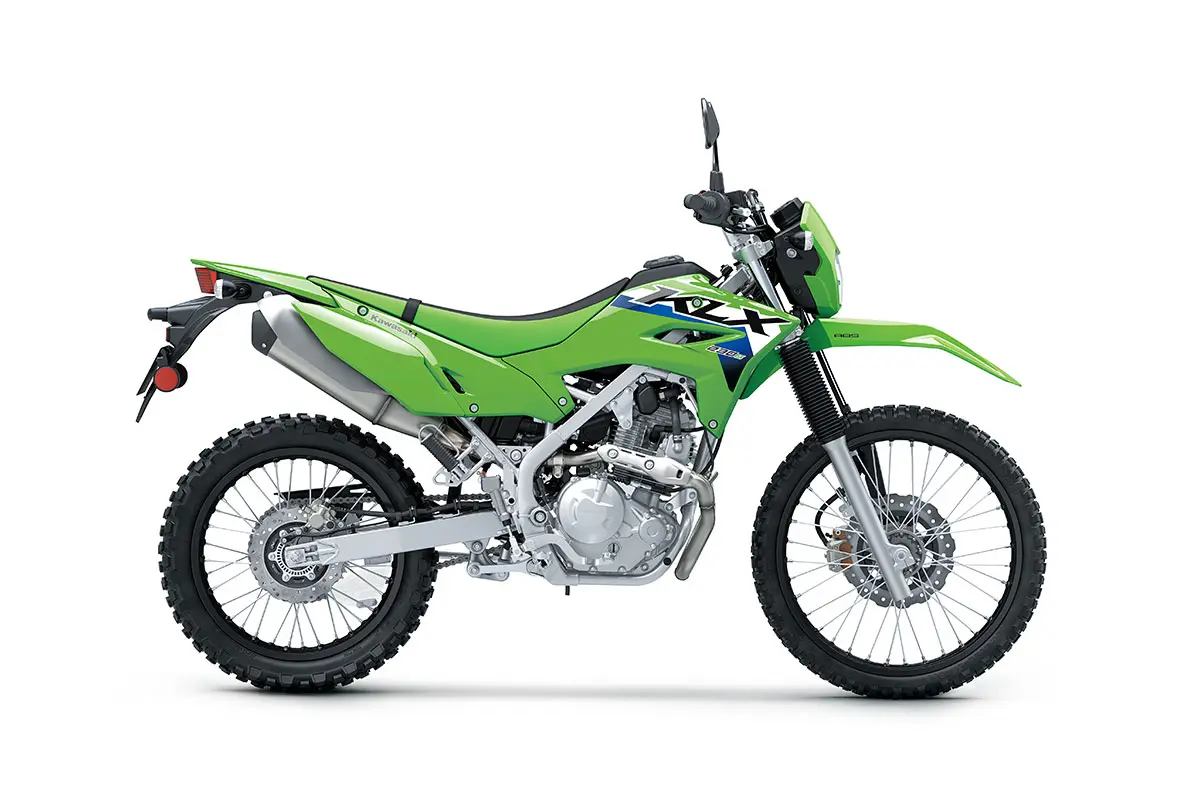

The KLX230 extends the playing field with the thrill of dual-sport performance that's ready to conquer both on- and off-road. This agile bike features a quick-revving 233 cc engine, lightweight chassis, long-travel suspension, and ample ground clearance for enhanced capability on the roads or trails. Turn wherever you go into the ultimate playground with the bike that delivers a thrilling ride on paved streets, dirt trails, and beyond.
FEATURING:
233 cc fuel-injected air-cooled four-stroke single with Electric Start
Long-travel suspension and ample ground clearance
ABS system with ON/OFF function
Smartphone connectivity via RIDEOLOGY the App
ADDITIONAL VEHICLE FEATURES:
Learner approved model (LAMS)
KX-inspired styling and ergonomics
Low Seat with two-tone colouring
Long wheel travel: 220/223 mm (front/rear)
845 mm seat height
Full-size wheels
Light chassis: 132 kg (125 kg estimated dry weight**)
MORE CAPABLE, MORE COMFORTABLE OFF-ROAD PERFORMANCE
Even more ready to play
When the road is challenging, the KLX230 S is ready with longer wheel travel, and ample ground clearance. Cancellable front/rear ABS offers the option to cater to rider preference when riding off-road. The great all-around performance of the tried-and-true engine has been augmented for an even more enjoyable and useful dual-purpose machine.
COMPACT, LIGHTWEIGHT, MANOEUVRABLE
Confidence-inspiring for a wide range of riders
Providing a light, manoeuvrable package has been a key consideration since the KLX230 was originally designed. Its simple air-cooled engine and easy handling perimeter frame contribute to a compact package, while the balance between the engine and frame results in performance that can be enjoyed by a wide range of riders.
KX-INSPIRED STYLING
Aggressive and Agile
Kawasaki’s new KX450 and KX250 models were the inspiration for the KLX230 S’s all-new smooth-surface bodywork and black wheel rims, all contributing to an offroad-racing inspired look aligned with Kawasaki’s famous KX race machines. A more compact LED headlight cover lends a sleek, modern look to the front end, while a two-tone seat adds a sophisticated image.
PRACTICAL FEATURES
Versatility for road and trail
All-digital instrumentation is complemented by smartphone connectivity, adding a modern touch. 7.6 litre fuel tank helps riders enjoy hours of trail riding between fill-ups. Standard passenger footpegs allow you to share the fun. And a convenient toolbox is located behind the left side cover.
The KLX230 extends the playing field with the thrill of dual-sport performance that's ready to conquer both on- and off-road. This agile bike features a quick-revving 233 cc engine, lightweight chassis, long-travel suspension, and ample ground clearance for enhanced capability on the roads or trails. Turn wherever you go into the ultimate playground with the bike that delivers a thrilling ride on paved streets, dirt trails, and beyond.
FEATURING:
233 cc fuel-injected air-cooled four-stroke single with Electric Start
Long-travel suspension and ample ground clearance
ABS system with ON/OFF function
Smartphone connectivity via RIDEOLOGY the App
ADDITIONAL VEHICLE FEATURES:
Learner approved model (LAMS)
KX-inspired styling and ergonomics
Low Seat with two-tone colouring
Long wheel travel: 220/223 mm (front/rear)
845 mm seat height
Full-size wheels
Light chassis: 132 kg (125 kg estimated dry weight**)
content_description2
Power;Performance;Technology;Details#####Maximum Power|13.2 kW {18 PS} / 8,000 rpm;Maximum Torque|18.0 Nm {1.8 kgfm} / 6,400 rpm;Engine|4-stroke Single;Displacement|233 cc;Bore x Stroke|67.0 x 66.0 mm;Compression Ratio|9.4:1;Valve System|SOHC, 2 valves;Fuel System|Fuel injection: ø32 mm x 1;Ignition|Digital;Starting|Electric;Cooling|Air-cooled;Lubrication|Forced lubrication, wet sump;Transmission|6-speed, return;Primary Reduction Ratio|2.871 (89/31);Gear Ratio 1st|3.000 (39/13);Gear Ratio 2nd|2.067 (31/15);Gear Ratio 3rd|1.556 (28/18);Gear Ratio 4th|1.261 (29/23);Gear Ratio 5th|1.040 (26/25);Gear Ratio 6th|0.852 (23/27);Final Reduction Ratio|3.214 (45/14);Clutch|Wet multi-disc, manual;Final Drive|Chain#####Frame|Perimeter, high-tensile steel;Front Suspension|ø37 mm telescopic fork;Rear Suspension|New Uni Trak with adjustable spring preload;Front Wheel Travel|200 mm;Rear Wheel Travel|223 mm;Rake|24.6°;Trail|96 mm;Steering Angle (L/R)|45° / 45°;Front Tyre|2.75-21 45P;Rear Tyre|4.10-18 59P;Front Brake/s|ø265 mm petal disc;Front Caliper/s|Dual-piston;Rear Brake|ø220 mm petal disc;Rear Caliper|Single-piston#####Smartphone Connectivity|Yes;ABS (Anti-lock Brake System)|Yes;ERGO-FIT|Yes#####Dimensions (LxWxH)|2,080 x 845 x 1,140 mm;Wheelbase|1,365 mm;Road Clearance|240 mm;Seat Height|845 mm;Curb Weight*|132 kg;Estimated Dry Weight**|125 kg;Fuel Capacity|7.6 litres;Model Code|KLX232CTFNN
