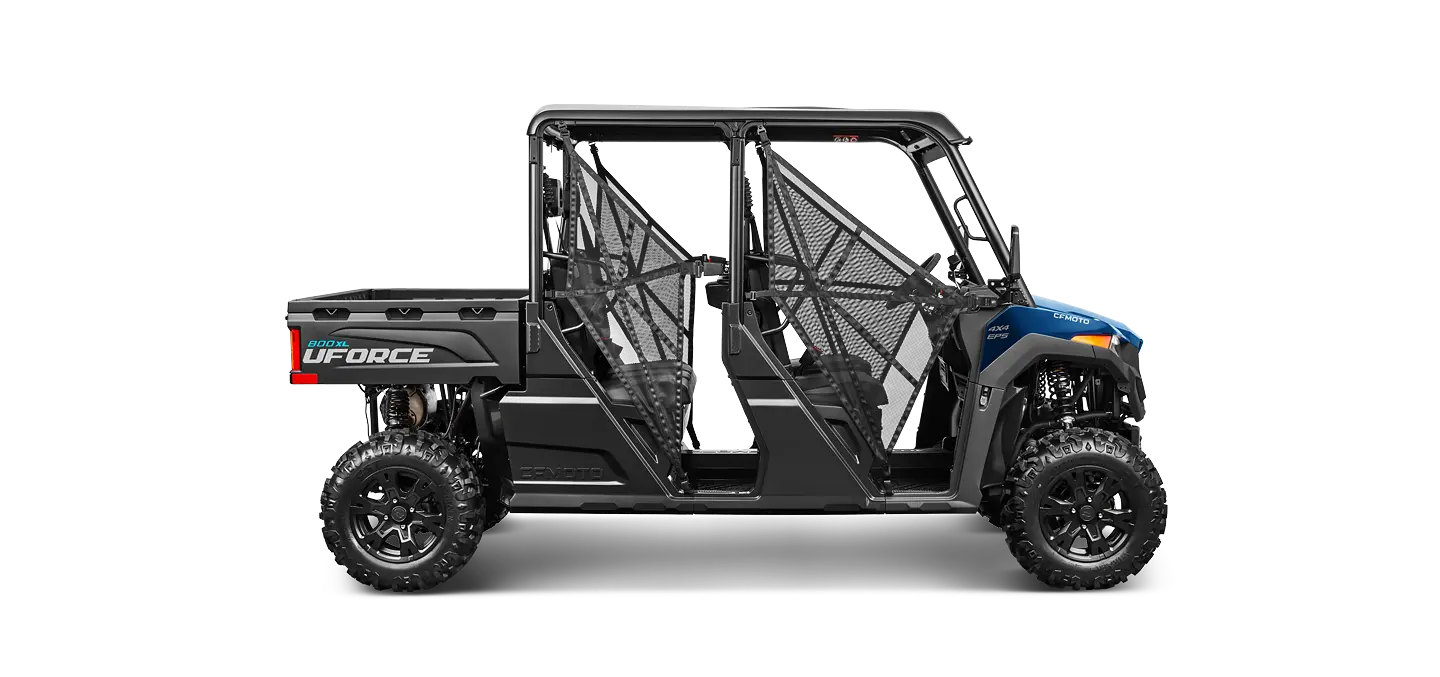

The UFORCE 800 EPS XL is CFMOTO’s middleweight XL model.
Based on the popular UFORCE 600 platform, its chassis has been extended and strengthened — including upgraded suspension, steering components and increased ground clearance to accommodate the longer wheelbase. The result is a new mid‑sized 4‑seater UTV powered by CFMOTO’s proven 800cc V‑twin engine and featuring an all‑new CFMOTO CVT system for smoother driving and easier working.
This middleweight XL model further expands CFMOTO’s growing crew range, giving customers three attractive multi‑seat options to choose from.
* Overseas model displayed with optional accessories.

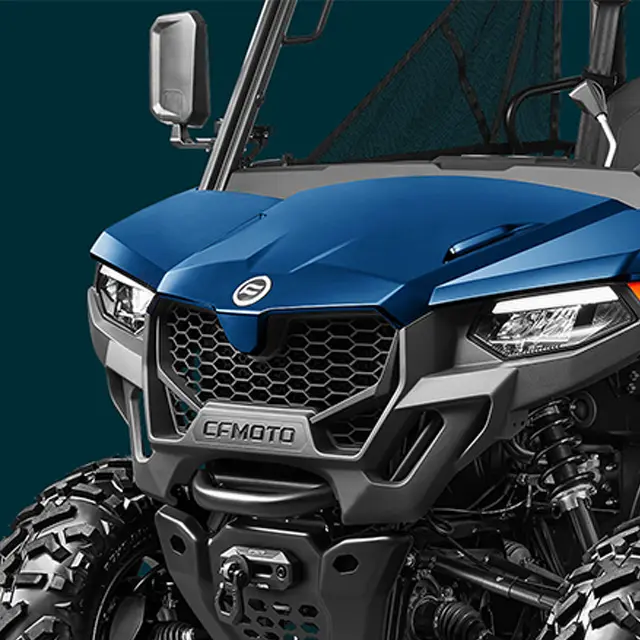

Bigger power, with an 800cc V-twin engine producing 65hp to easily move your crew and more. The UFORCE 800 XL features ride-by-wire technology and has two power modes, NORMAL or WORK for a smooth and workable power output.
A new centre positioned air-intake and a new exhaust system to maximise performance.

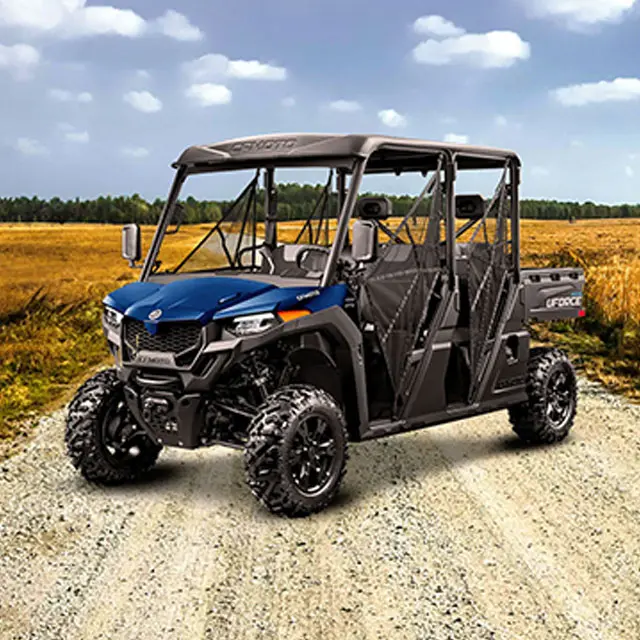

CFMOTO CVT
CFMOTO in-house design for smoother driving, easier working. Enhanced CVT cooling, improved belt life and electronic driver alert.
Low-Speed Smoothness:
CFMOTO's CVT System provides an ultra-smooth driving experience at low speeds.
Optimised Slider Design:
Steel sliders are used instead of nylon sliders, significantly reducing the impact of temperature variations on performance and longevity.
Efficient Temperature Regulation:
The CVT maintains an optimal internal temperature, tailored specifically for a Gross Vehicle Weight of 1.7 tons, outperforming competitors with internal temperatures kept below 95ºC.

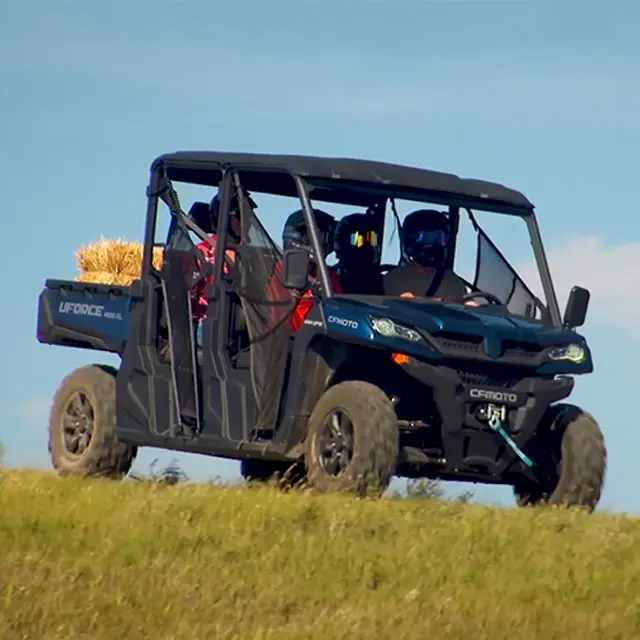

ROOM FOR 4
Dual bench seat configuration with room to fit four adults, comfortably.
Handy integrated USB/12V outlets are located both front and rear, plus plenty of accessible storage areas for the crew on board.
UFORCE 1000 XL pictured

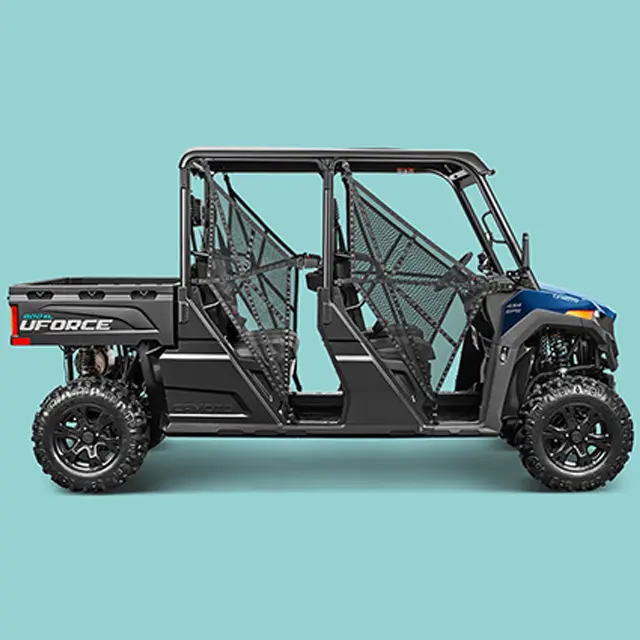

LONG WHEELBASE
Larger 27-inch tyres and increased suspension travel have lifted the long wheelbase UTV to provide a greater ground clearance of 300mm

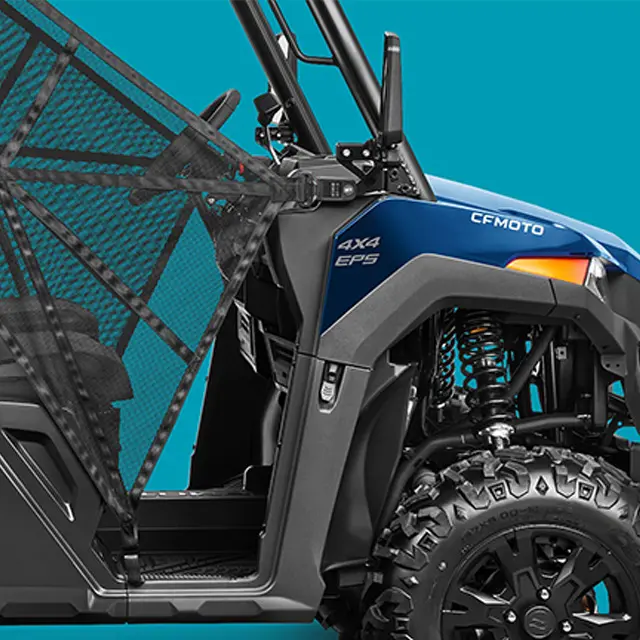

TOUGHER STEERING AND SUSPENSION
CFMOTO has factored in the increased stresses on the XL with stiffer springs and more robust steering components.

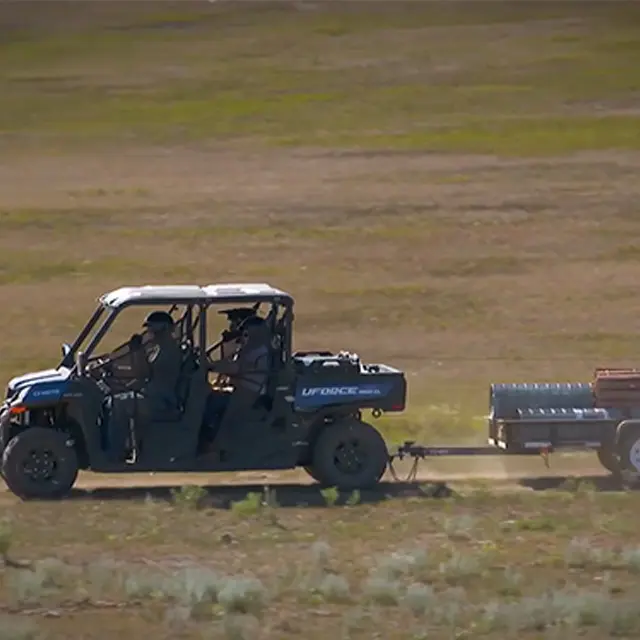

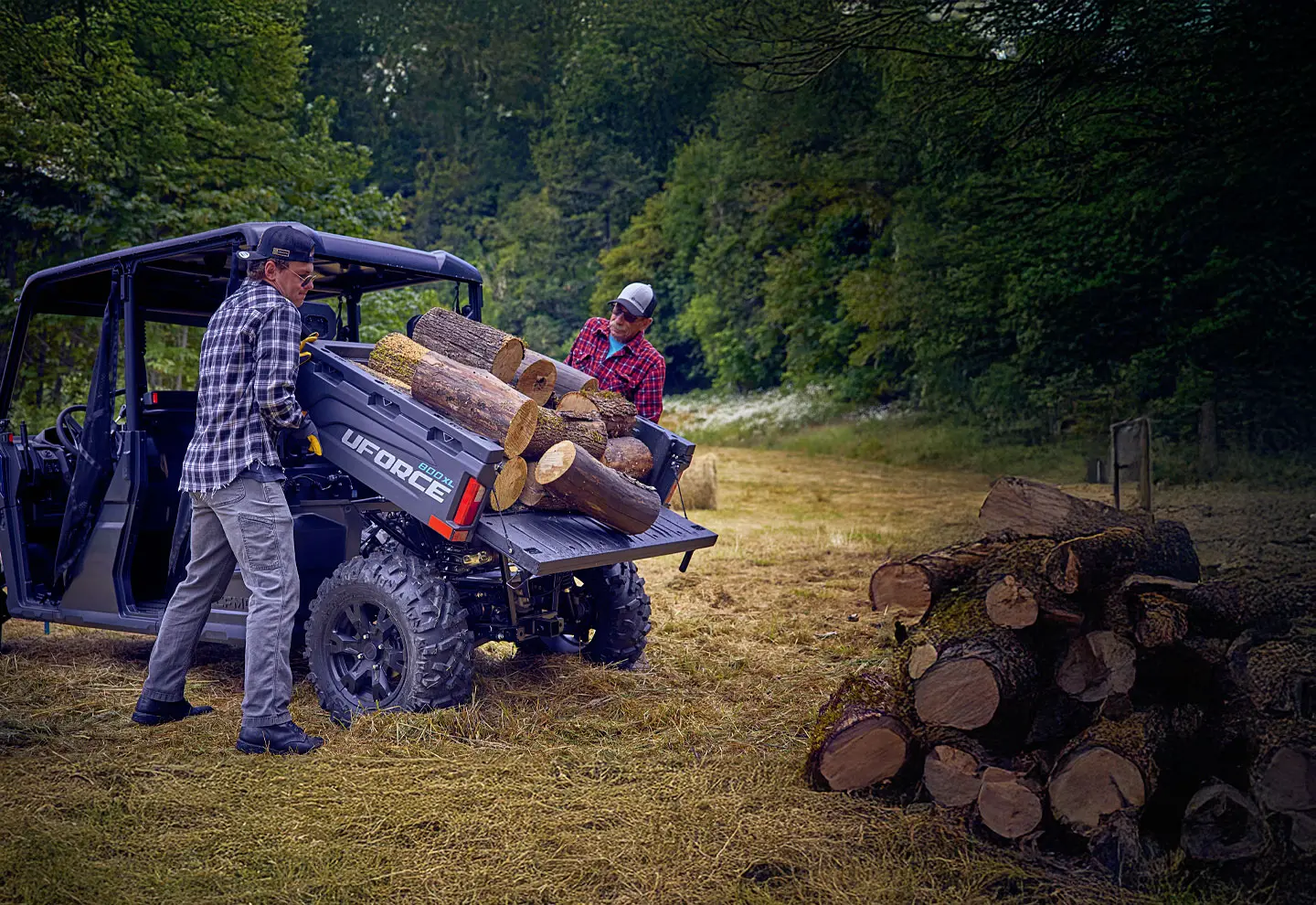

TIME TO WORK
680kg tow capacity and a 300kg rear cargo tray capacity make the UFORCE 800 XL a serious addition to any workplace. A big 40 litre tank allows for greater range and less fill ups when on the job.
UFORCE 1000 XL pictured

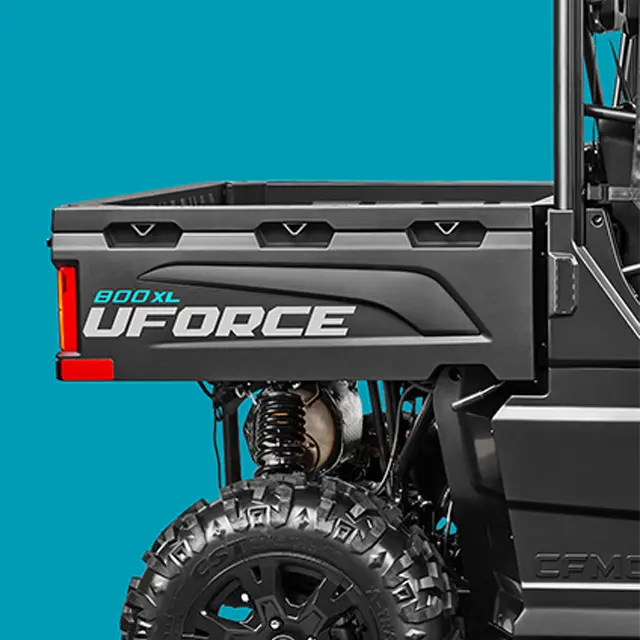

WELL-ROUNDED PACKAGE
The UFORCE 800 XL adds to the range with superior power, greater versatility, enhanced comfort and now with room to carry four.

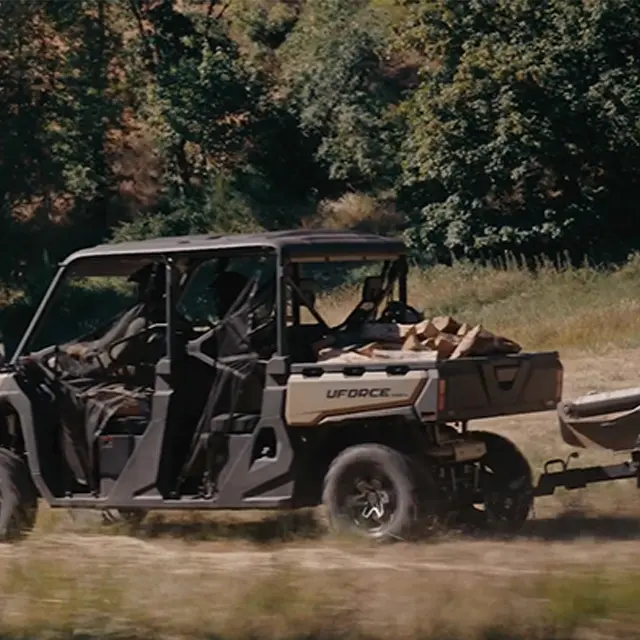

SUPPORT YOU CAN TRUST
Trusted by more than 50,000 Aussie farmers, CFMOTO is a brand you can rely on. The UFORCE 800 XL is backed by a two-year warranty and supported by an 80-plus national dealer network to keep you going 24/7.
Technical Specifications
Engine type
V-twin, liquid cooled, 4-stroke, SOHC, 8-valve
Displacement
800cc
Maximum power
63hp at 7,000rpm
Maximum torque
69.8Nm at 5,500rpm
Fuel system
Bosch EFI with two power modes NORMAL or WORK
Transmission
CFMOTO CVT
Drive
H-L-N-R-Park
4WD
2WD/4WD
Differential
Fixed rear differential
Downhill Assist
Electronic assist hill descent control (DAC)
Steering
Power steering (EPS)
Suspension front
Dual A-arm, with 225mm of travel
Suspension rear
Dual A-arm, with 225mm of travel
Shock absorber
Shock absorbers with compression/rebound adjustment
The UFORCE 800 EPS XL is CFMOTO’s middleweight XL model.
Based on the popular UFORCE 600 platform, its chassis has been extended and strengthened — including upgraded suspension, steering components and increased ground clearance to accommodate the longer wheelbase. The result is a new mid‑sized 4‑seater UTV powered by CFMOTO’s proven 800cc V‑twin engine and featuring an all‑new CFMOTO CVT system for smoother driving and easier working.
This middleweight XL model further expands CFMOTO’s growing crew range, giving customers three attractive multi‑seat options to choose from.
* Overseas model displayed with optional accessories.
content_description2
Engine & Transmission;Suspension, Brakes & Tyres;Dimensions & Load;Highlights#####Engine type|V-twin, liquid cooled, 4-stroke, SOHC, 8-valve;Displacement|800cc;Maximum power|63hp at 7,000rpm;Maximum torque|69.8Nm at 5,500rpm;Fuel system|Bosch EFI with two power modes NORMAL or WORK;Transmission|CFMOTO CVT;Drive|H-L-N-R-Park;4WD|2WD/4WD;Differential|Fixed rear differential;Downhill Assist|Electronic assist hill descent control (DAC);Steering|Power steering (EPS)#####Suspension front|Dual A-arm, with 225mm of travel;Suspension rear|Dual A-arm, with 225mm of travel;Shock absorber|Shock absorbers with compression/rebound adjustment;Brakes|All four hydraulic disc brakes;Wheels|14-inch alloy rims;Tyres|27-inch tyres#####Dimensions (L/W/H)|3640 x 1525 x 2007mm;Cargo tray (D/W/H)|870 x 1300 x 275mm;Wheelbase|2770mm;Ground clearance|300mm;Wet weight|775kg;Towing capacity|680kg;Cargo tray capacity|300kg;Roll Cage|ROPS-certified;Fuel Capacity|40L;Persons|Four#####Colours|Twilight Blue;Winch|4500lb with nylon rope;Warranty|Two Year Warranty
