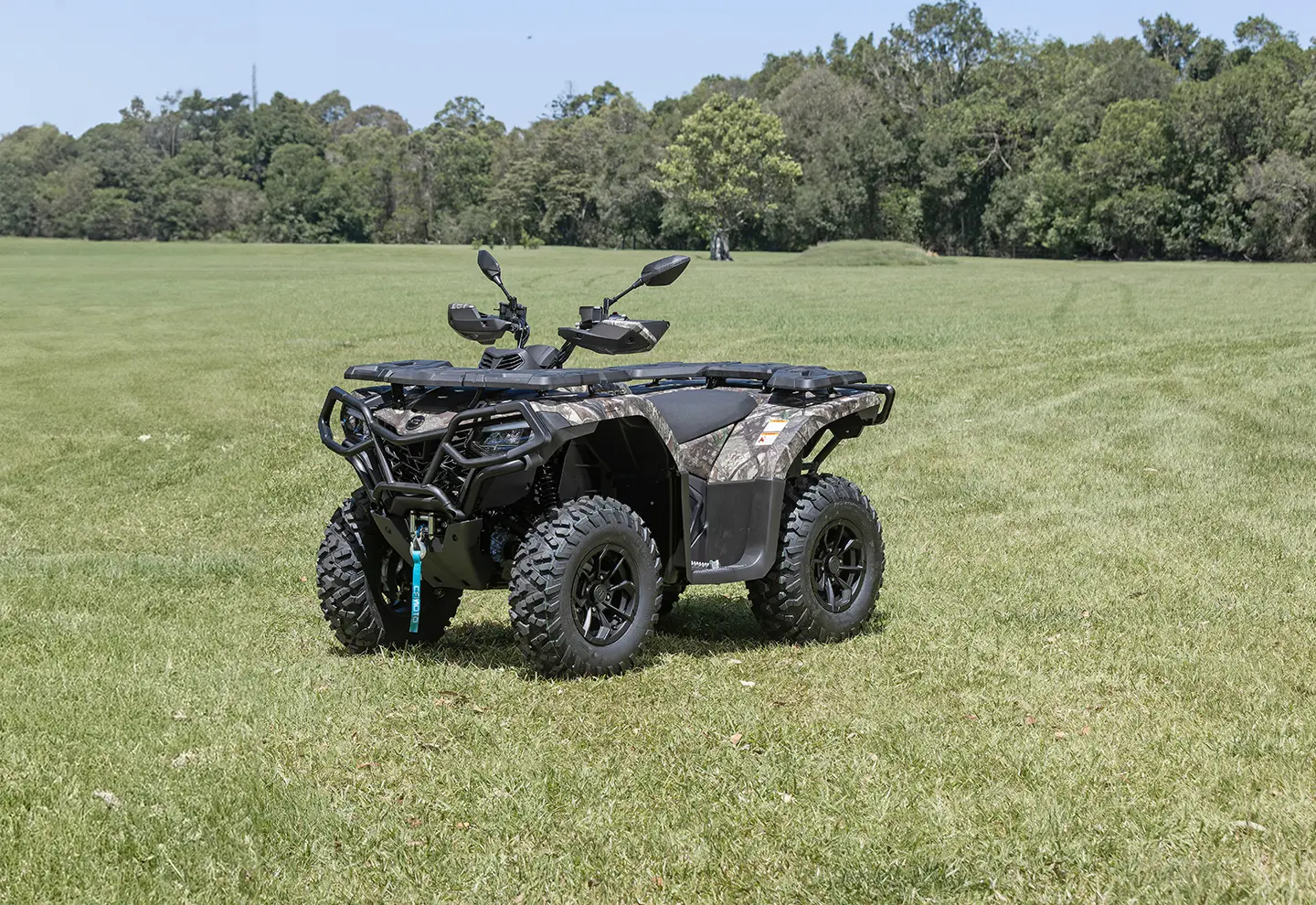

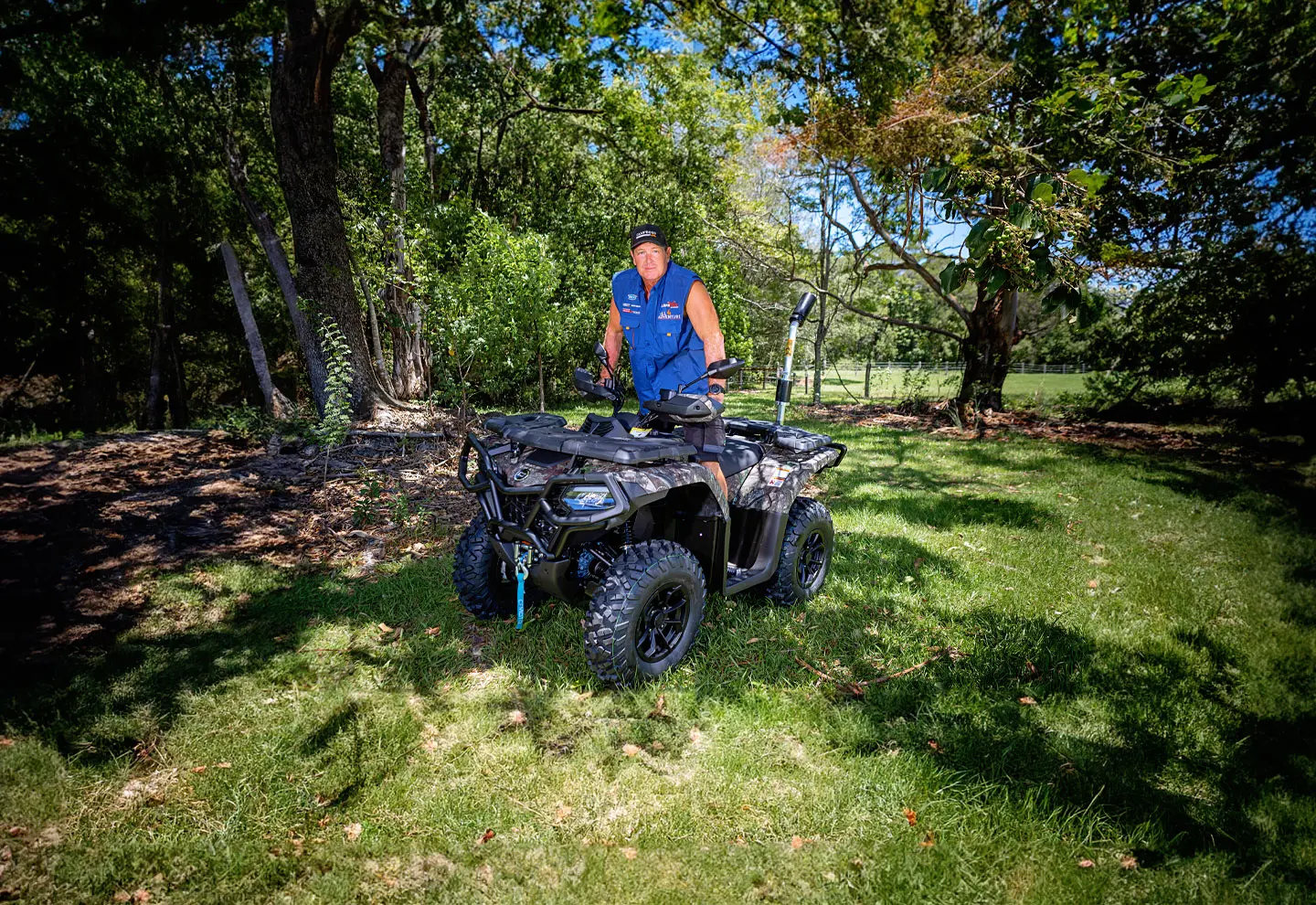

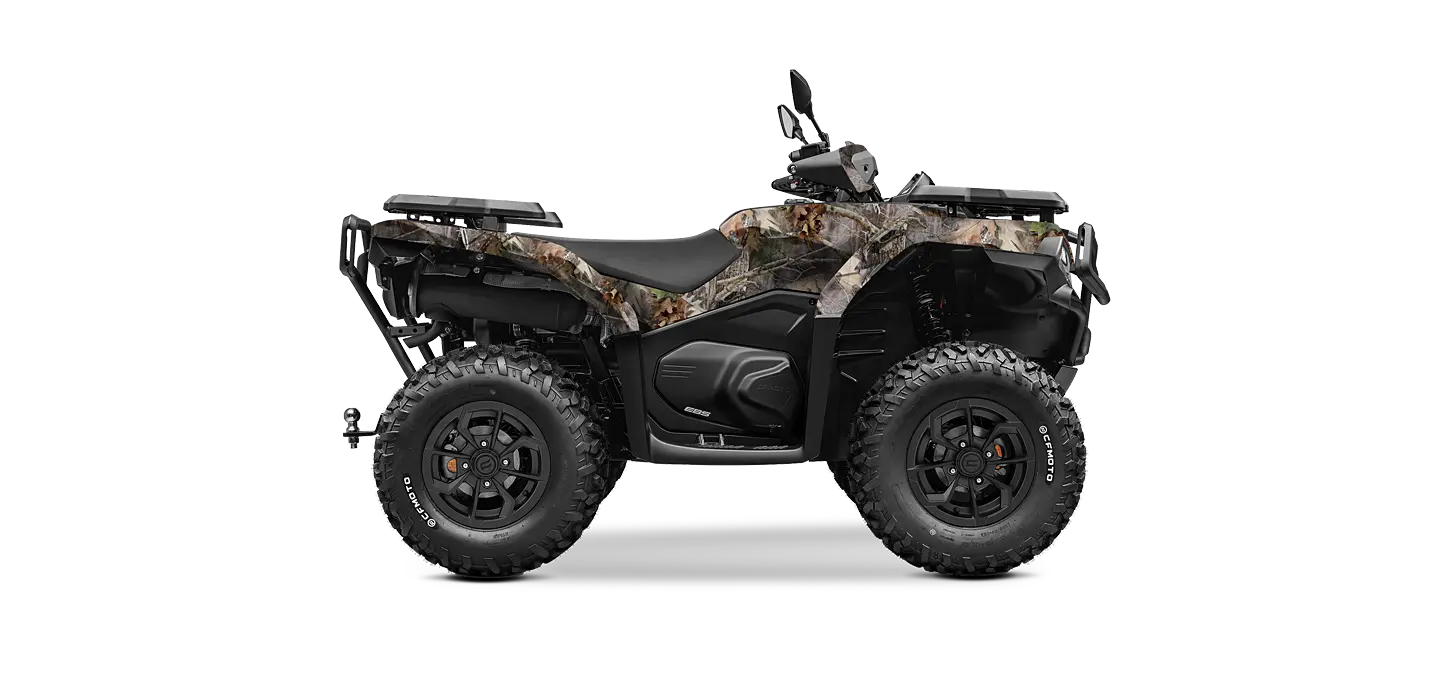

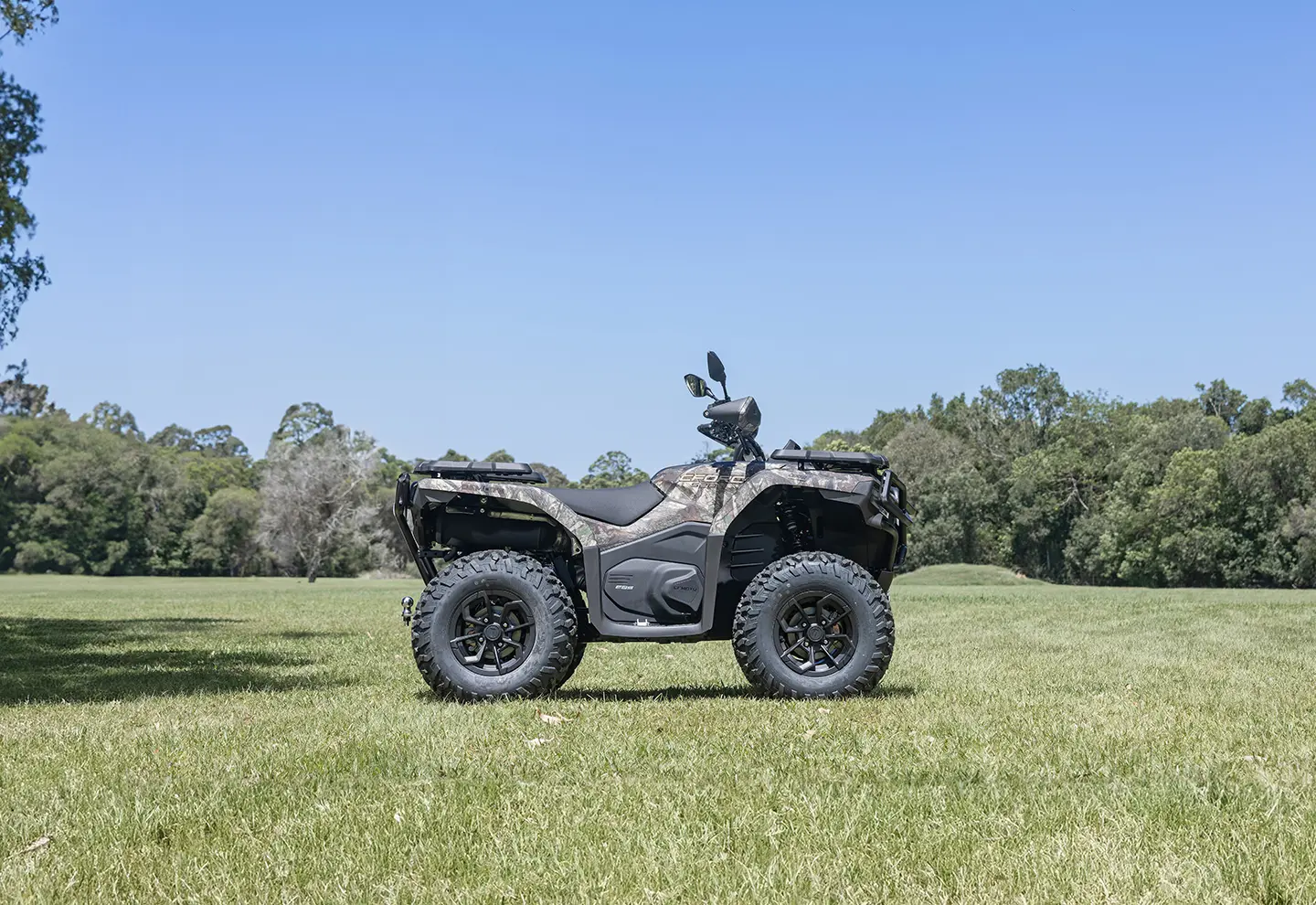

The CFORCE 520 EPS HUNT stands out with a range of purpose-driven enhancements specifically designed to meet the demands of outdoor enthusiasts and hunters alike, including front and rear steel protection bars, rugged HPDE A-Arm guards, and an exclusive Camo colour scheme.

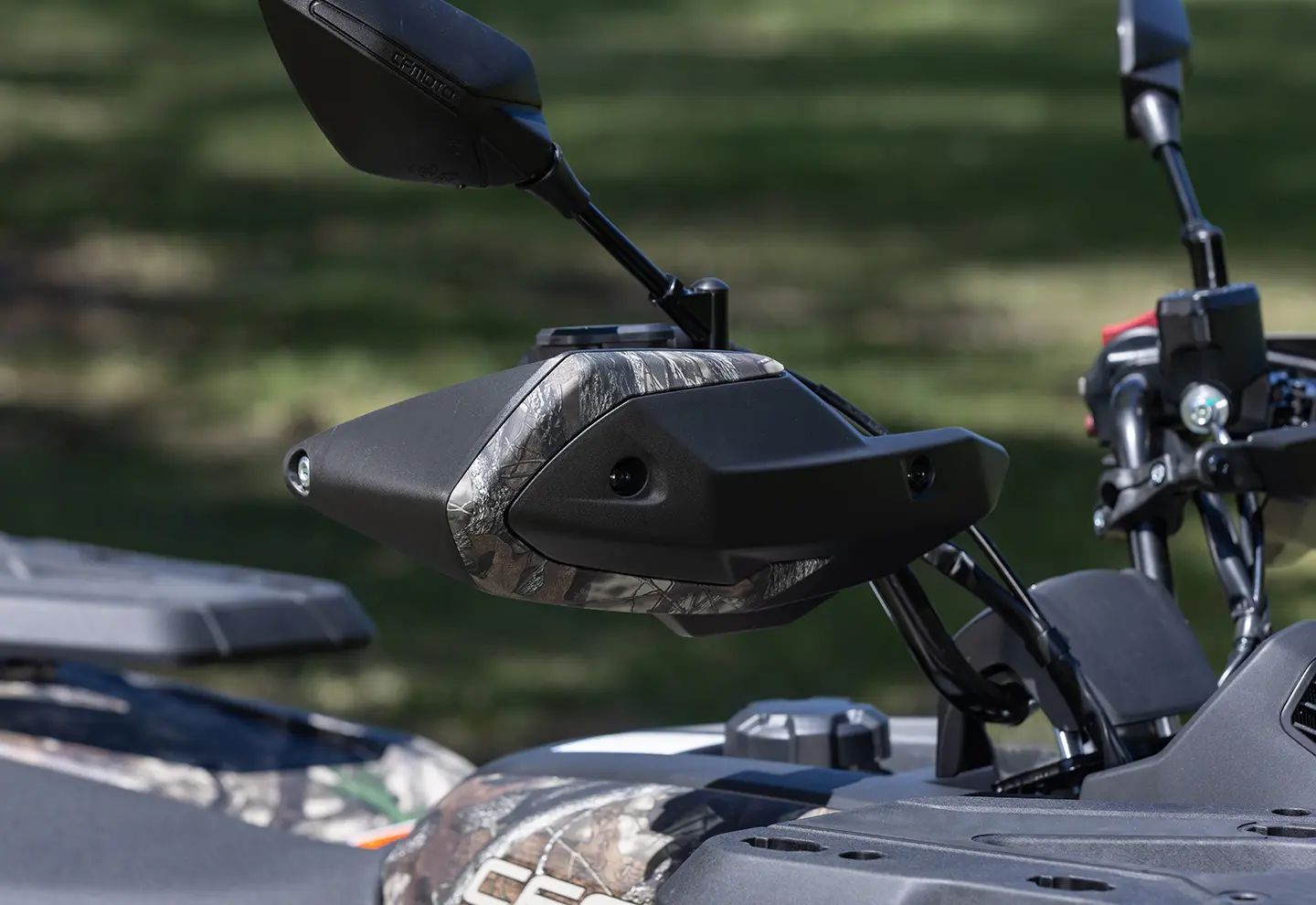

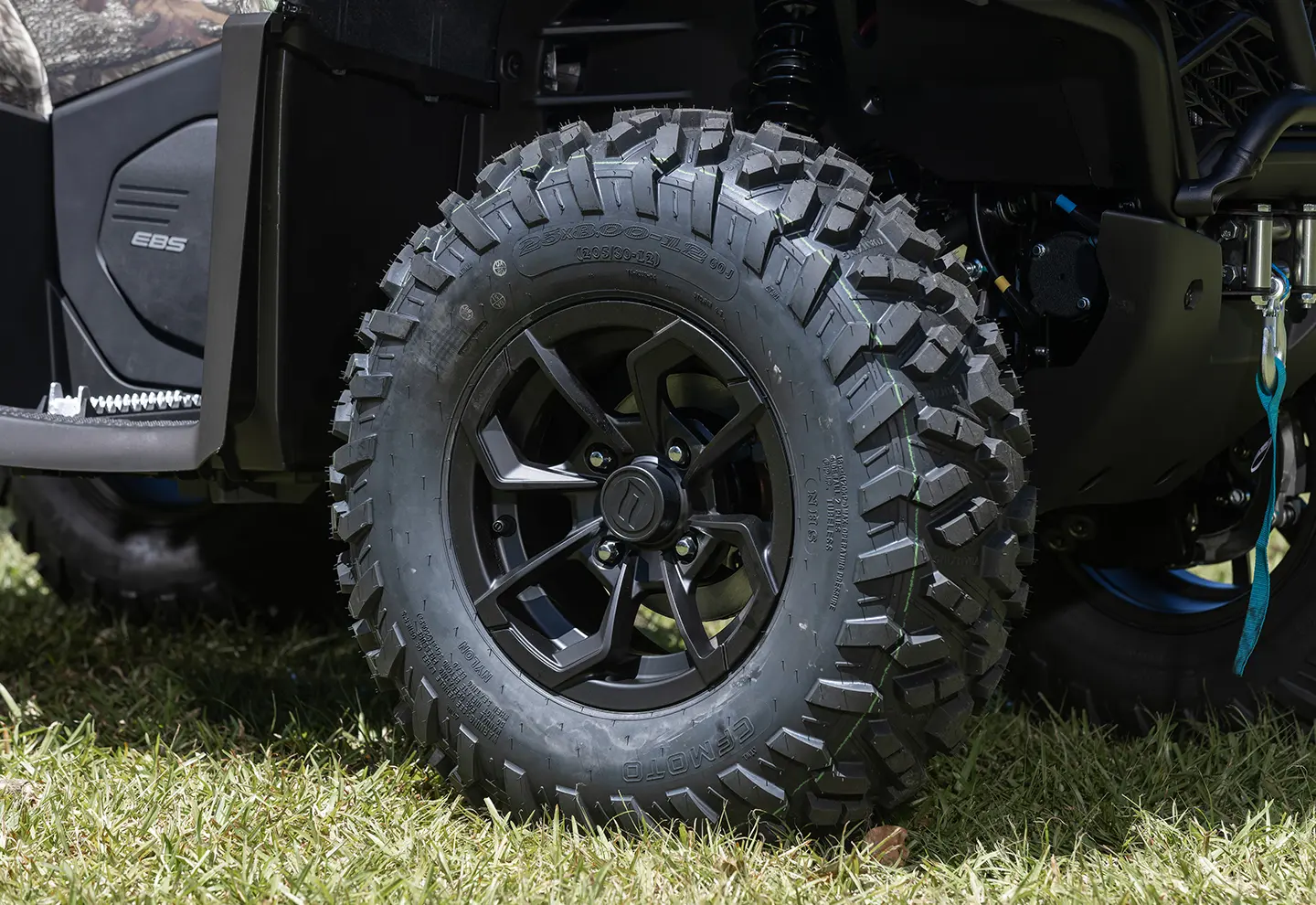

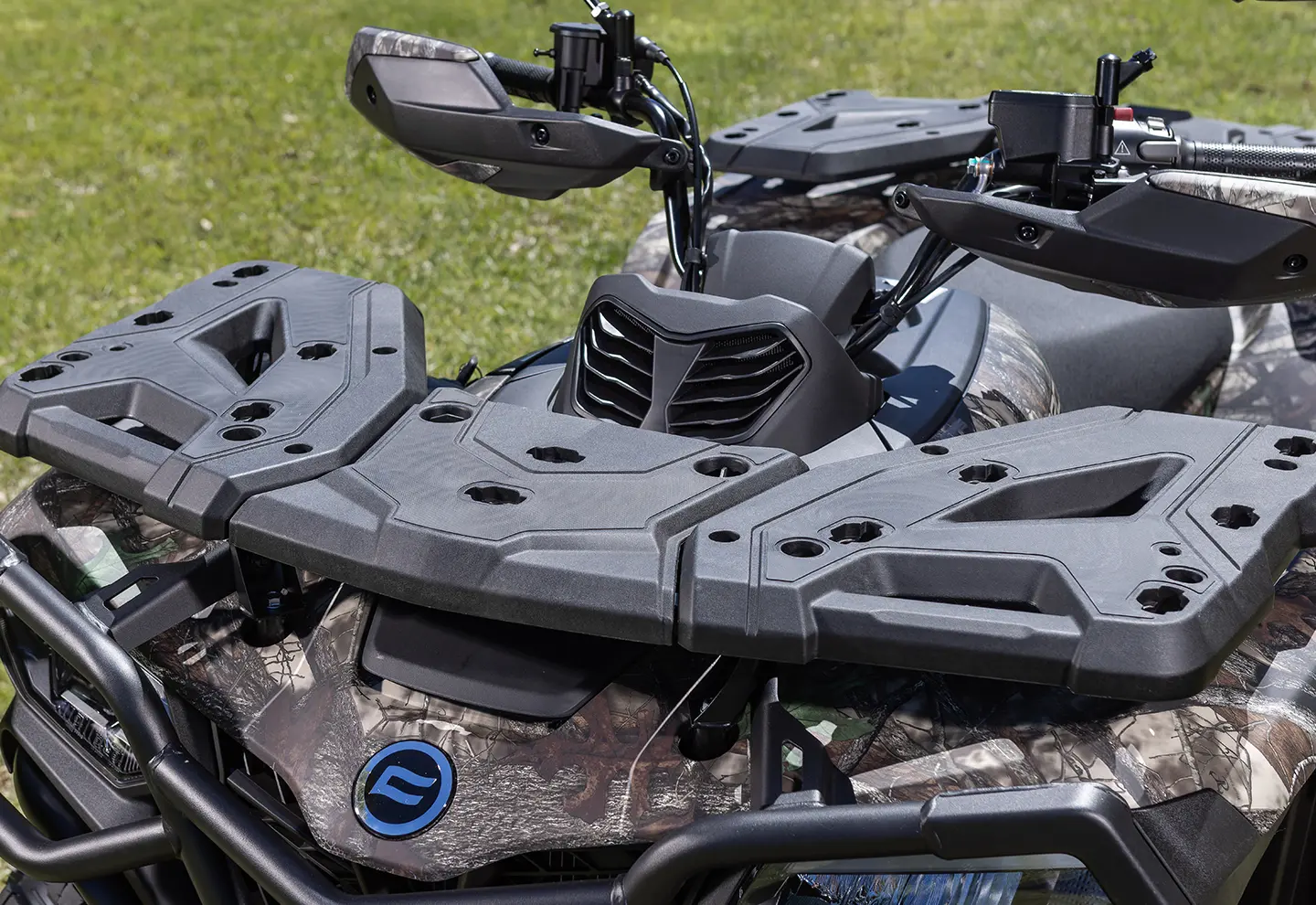

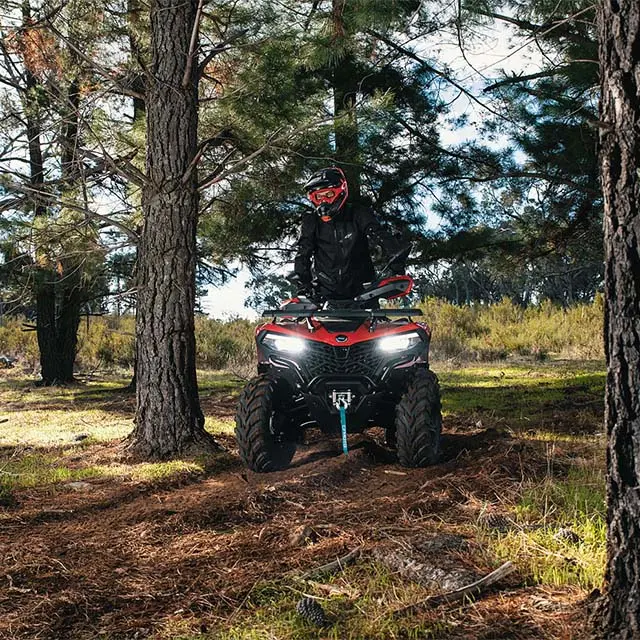

The CFORCE 520's work-ready attitude starts with the 34hp, 495cc, fuel-injected, four-stroke single-cylinder engine ‐ perfect for the farm ‐ with 2WD/4WD and a locking front differential. Other premium features: Force Red livery, alloy wheels, handguards, LED lights, five-inch LCD dash with Bluetooth connectivity, 2500lb winch, plastic racks and 25-inch tyres.
CFORCE 520 EPS model displayed.

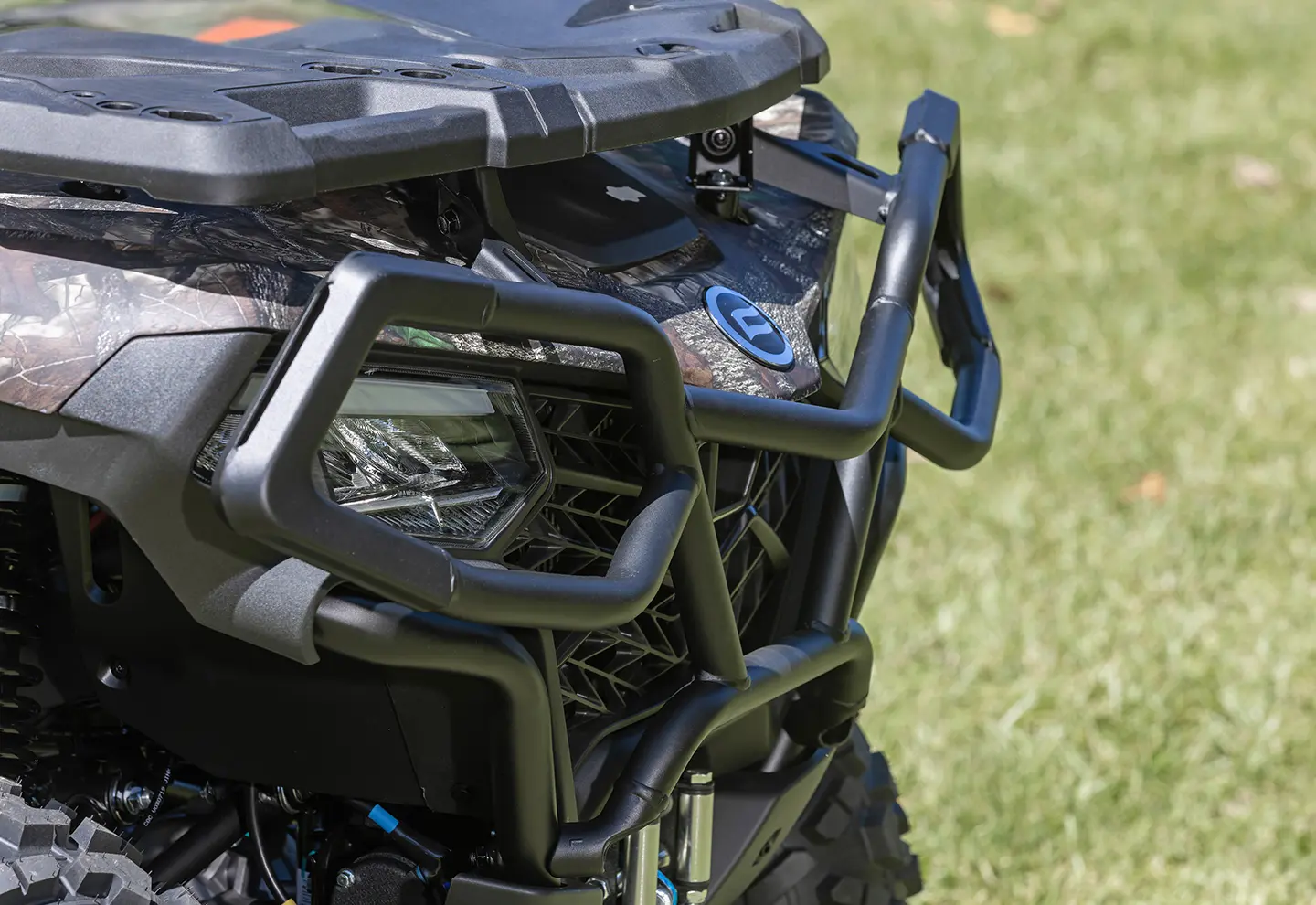

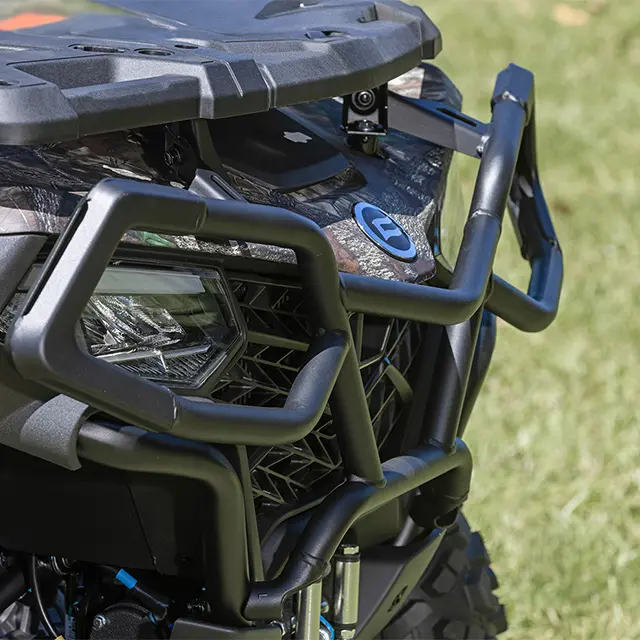

ADDED PROTECTION
Crafted from steel tubes and finished with durable black powder-coating, the front and rear protection bars are designed and engineered to perfectly harmonise with the ATV's contours. These bars are not only built to safeguard the ATV but are also suitable for use within cattle herds, offering protection to the vehicle and livestock.

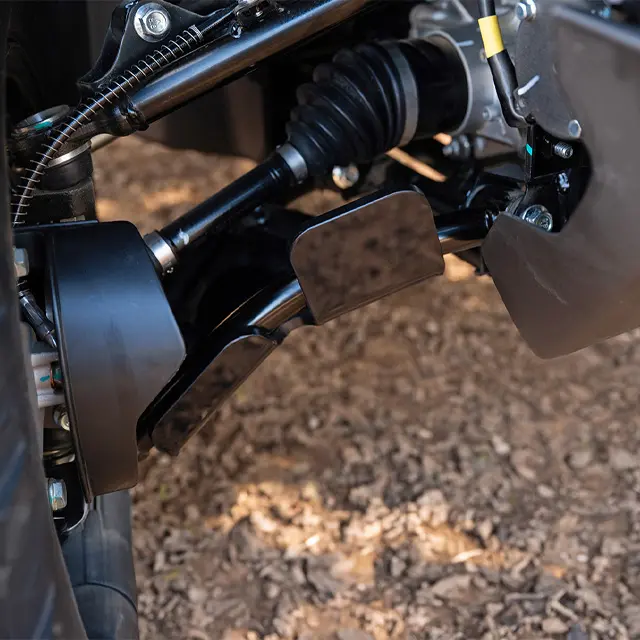

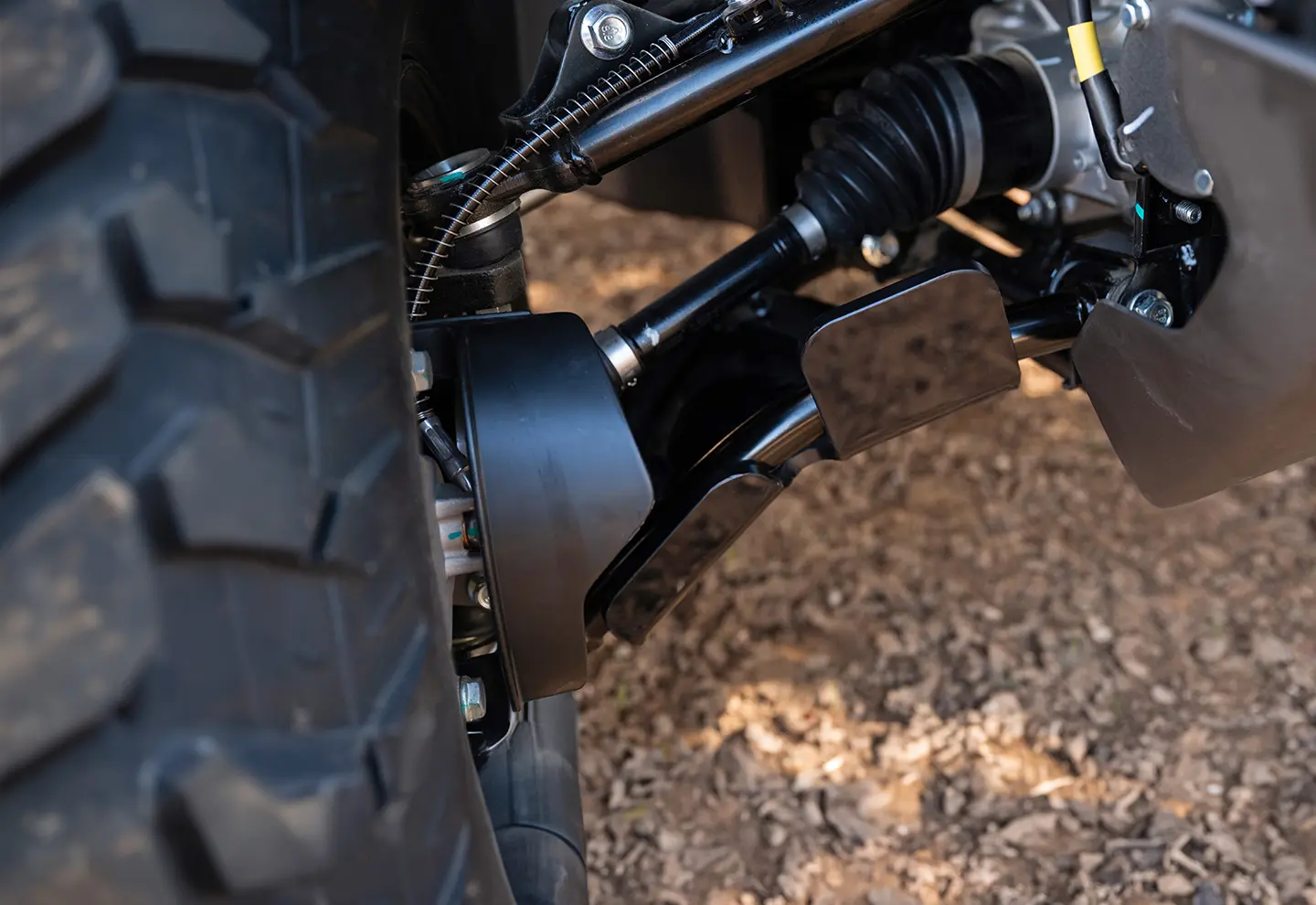

HDPE GUARDS
Precision-cut and constructed with high-strength materials, the A-Arm guards provide essential protection for the ATV's CV joints and rubber boots, ensuring your vehicle's longevity in the harshest terrains.

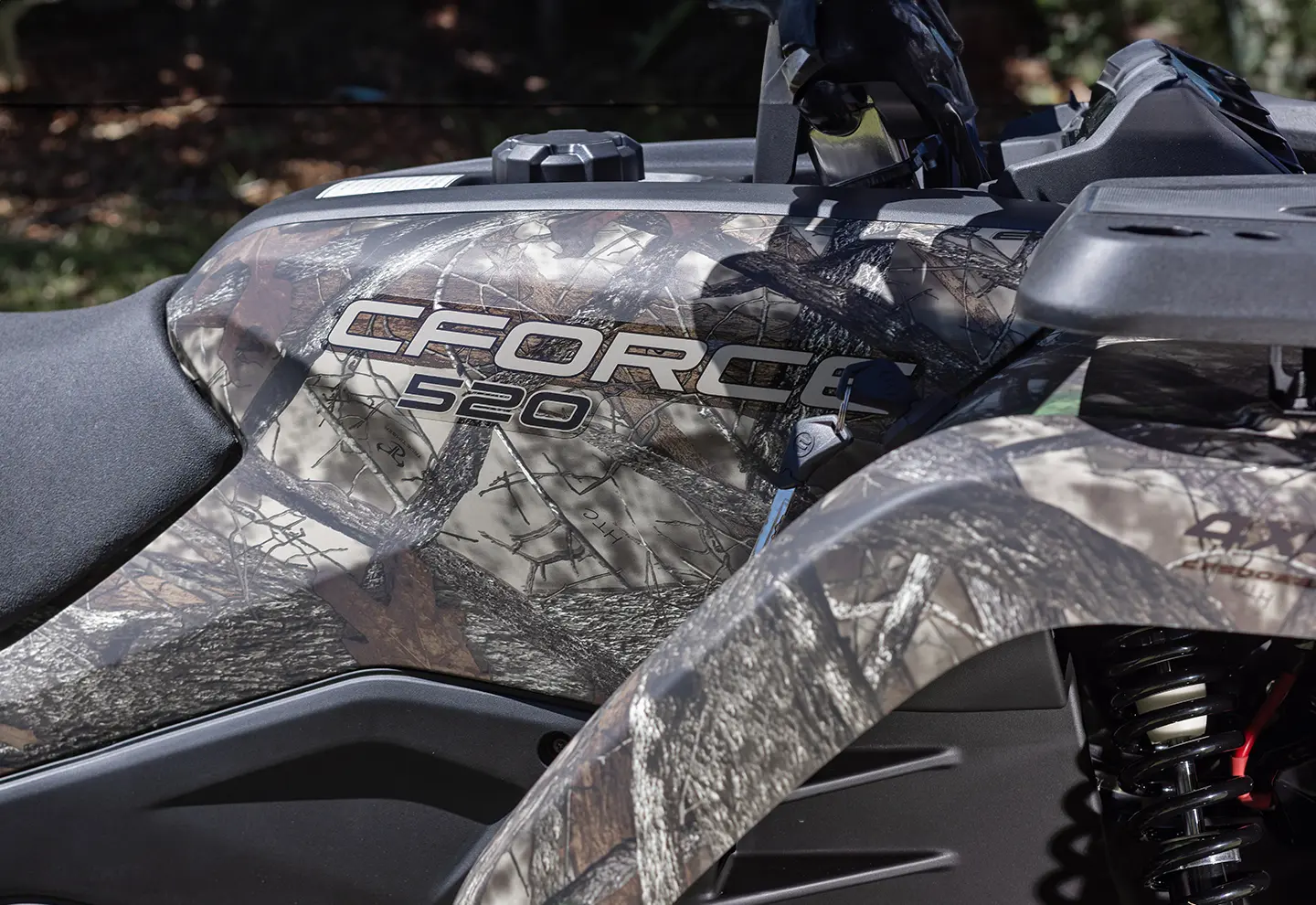

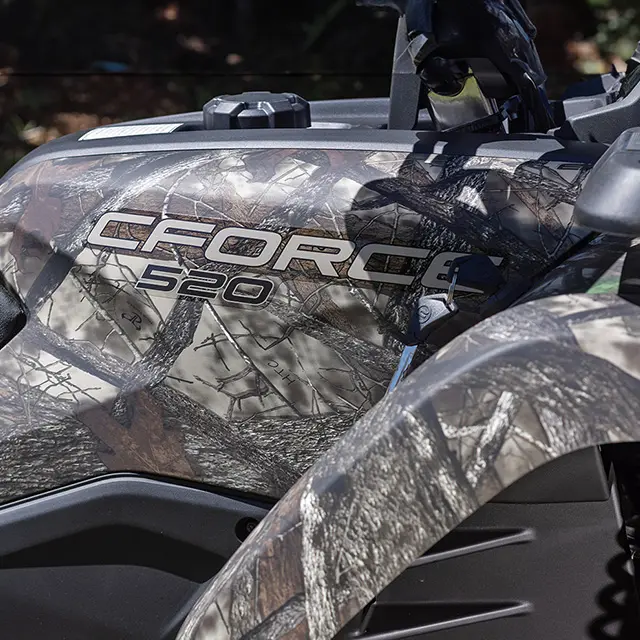

CAMO
The distinctive matte camo livery of the CFORCE 520 EPS HUNT allows it to blend into a wide range of environments seamlessly. This feature appeals to hunters and outdoor enthusiasts, providing the stealth and style needed for a successful outing.

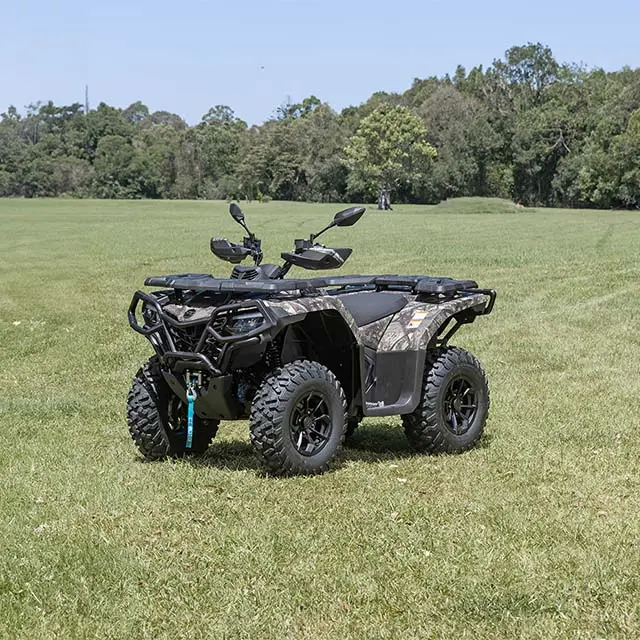

NUMBERS GAME
CFMOTO has left no stone unturned with the new CFORCE 520, and the results are compelling:
Stronger than ever with a 612kg towing capacity;
25 per cent tighter turning radius, now down to 5.6 metres one-up;
50 per cent more front and rear rack loading capacity;
30 per cent stronger and 10 per cent lighter frame;
26 per cent more suspension travel;
21 per cent more fuel capacity;
25 per cent less leg area temperature; and
Reduced vibration through handlebar, footrests and seat.
CFORCE 520 EPS model displayed.

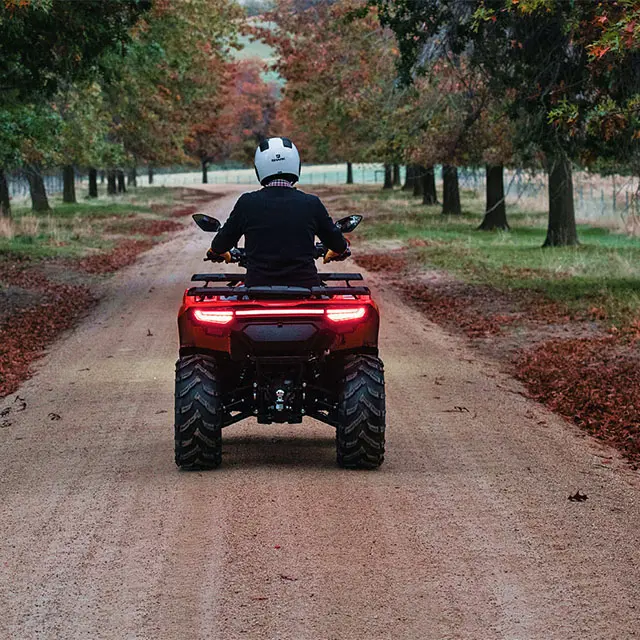

NEW ATV LEGISLATION
Mojo Motorcycles, the Australian importer of CFMOTO, has introduced an updated range of quad bikes to meet stage two requirements of the Consumer Goods (Quad Bike) Safety Standard. If the model is advertised with the 'Quad Bike Safety Standard Compliant' logo, it is compliant with the requirements of stage two and will be supplied with a Quadbar OPD. The price shown on this model page is the ride away price for this quad bike fitted with a Quadbar OPD. The Quadbar OPD is installed by your CFMOTO dealer during pre-delivery. For more information on Quadbar OPDs, visit www.quadbar.com.
Overseas model shown without Quadbar OPD installed. For more information on the new ATV legislation, head to our ATV legislation page in the menu or speak to your local dealer.
CFORCE 520 EPS model displayed.

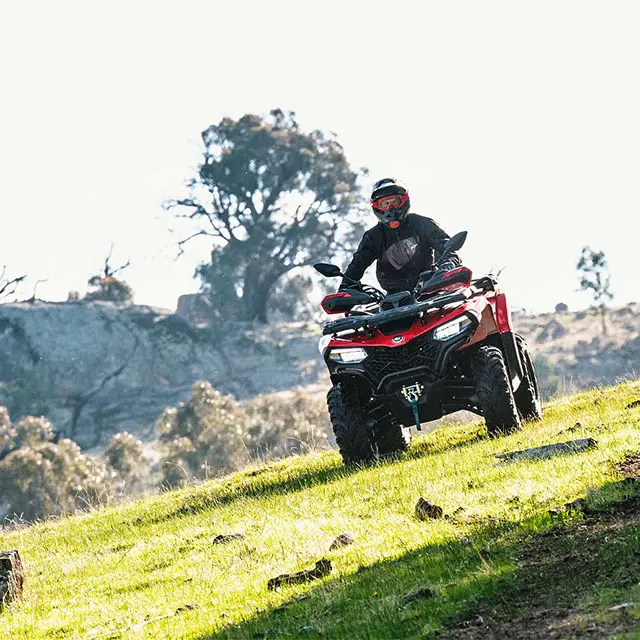

TILT ANGLE
To comply with stage two requirements of the Consumer Goods Quad Bike Safety Standard all CFMOTO quad bikes have been tilt angle tested. The minimum standard to pass the lateral stability tilt angle test is 28.81 degrees. The CFORCE 520 EPS (MY23) exceeds the minimum lateral stability tilt angle test with a result of 30.3 degrees.
CFORCE 520 EPS model displayed.
SUPPORT YOU CAN TRUST
Trusted by more than 30,000 Aussie Farmers, CFMOTO is a brand you can rely on. Backed by a two-year warranty on all ATV and UTV models and supported by an 80-plus national dealer network to keep you going 24/7.
The CFORCE 520 EPS HUNT stands out with a range of purpose-driven enhancements specifically designed to meet the demands of outdoor enthusiasts and hunters alike, including front and rear steel protection bars, rugged HPDE A-Arm guards, and an exclusive Camo colour scheme.
*Overseas model without Quadbar OPD installed.
content_description2
Engine & Transmission;Suspension, Brakes & Tyres;Dimensions & Load;Highlights#####Engine type|Four-stroke single-cylinder;Displacement|495cc;Maximum power|38hp (28.3kW) at 7,000rpm;Maximum torque|39Nm at 5,750rpm;Fuel system|BOSCH EFI;Transmission|CVT with engine braking;Drive|H-L-N-R-Park;4WD|2WD/4WD with locking front differential;Rear differential|Fixed;Steering|Power#####Suspension|Double A-Arm, independent;Brakes|Hydraulic disc brakes;Wheels|12-inch alloy;Tyres|25-inch 6-ply CST#####L x W x H|2,186 x 1,125 x 1,162mm;Wheelbase|1,260mm;Ground clearance|262mm;Wet weight|351kg;Towing capacity|612kg;Carrying capacity|30kg front/60kg rear;Payload capacity|240kg;Person|One;Fuel capacity|17lt#####HUNT Protector bars|Both front and rear;HUNT HDPE A-arm guards|Yes;HUNT Camo colour scheme|Yes;Power steering|Yes;Alloy wheels|Yes;25 inch tyres|Yes;Premium carrier racks|Yes;LED headlights|Yes;5-inch LCD display|Yes;Handguards|Yes;Winch|2,500lb electric winch;Colour|Camo;Warranty|Two years;Tow pack, horn, lights and mirrors|Yes
